File Detail parts/u767c03.dat

Download Download zip file View patterns/composites/shortcuts

Unofficial File parts/u767c03.dat

Part Attributes: Base Part: u767.dat

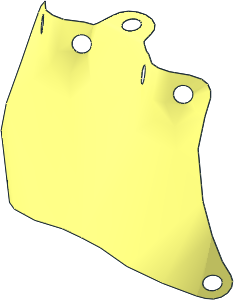

Sail 12 x 10 Trapezoidal (Formed Shape 3)

File Header:

0 Sail 12 x 10 Trapezoidal (Formed Shape 3)
0 Name: u767c03.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Placement on mast:
0 !HELP 1 25 58 20 -19 0 0 1 0 -1 0 1 0 0 3849.dat
0 !HELP 1 25 0 362 20 1 0 0 0 1 0 0 0 1 2538d.dat
0 !HELP 1 25 0 146 -22 1 0 0 0 -1 0 0 0 -1 4623.dat
0 !HELP 1 25 -10 154 -22 0 0 -1 0 -1 0 -1 0 0 2555.dat
0 !HELP 1 25 -98 160 -22 0 1 0 0 0 -1 -1 0 0 4497.dat
0 !HELP 1 25 10 154 -22 0 0 1 0 -1 0 1 0 0 2555.dat
0 !HELP 1 25 98 160 -22 0 -1 0 0 0 1 -1 0 0 4497.dat

0 BFC CERTIFY CCW

0 !CATEGORY Sheet Fabric
0 !KEYWORDS set 6277

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u767c03s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u767c03s01.dat
0 BFC INVERTNEXT
1 16 0 0 .3 1 0 0 0 1 0 0 0 1 s\u767c03s01.dat
0 BFC INVERTNEXT
1 16 0 0 .3 -1 0 0 0 1 0 0 0 1 s\u767c03s01.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u767c03s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u767c03s02.dat

Status:

Awaiting Admin Review (CCN)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/u767c03s01.dat (Awaiting Admin Review)
parts/s/u767c03s02.dat (Needs More Votes)

Current Votes:

User	Vote
Holly-Wood	Certify
RainbowDolphin	Certify

Official parents and subparts

Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2022-10-30 15:35:02

Takeshi Takahashi [RainbowDolphin]

posted a vote of Hold.

2022-12-14 12:50:01

Sorry, but the top section (stitched by floating 3849) is inverted.
http://peeron.com/scans/6277-1/8/

Philippe Hurbain [Philo]

made the following comment.

2022-12-14 18:00:02

Aarghl, indeed!

Philippe Hurbain [Philo]

made the following comment.

2022-12-17 09:05:01

Problem corrected in subparts!

Takeshi Takahashi [RainbowDolphin]

made the following comment.

2022-12-17 10:10:01

Thanks, I'll check it.

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2022-12-17 10:55:01

Fit check is OK, with 2538d instead of 2538b

[PTadmin]

edited the part header.

2022-12-17 12:45:01

Philippe Hurbain [Philo]

made the following comment.

2022-12-17 12:45:01

Thanks for the reminder, corrected !help to use 2538d.

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2025-04-22 11:15:59

* 1 25 58 22.5 -10.4 0 0 1 0 -1 0 1 0 0 3849.dat

in HELP misplaced (or I'm missing something)

Willy Tschager [Holly-Wood]

edited the part header.

2025-04-22 11:24:23

Header Edits

description:
Sail 12 x 10 Trapezoidal (Formed Shape 3)
to
Sheet Fabric 12 x 10 Trapezoidal Sail (Formed Shape 3)

Philippe Hurbain [Philo]

edited the part header.

2025-04-22 11:28:04

Header Edits

help:
0 !HELP Placement on mast: 0 !HELP 1 25 58 22.5 -10.4 0 0 1 0 -1 0 1 0 0 3849.dat 0 !HELP 1 25 0 362 20 1 0 0 0 1 0 0 0 1 2538d.dat 0 !HELP 1 25 0 146 -22 1 0 0 0 -1 0 0 0 -1 4623.dat 0 !HELP 1 25 -10 154 -22 0 0 -1 0 -1 0 -1 0 0 2555.dat 0 !HELP 1 25 -98 160 -22 0 1 0 0 0 -1 -1 0 0 4497.dat 0 !HELP 1 25 10 154 -22 0 0 1 0 -1 0 1 0 0 2555.dat 0 !HELP 1 25 98 160 -22 0 -1 0 0 0 1 -1 0 0 4497.dat
to
0 !HELP Placement on mast: 0 !HELP 1 25 58 20 -19 0 0 1 0 -1 0 1 0 0 3849.dat 0 !HELP 1 25 0 362 20 1 0 0 0 1 0 0 0 1 2538d.dat 0 !HELP 1 25 0 146 -22 1 0 0 0 -1 0 0 0 -1 4623.dat 0 !HELP 1 25 -10 154 -22 0 0 -1 0 -1 0 -1 0 0 2555.dat 0 !HELP 1 25 -98 160 -22 0 1 0 0 0 -1 -1 0 0 4497.dat 0 !HELP 1 25 10 154 -22 0 0 1 0 -1 0 1 0 0 2555.dat 0 !HELP 1 25 98 160 -22 0 -1 0 0 0 1 -1 0 0 4497.dat

Comment:
Well spotted!
Corrected 3849 position in help

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-04-22 12:34:27

Willy Tschager [Holly-Wood]

edited the part header.

2025-04-25 06:23:16

Header Edits

description:
Sheet Fabric 12 x 10 Trapezoidal Sail (Formed Shape 3)
to
Sail 12 x 10 Trapezoidal (Formed Shape 3)
