Unofficial File parts/u8002d.dat
Part Attributes:
File Header:

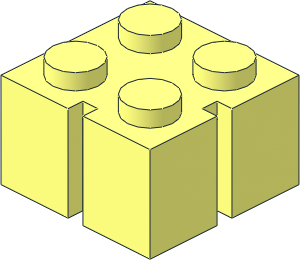

0 Mursten Brick 2 x 2 with 2 Adjacent Slots
0 Name: u8002d.dat
0 Author: J.C. Tchang [tchang]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Brick
0 !KEYWORDS Automatic Binding Brick, BrickLink bslot02b, Lego Mursten
0 !KEYWORDS Rebrickable 3003e
0 !HISTORY 2012-08-09 [PTadmin] Official Update 2012-02
0 !HISTORY 2021-07-27 [MagFors] Studs without logo
0 !HISTORY 2025-11-11 [MagFors] removed overlap
Show contents
4 16 -20 24 20 -16 24 16 -16 24 -16 -20 24 -20
4 16 20 24 20 16 24 16 -16 24 16 -20 24 20
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug26-2x2.dat
0 BFC INVERTNEXT
1 16 0 14 0 0 0 -16 0 -10 0 16 0 0 box3-3.dat
1 16 0 12 0 0 -20 0 -12 0 0 0 0 20 box2-5.dat
4 16 20 0 2 20 0 20 -20 0 20 16 0 2
4 16 -2 0 -20 -2 0 -16 -20 0 20 -20 0 -20
4 16 20 0 -2 16 0 -2 -2 0 -16 2 0 -16
4 16 16 0 -2 16 0 2 -20 0 20 -2 0 -16
4 16 2 0 -20 20 0 -20 20 0 -2 2 0 -16
0 // removed slot primitives
4 16 20 24 -20 16 24 -16 16 24 -2 20 24 -2
4 16 20 24 2 16 24 2 16 24 16 20 24 20
1 16 16 14 9 0 1 0 10 0 0 0 0 -7 rect1.dat
1 16 16 2 0 0 -1 0 -2 0 0 0 0 -2 rect1.dat
1 16 18 12 -2 2 0 0 0 0 12 0 -1 0 rect.dat
1 16 18 12 2 -2 0 0 0 0 12 0 1 0 rect.dat
1 16 20 12 11 0 -1 0 0 0 -12 9 0 0 rect2p.dat
1 16 11 12 -11 0 9 0 -12 0 0 0 0 -9 box2-7.dat
0 BFC INVERTNEXT
1 16 9 14 -9 0 7 0 10 0 0 0 0 -7 box2-9.dat
4 16 2 24 -16 16 24 -16 20 24 -20 2 24 -20
4 16 -16 24 -16 -2 24 -16 -2 24 -20 -20 24 -20
1 16 -9 14 -16 0 0 7 10 0 0 0 -1 0 rect1.dat
1 16 0 2 -16 0 0 2 -2 0 0 0 1 0 rect1.dat
1 16 2 12 -18 0 1 0 0 0 12 -2 0 0 rect.dat
1 16 -2 12 -18 0 -1 0 0 0 12 2 0 0 rect.dat
1 16 -11 12 -20 -9 0 0 0 0 -12 0 1 0 rect2p.dat
Status:
Awaiting Admin Review (CCF)
Current Votes:
| User | Vote |
|---|---|
| Blechtaler | Certify |
| WUIt | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
2021-08-02 10:50:01
2023-12-13 19:42:36
Bump.
Should we do something about the overlapping and obvious T-junctions?
I could rework the slotm primitive and adapt all the bricks while they still are on the PT.
Should we do something about the overlapping and obvious T-junctions?
I could rework the slotm primitive and adapt all the bricks while they still are on the PT.
I see no problem with this part!
2025-11-11 10:20:23
IMO, the primitive should be modified to prevent unnecessary overlap.
2025-11-11 14:25:30
The prim could be this:
4 16 -20 24 -20 -16 24 -16 -2 24 -16 -2 24 -20
4 16 2 24 -20 2 24 -16 16 24 -16 20 24 -20
1 16 -9 14 -16 0 0 7 10 0 0 0 -1 0 rect2a.dat
1 16 9 14 -16 0 0 -7 10 0 0 0 -1 0 rect2a.dat
1 16 0 2 -16 -2 0 0 0 0 -2 0 1 0 rect3.dat
1 16 -2 24 -20 0 0 -18 0 -24 0 4 0 0 tri3a4.dat
1 16 2 24 -20 0 0 18 0 -24 0 4 0 0 tri3a4.dat
4 16 -20 24 -20 -16 24 -16 -2 24 -16 -2 24 -20
4 16 2 24 -20 2 24 -16 16 24 -16 20 24 -20
1 16 -9 14 -16 0 0 7 10 0 0 0 -1 0 rect2a.dat
1 16 9 14 -16 0 0 -7 10 0 0 0 -1 0 rect2a.dat
1 16 0 2 -16 -2 0 0 0 0 -2 0 1 0 rect3.dat
1 16 -2 24 -20 0 0 -18 0 -24 0 4 0 0 tri3a4.dat
1 16 2 24 -20 0 0 18 0 -24 0 4 0 0 tri3a4.dat
2025-11-11 16:55:33
should the "with 2 Slots Right" get changed to "with 2 Slots Corner" or similar?
(Right/Left is hard to differentiate here because you can just rotate the part)
(Right/Left is hard to differentiate here because you can just rotate the part)
2025-11-11 17:49:54
much better!
2025-11-11 18:57:49
Creative Commons Attribution License information
This part is copyright © J.C. Tchang
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Magnus Forsberg,
OK like this, or fix the primitive?
