Official File parts/u8009c.dat
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink

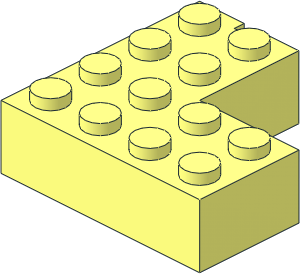

Mursten Brick  4 x  4 Corner with 1 Slot Left
File Header:
0 Mursten Brick 4 x 4 Corner with 1 Slot Left 0 Name: u8009c.dat 0 Author: N. W. Perry [Plastikean] 0 !LDRAW_ORG Part UPDATE 2024-11 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !CATEGORY Brick 0 !KEYWORDS Automatic Binding Brick, BrickLink bslot16L, Lego Mursten 0 !KEYWORDS Rebrickable upn0046b 0 !HISTORY 2022-03-27 [MagFors] Studs without logo 0 !HISTORY 2024-12-30 [OrionP] Official Update 2024-11
Show contents
4 16 -16 24 56 -16 24 -16 -20 24 -20 -20 24 60 4 16 -16 24 -16 56 24 -16 60 24 -20 -20 24 -20 4 16 56 24 -16 56 24 16 60 24 20 60 24 -20 4 16 56 24 16 16 24 16 20 24 20 60 24 20 4 16 16 24 16 16 24 56 20 24 60 20 24 20 1 16 36 14 36 0 0 -20 -10 0 0 0 -20 0 box2-5.dat 0 BFC INVERTNEXT 1 16 20 14 20 0 0 -36 -10 0 0 0 -36 0 box2-5.dat 1 16 56 14 0 0 1 0 0 0 -10 16 0 0 rect.dat 4 16 -16 4 -16 16 4 16 56 4 16 56 4 -16 4 16 16 4 16 -16 4 -16 -16 4 56 16 4 56 1 16 20 12 20 0 0 -40 -12 0 0 0 -40 0 box2-5.dat 1 16 40 12 0 0 0 20 -12 0 0 0 20 0 box2-7.dat 1 16 20 12 40 0 -1 0 0 0 -12 20 0 0 rect.dat 4 16 20 0 20 -20 0 -20 60 0 -20 60 0 20 4 16 -20 0 -20 20 0 20 20 0 56 -20 0 56 2 24 16 4 56 -16 4 56 1 16 0 0 40 -1 0 0 0 1 0 0 0 -1 slotm.dat 1 16 0 0 40 1 0 0 0 1 0 0 0 1 stug26-2x2.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug26-2x2.dat 1 16 40 0 0 1 0 0 0 1 0 0 0 1 stug26-2x2.dat
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
N. W. Perry [Plastikean]
Part Reviewer
initially submitted the part.
2021-06-06 14:00:01
Philippe Hurbain [Philo]
Senior Part Reviewer
posted a vote of Certify.
2021-06-24 15:50:02
Not sure "left" or "right" are the best qualifiers, but I have nothing better to offer...
N. W. Perry [Plastikean]
Part Reviewer
made the following comment.
2021-06-27 12:50:01
Agreed. This was done to match nomenclature of existing slotted parts, but it is fairly arbitrary.
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2021-07-26 22:20:01
Using only rect.dat primitives creates lots of duplicated edge lines.
Obvious T-junctions that could be avoided.

Is it correct to use the regular stud.dat here? It will generate a logo on studs.
Maybe use stud26 instead?
N. W. Perry [Plastikean]
Part Reviewer
made the following comment.
2021-07-27 06:35:01
Slotted bricks such as these would not have had stud logos, no. And along with the geometry concerns, it would seem in order to revise the whole range of Mursten-era parts, as I did not attempt to make any improvements to those.
Magnus Forsberg [MagFors]
Part Library Admin
submitted a new version of the part.
2022-03-27 08:25:01
Studs without logo
Removed T-junctions
Made CCW

Existing certification-votes were deleted.
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Certify.
2022-04-21 19:35:01
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2024-12-27 10:48:06
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2024-12-28 22:32:17
Orion Pobursky [OrionP]
Part Library Admin
2024-12-30 06:25:51
Release 2024-11
