File Detail parts/2552.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/2552.dat

Part Attributes:

External Sites:

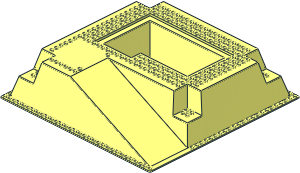

Baseplate 32 x 32 Raised with Ramp and Pit

File Header:

0 Baseplate 32 x 32 Raised with Ramp and Pit
0 Name: 2552.dat
0 Author: Jonathan Wilson [jonwil]
0 !LDRAW_ORG Part UPDATE 2011-01
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 1999-12-31 [PTadmin] Official Update 1999-06
0 !HISTORY 2000-05-07 [PTadmin] Official Update 2000-01
0 !HISTORY 2002-06-11 [WilliamH] Added missing base edge; fixed overlapping quads;
0 !HISTORY 2002-06-11 [WilliamH] combined/reduced polygons; removed duplicate lines;
0 !HISTORY 2002-06-11 [WilliamH] corrected bad vertex sequences and 0 matrix rows;
0 !HISTORY 2002-06-11 [WilliamH] created new undertray to reflect above changes
0 !HISTORY 2002-06-11 [WilliamH] fixed corner insets to better match part;
0 !HISTORY 2002-06-11 [WilliamH] removed redundant line segments;
0 !HISTORY 2002-06-11 [WilliamH] Set corner 1-4disc/1-4edge/1-4cyli parts at 4 offset (not 5);
0 !HISTORY 2002-08-18 [PTadmin] Official Update 2002-04
0 !HISTORY 2007-05-14 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2011-02-07 [Philo] BFCed, used stugs
0 !HISTORY 2011-05-14 [Steffen] used more stugs
0 !HISTORY 2011-06-27 [Darats] Added subpart for patterns
0 !HISTORY 2011-07-25 [PTadmin] Official Update 2011-01

Show contents

1 16 -210 0 300 1 0 0 0 1 0 0 0 1 stug-1x12.dat
1 16 -210 0 -320 1 0 0 0 1 0 0 0 1 stug-1x12.dat
1 16 -320 0 -190 1 0 0 0 1 0 0 0 1 stug-12x1.dat
1 16 -320 0 50 1 0 0 0 1 0 0 0 1 stug-12x1.dat
1 16 300 0 170 1 0 0 0 1 0 0 0 1 stug-12x1.dat
1 16 300 0 -50 1 0 0 0 1 0 0 0 1 stug-10x1.dat
1 16 -320 0 230 1 0 0 0 1 0 0 0 1 stug-6x1.dat
1 16 30 0 -320 1 0 0 0 1 0 0 0 1 stug-1x12.dat
1 16 230 0 -320 1 0 0 0 1 0 0 0 1 stug-1x8.dat
1 16 30 0 300 1 0 0 0 1 0 0 0 1 stug-1x12.dat
1 16 230 0 300 1 0 0 0 1 0 0 0 1 stug-1x8.dat
1 16 -90 -144 220 1 0 0 0 1 0 0 0 1 stug-1x12.dat
1 16 -90 -144 200 1 0 0 0 1 0 0 0 1 stug-1x12.dat
1 16 -130 -144 180 1 0 0 0 1 0 0 0 1 stug-1x12.dat
1 16 -140 -144 -80 1 0 0 0 1 0 0 0 1 stug-1x11.dat
1 16 80 -144 -80 1 0 0 0 1 0 0 0 1 stug-1x11.dat
1 16 80 -144 -60 1 0 0 0 1 0 0 0 1 stug-1x11.dat
1 16 70 -144 -40 1 0 0 0 1 0 0 0 1 stug-1x10.dat
1 16 110 -144 180 1 0 0 0 1 0 0 0 1 stug-1x12.dat
1 16 110 -144 200 1 0 0 0 1 0 0 0 1 stug-1x8.dat
1 16 110 -144 220 1 0 0 0 1 0 0 0 1 stug-1x8.dat
1 16 -240 -144 50 1 0 0 0 1 0 0 0 1 stug-12x1.dat
1 16 -240 -144 -150 1 0 0 0 1 0 0 0 1 stug-6x1.dat
1 16 -220 -144 50 1 0 0 0 1 0 0 0 1 stug-12x1.dat
1 16 -200 -144 50 1 0 0 0 1 0 0 0 1 stug-12x1.dat
1 16 180 -144 60 1 0 0 0 1 0 0 0 1 stug-11x1.dat
1 16 200 -144 60 1 0 0 0 1 0 0 0 1 stug-11x1.dat
1 16 220 -144 60 1 0 0 0 1 0 0 0 1 stug-11x1.dat
1 16 -100 -144 -100 1 0 0 0 1 0 0 0 1 stud.dat
1 16 10 0 80 1 0 0 0 1 0 0 0 1 stug-1x10.dat
1 16 10 0 60 1 0 0 0 1 0 0 0 1 stug-1x10.dat
1 16 -120 0 40 1 0 0 0 1 0 0 0 1 stug-5x1.dat
1 16 -100 0 40 1 0 0 0 1 0 0 0 1 stug-5x1.dat
1 16 230 -72 230 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 -250 -72 230 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 230 -72 -90 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 -250 -72 -250 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 -150 -144 -240 1 0 0 0 1 0 0 0 1 stug-1x6.dat
1 16 -100 -144 -220 1 0 0 0 1 0 0 0 1 stud.dat
0 //
0 // Inside
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2552s01.dat
0 //
0 // Lower Front
4 16 -310 0 -310 -244 0 -310 -228 -72 -290 -290 -72 -290
4 16 -90 -144 -270 -212 -144 -270 -244 0 -310 290 0 -310
0 //
0 // Upper Front
4 16 -90 -144 -110 100 -72 -130 208 -72 -130 192 -144 -110
3 16 290 0 -150 270 -72 -130 100 -72 -130
0 //
0 // Right
4 16 270 -72 208 290 0 224 290 0 290 270 -72 270
4 16 250 -144 -52 290 0 -84 290 0 224 250 -144 192
4 16 270 -72 -130 290 0 -150 290 0 -84 270 -72 -68
0 //
0 // Back
4 16 -310 0 290 -290 -72 270 -228 -72 270 -244 0 290
4 16 224 0 290 -244 0 290 -212 -144 250 192 -144 250
4 16 290 0 290 224 0 290 208 -72 270 270 -72 270
0 //
0 // Left
4 16 -270 -144 192 -310 0 224 -310 0 -244 -270 -144 -212
4 16 -290 -72 -290 -290 -72 -228 -310 0 -244 -310 0 -310
4 16 -290 -72 270 -310 0 290 -310 0 224 -290 -72 208
0 //
0 // Ramp
4 16 290 0 -150 -90 -144 -110 -90 -144 -270 290 0 -310
0 //
0 // Top
4 16 -212 -144 -270 -90 -144 -270 -90 -144 -110 -212 -144 -110
4 16 -190 -144 -70 -190 -144 -110 170 -144 -110 170 -144 -70
4 16 -212 -144 250 -212 -144 -110 -190 -144 -110 -190 -144 250
4 16 170 -144 170 170 -144 250 -190 -144 250 -190 -144 170
4 16 170 -144 -110 192 -144 -110 192 -144 250 170 -144 250
4 16 170 -144 -70 170 -144 -30 -30 -144 -30 -30 -144 -70
4 16 250 -144 -52 250 -144 192 192 -144 192 192 -144 -52
4 16 -270 -144 192 -270 -144 -212 -212 -144 -212 -212 -144 192
0 //
0 // Pit
4 16 -130 0 110 -130 0 30 110 0 30 110 0 110
4 16 -130 0 -10 -90 0 -10 -90 0 30 -130 0 30
4 16 150 -136 150 110 0 110 110 0 30 150 -136 -10
4 16 -50 -136 -10 150 -136 -10 110 0 30 -90 0 30
4 16 -50 -136 -50 -50 -136 -10 -90 0 30 -90 0 -10
4 16 -170 -136 150 -130 0 110 110 0 110 150 -136 150
4 16 -170 -136 -50 -50 -136 -50 -90 0 -10 -130 0 -10
4 16 -170 -136 -50 -130 0 -10 -130 0 110 -170 -136 150
0 //
0 // Pit Top
4 16 -170 -136 -50 -170 -136 150 -190 -136 170 -190 -136 -70
4 16 -170 -136 150 150 -136 150 170 -136 170 -190 -136 170
4 16 -50 -136 -10 -50 -136 -50 -30 -136 -70 -30 -136 -30
4 16 -50 -136 -50 -170 -136 -50 -190 -136 -70 -30 -136 -70
4 16 150 -136 -10 -50 -136 -10 -30 -136 -30 170 -136 -30
4 16 150 -136 150 150 -136 -10 170 -136 -30 170 -136 170
0 //
0 // Pit Perimeter
4 16 -190 -144 -70 -30 -144 -70 -30 -136 -70 -190 -136 -70
4 16 -30 -144 -30 170 -144 -30 170 -136 -30 -30 -136 -30
4 16 -190 -136 -70 -190 -136 170 -190 -144 170 -190 -144 -70
4 16 -190 -144 170 -190 -136 170 170 -136 170 170 -144 170
4 16 -30 -136 -70 -30 -144 -70 -30 -144 -30 -30 -136 -30
4 16 170 -144 -30 170 -144 170 170 -136 170 170 -136 -30
0 //
0 // Front Right Corner
4 16 208 -72 -68 192 -144 -52 192 -144 -110 208 -72 -130
4 16 208 -72 -68 270 -72 -68 250 -144 -52 192 -144 -52
4 16 208 -72 -68 208 -72 -130 270 -72 -130 270 -72 -68
0 //
0 // Front Left Corner
4 16 -290 -72 -228 -228 -72 -228 -212 -144 -212 -270 -144 -212
4 16 -228 -72 -290 -212 -144 -270 -212 -144 -212 -228 -72 -228
4 16 -228 -72 -228 -290 -72 -228 -290 -72 -290 -228 -72 -290
0 //
0 // Back Right Corner
4 16 208 -72 208 270 -72 208 270 -72 270 208 -72 270
4 16 192 -144 192 250 -144 192 270 -72 208 208 -72 208
4 16 208 -72 270 192 -144 250 192 -144 192 208 -72 208
0 //
0 // Back Left Corner
4 16 -290 -72 208 -270 -144 192 -212 -144 192 -228 -72 208
4 16 -228 -72 270 -228 -72 208 -212 -144 192 -212 -144 250
4 16 -228 -72 208 -228 -72 270 -290 -72 270 -290 -72 208
0 //
0 // Bottom
4 16 306 0 306 306 0 310 -326 0 310 -326 0 306
4 16 -326 0 306 -330 0 306 -330 0 -326 -326 0 -326
4 16 -326 0 -326 -326 0 -330 306 0 -330 306 0 -326
4 16 306 0 -326 310 0 -326 310 0 306 306 0 306
4 16 -310 0 -310 -326 0 -326 306 0 -326 290 0 -310
4 16 290 0 -310 306 0 -326 306 0 306 290 0 290
4 16 290 0 290 306 0 306 -326 0 306 -310 0 290
4 16 -310 0 290 -326 0 306 -326 0 -326 -310 0 -310
1 16 306 0 306 4 0 0 0 1 0 0 0 4 1-4disc.dat
1 16 -326 0 306 -4 0 0 0 1 0 0 0 4 1-4disc.dat
1 16 -326 0 -326 -4 0 0 0 1 0 0 0 -4 1-4disc.dat
1 16 306 0 -326 4 0 0 0 1 0 0 0 -4 1-4disc.dat
0 //
0 // Bottom Perimeter
1 16 306 0 306 4 0 0 0 4 0 0 0 4 1-4cylo.dat
1 16 -10 2 310 -316 0 0 0 0 -2 0 -1 0 rect2p.dat
1 16 -326 0 306 -4 0 0 0 4 0 0 0 4 1-4cylo.dat
1 16 -330 2 -10 0 1 0 0 0 -2 -316 0 0 rect2p.dat
1 16 -326 0 -326 -4 0 0 0 4 0 0 0 -4 1-4cylo.dat
1 16 -10 2 -330 316 0 0 0 0 -2 0 1 0 rect2p.dat
1 16 306 0 -326 4 0 0 0 4 0 0 0 -4 1-4cylo.dat
1 16 310 2 -10 0 -1 0 0 0 2 -316 0 0 rect2p.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

None

Creative Commons Attribution License information

This part is copyright © Jonathan Wilson
Licensed under CC BY 2.0

Edits:
LDraw.org Parts Tracker, William Howard, Philippe Hurbain, Steffen, Damien Roux,
