File Detail parts/u9217.dat

Official File parts/u9217.dat

Part Attributes:

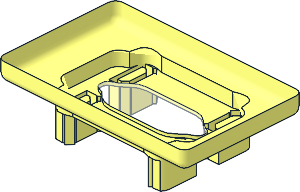

~Electric Hub Mario Body Base (Needs Work)

File Header:

0 ~Electric Hub Mario Body Base (Needs Work)
0 Name: u9217.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2023-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2022-06-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2022-06-03 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2023-11-19 [OrionP] Official Update 2023-06

Show contents

0 // Needs Work: No inside faces

1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\u9217s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\u9217s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9217s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9217s01.dat
3 16 -23.7 143.1 8.598 -18.5 143.1 0 -23.7 143.1 -8.598
2 24 -23.7 143.1 -8.598 -23.7 143.1 8.598
2 24 -23.7 138.25 8.598 -23.7 138.25 -8.598
4 16 -23.7 138.25 -8.598 -23.7 138.25 8.598 -23.7 143.1 8.598 -23.7 143.1 -8.598
4 16 -31.3 138.25 17.9 -23.7 138.25 8.598 -23.7 138.25 -8.598 -31.3 138.25 -19.9
1 16 -33.8 133.75 -1 0 1 0 -2 0 0 0 0 18.9 rect1.dat
1 16 -31.3 135.75 -19.9 -2.5 0 0 0 0 2.5 0 37.8 0 1-4cyli.dat
3 16 18.5 143.1 0 23.7 143.1 8.598 23.7 143.1 -8.598
2 24 23.7 143.1 -8.598 23.7 143.1 8.598
2 24 23.7 138.25 8.598 23.7 138.25 -8.598
4 16 23.7 143.1 8.598 23.7 138.25 8.598 23.7 138.25 -8.598 23.7 143.1 -8.598
4 16 23.7 138.25 -8.598 23.7 138.25 8.598 31.3 138.25 17.9 31.3 138.25 -19.9
1 16 33.8 133.75 -1 0 -1 0 -2 0 0 0 0 -18.9 rect1.dat
1 16 31.3 135.75 -19.9 2.5 0 0 0 0 2.5 0 37.8 0 1-4cyli.dat
2 24 8.811 143.1 -6.7 -8.811 143.1 -6.7
2 24 -8.811 142 -6.7 8.811 142 -6.7
4 16 -8.811 142 -6.7 8.811 142 -6.7 8.811 143.1 -6.7 -8.811 143.1 -6.7
4 16 -8.811 143.1 -6.7 8.811 143.1 -6.7 12.815 143.1 -16 -12.815 143.1 -16
1 16 0 140.675 -16 -12.815 0 0 0 0 2.425 0 1 0 rect2p.dat
4 16 -12.815 138.25 -16 12.815 138.25 -16 31.3 138.25 -19.9 -31.3 138.25 -19.9
1 16 0 133.75 -22.4 0 0 -31.3 -2 0 0 0 1 0 rect1.dat
1 16 31.3 135.75 -19.9 0 -62.6 0 0 0 2.5 -2.5 0 0 1-4cyli.dat
2 24 8.811 143.1 6.7 -8.811 143.1 6.7
2 24 -8.811 142 6.7 8.811 142 6.7
4 16 8.811 143.1 6.7 8.811 142 6.7 -8.811 142 6.7 -8.811 143.1 6.7
4 16 12.815 143.1 16 8.811 143.1 6.7 -8.811 143.1 6.7 -12.815 143.1 16
1 16 0 140.675 16 12.815 0 0 0 0 2.425 0 -1 0 rect.dat
4 16 31.3 138.25 17.9 12.815 138.25 16 -12.815 138.25 16 -31.3 138.25 17.9
1 16 0 133.75 20.4 0 0 31.3 -2 0 0 0 -1 0 rect1.dat
1 16 31.3 135.75 17.9 0 -62.6 0 0 0 2.5 2.5 0 0 1-4cyli.dat
4 47 18.5 142 0 8.811 142 -6.7 -8.811 142 -6.7 -18.5 142 0
4 47 18.5 142 0 -18.5 142 0 -8.811 142 6.7 8.811 142 6.7
5 24 -8.811 142 -6.7 -8.811 143.1 -6.7 -11.192 142 -6.25 8.811 142 -6.7
5 24 23.7 138.25 -8.598 23.7 143.1 -8.598 23.162 143.1 -9.929 23.7 143.1 8.598
5 24 23.7 143.1 8.598 23.7 138.25 8.598 23.162 143.1 9.929 23.7 138.25 -8.598
5 24 -23.7 138.25 8.598 -23.7 143.1 8.598 -23.7 143.1 -8.598 -23.162 143.1 9.929
5 24 8.811 142 -6.7 8.811 143.1 -6.7 11.192 142 -6.25 -8.811 143.1 -6.7
5 24 -23.7 138.25 -8.598 -23.7 143.1 -8.598 -23.162 143.1 -9.929 -23.7 138.25 8.598
5 24 18.5 143.1 0 18.5 142 0 18.435 143.1 .882 18.435 143.1 -.882
5 24 8.811 142 6.7 8.811 143.1 6.7 -8.811 142 6.7 11.192 142 6.25
5 24 -18.5 143.1 0 -18.5 142 0 -18.435 143.1 .882 -18.435 143.1 -.882
5 24 -8.811 142 6.7 -8.811 143.1 6.7 8.811 143.1 6.7 -11.192 142 6.25
1 16 -31.3 131.75 -19.9 -2.5 0 0 0 1 0 0 0 -2.5 1-4edge.dat
1 16 -31.3 131.75 -19.9 -2.5 0 0 0 4 0 0 0 -2.5 1-4cyli.dat
1 16 -31.3 135.75 -19.9 -2.5 0 0 0 2.5 0 0 0 -2.5 1-8sphe.dat
1 16 -31.3 131.75 17.9 -2.5 0 0 0 1 0 0 0 2.5 1-4edge.dat
1 16 -31.3 131.75 17.9 -2.5 0 0 0 4 0 0 0 2.5 1-4cyli.dat
1 16 -31.3 135.75 17.9 -2.5 0 0 0 2.5 0 0 0 2.5 1-8sphe.dat
1 16 31.3 131.75 -19.9 2.5 0 0 0 1 0 0 0 -2.5 1-4edge.dat
1 16 31.3 131.75 -19.9 2.5 0 0 0 4 0 0 0 -2.5 1-4cyli.dat
1 16 31.3 135.75 -19.9 2.5 0 0 0 2.5 0 0 0 -2.5 1-8sphe.dat
1 16 31.3 131.75 17.9 2.5 0 0 0 1 0 0 0 2.5 1-4edge.dat
1 16 31.3 131.75 17.9 2.5 0 0 0 4 0 0 0 2.5 1-4cyli.dat
1 16 31.3 135.75 17.9 2.5 0 0 0 2.5 0 0 0 2.5 1-8sphe.dat
3 16 -12.815 138.25 16 -23.7 138.25 8.598 -31.3 138.25 17.9
3 16 -23.7 138.25 -8.598 -12.815 138.25 -16 -31.3 138.25 -19.9
3 16 31.3 138.25 -19.9 12.815 138.25 -16 23.7 138.25 -8.598
3 16 12.815 138.25 16 31.3 138.25 17.9 23.7 138.25 8.598

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

[PTadmin]

renamed the part.

2016-12-27 17:22:34

"parts/u9217.dat" to "parts/u1454.dat."

Philippe Hurbain [Philo]

initially submitted the part.

2022-06-12 17:15:03
