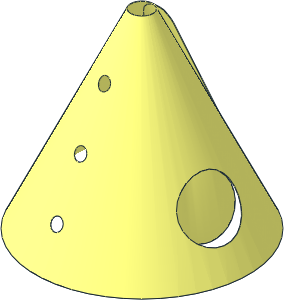

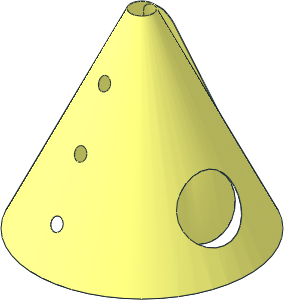

Sheet Fabric Tepee Cover (Formed)
File Header:
0 Sheet Fabric Tepee Cover (Formed) 0 Name: u9328ac01.dat 0 Author: Alex Taylor [anathema] 0 !LDRAW_ORG Part UPDATE 2024-10 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 !HELP Use the following code to position the tepee properly: 0 !HELP 1 7 -80 -24 -80 0 0 1 0 1 0 -1 0 0 6107.dat 0 !HELP 1 7 -80 -24 80 -1 0 0 0 1 0 0 0 -1 6107.dat 0 !HELP 1 7 80 -24 80 0 0 -1 0 1 0 1 0 0 6107.dat 0 !HELP 1 7 80 -24 -80 1 0 0 0 1 0 0 0 1 6107.dat 0 !HELP 1 7 -120 -24 0 0 0 -1 0 1 0 1 0 0 3622.dat 0 !HELP 1 7 120 -24 0 0 0 -1 0 1 0 1 0 0 3622.dat 0 !HELP 1 7 20 -24 -120 0 0 1 0 1 0 -1 0 0 6541.dat 0 !HELP 1 7 -20 -24 -120 0 0 1 0 1 0 -1 0 0 6541.dat 0 !HELP 1 7 -20 -24 120 0 0 -1 0 1 0 1 0 0 6541.dat 0 !HELP 1 7 20 -24 120 0 0 -1 0 1 0 1 0 0 6541.dat 0 !HELP 1 6 -10 -14 -120 0 1 0 .4 0 .916 .916 0 -.4 30129.dat 0 !HELP 1 6 10 -14 120 0 -1 0 .4 0 .916 -.916 0 .4 30129.dat 0 !HELP 1 0 0 -14 -120 -1 0 0 0 0 1 0 1 0 6558.dat 0 !HELP 1 0 0 -14 120 1 0 0 0 0 1 0 -1 0 6558.dat 0 !HELP 1 0 10 -289 0 -1 0 0 0 .07 .998 0 .998 -.07 6628.dat 0 !HELP 1 15 0 0 0 1 0 0 0 1 0 0 0 1 u9328ac01.dat 0 BFC CERTIFY CCW 0 !CATEGORY Sheet Fabric 0 !HISTORY 2024-05-16 [Holly-Wood] Recalculated holes and flap, sanded part, further subfiled 0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
Show contents
0 // Based on original geometry by Philo 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9328ac01s01.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9328ac01s02.dat
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Alex Taylor [anathema]
Part Reviewer
initially submitted the part.
2020-06-27 16:50:02
Based on u9238c01, but with the position of the door adjusted to match the real part.
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2020-07-19 21:25:02
Could you do something about the transition from cone to circle, in the door?
There's a lot of bad surface, concave and convex, causing bad condlines that show up to early.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
submitted a new version of the part.
2024-05-16 14:42:23
Recalculated holes and flap, sanded part
Willy Tschager [Holly-Wood]
Senior Part Reviewer
edited the part header.
2024-05-17 06:17:07
Header Edits

help:
0 !HELP
to
0 !HELP Use the following code to position the tepee properly:
0 !HELP 1 7 -10 -24 -130 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 30 -24 -130 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 -10 -24 110 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 30 -24 110 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 0 10 -14 110 1 0 0 0 1 0 0 0 1 6558.dat
0 !HELP 1 0 10 -14 -130 1 0 0 0 1 0 0 0 1 6558.dat
0 !HELP 1 0 20 -288 -12 -1 0 0 0 1 0 0 0 -1 6628.dat
0 !HELP 1 6 0 -12 -130 0 1 0 0.393 0 0.92 0.92 0 -0.393 30129.dat
0 !HELP 1 6 20 -14 110 0 -1 0 0.407 0 0.914 -0.914 0 0.407 30129.dat
0 !HELP 1 15 10 1 -11 1 0 0 0 1 0 0 0 1 u9328ac01.dat

Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2024-06-01 10:21:04
Nils Schmidt [BlackBrick89]
Part Reviewer
posted a vote of Certify.
2024-06-22 13:30:32
Gerald Lasser [GeraldLasser]
Part Library Admin
posted a vote of Hold.
2024-11-20 21:29:25
Holding as the help information is incorrect:

the suppport structure should be more like this:
1 7 -20 -24 -120 0 0 1 0 1 0 -1 0 0 6541.dat
1 7 20 -24 -120 0 0 1 0 1 0 -1 0 0 6541.dat
1 7 -20 -24 120 0 0 1 0 1 0 -1 0 0 6541.dat
1 7 20 -24 120 0 0 1 0 1 0 -1 0 0 6541.dat
1 0 0 -14 120 1 0 0 0 1 0 0 0 1 6558.dat
1 0 0 -14 -120 1 0 0 0 1 0 0 0 1 6558.dat
1 0 10 -288 -2 -1 0 0 0 1 0 0 0 -1 6628.dat
1 6 -10 -12 -120 0 1 0 .393 0 .92 .92 0 -.393 30129.dat
1 6 10 -14 120 0 -1 0 .407 0 .914 -.914 0 .407 30129.dat

Leave it up to Willy to correct the info in the parts
Willy Tschager [Holly-Wood]
Senior Part Reviewer
edited the part header.
2024-11-21 06:11:46
Header Edits

help:
0 !HELP Use the following code to position the tepee properly:
0 !HELP 1 7 -10 -24 -130 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 30 -24 -130 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 -10 -24 110 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 30 -24 110 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 0 10 -14 110 1 0 0 0 1 0 0 0 1 6558.dat
0 !HELP 1 0 10 -14 -130 1 0 0 0 1 0 0 0 1 6558.dat
0 !HELP 1 0 20 -288 -12 -1 0 0 0 1 0 0 0 -1 6628.dat
0 !HELP 1 6 0 -12 -130 0 1 0 0.393 0 0.92 0.92 0 -0.393 30129.dat
0 !HELP 1 6 20 -14 110 0 -1 0 0.407 0 0.914 -0.914 0 0.407 30129.dat
0 !HELP 1 15 10 1 -11 1 0 0 0 1 0 0 0 1 u9328ac01.dat
to
0 !HELP Use the following code to position the tepee properly:
0 !HELP 1 7 -20 -24 -120 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 20 -24 -120 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 -20 -24 120 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 20 -24 120 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 0 0 -14 120 1 0 0 0 1 0 0 0 1 6558.dat
0 !HELP 1 0 0 -14 -120 1 0 0 0 1 0 0 0 1 6558.dat
0 !HELP 1 0 10 -288 -2 -1 0 0 0 1 0 0 0 -1 6628.dat
0 !HELP 1 6 -10 -12 -120 0 1 0 .393 0 .92 .92 0 -.393 30129.dat
0 !HELP 1 6 10 -14 120 0 -1 0 .407 0 .914 -.914 0 .407 30129.dat
0 !HELP 1 15 0 1 -11 1 0 0 0 1 0 0 0 1 u9328ac01.dat
keywords:

to

Comment:
Corrected !HELP
Willy Tschager [Holly-Wood]
Senior Part Reviewer
edited the part header.
2024-11-21 06:22:31
Header Edits

help:
0 !HELP Use the following code to position the tepee properly:
0 !HELP 1 7 -20 -24 -120 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 20 -24 -120 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 -20 -24 120 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 20 -24 120 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 0 0 -14 120 1 0 0 0 1 0 0 0 1 6558.dat
0 !HELP 1 0 0 -14 -120 1 0 0 0 1 0 0 0 1 6558.dat
0 !HELP 1 0 10 -288 -2 -1 0 0 0 1 0 0 0 -1 6628.dat
0 !HELP 1 6 -10 -12 -120 0 1 0 .393 0 .92 .92 0 -.393 30129.dat
0 !HELP 1 6 10 -14 120 0 -1 0 .407 0 .914 -.914 0 .407 30129.dat
0 !HELP 1 15 0 1 -11 1 0 0 0 1 0 0 0 1 u9328ac01.dat
to
0 !HELP Use the following code to position the tepee properly:
0 !HELP 1 7 -80 -24 -80 0 0 1 0 1 0 -1 0 0 6107.dat
0 !HELP 1 7 -80 -24 80 -1 0 0 0 1 0 0 0 -1 6107.dat
0 !HELP 1 7 80 -24 80 0 0 -1 0 1 0 1 0 0 6107.dat
0 !HELP 1 7 80 -24 -80 1 0 0 0 1 0 0 0 1 6107.dat
0 !HELP 1 7 -120 -24 0 0 0 -1 0 1 0 1 0 0 3622.dat
0 !HELP 1 7 120 -24 0 0 0 -1 0 1 0 1 0 0 3622.dat
0 !HELP 1 7 20 -24 -120 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 -20 -24 -120 0 0 1 0 1 0 -1 0 0 6541.dat
0 !HELP 1 7 -20 -24 120 0 0 -1 0 1 0 1 0 0 6541.dat
0 !HELP 1 7 20 -24 120 0 0 -1 0 1 0 1 0 0 6541.dat
0 !HELP 1 6 -10 -14 -120 0 1 0 .4 0 .916 .916 0 -.4 30129.dat
0 !HELP 1 6 10 -14 120 0 -1 0 .4 0 .916 -.916 0 .4 30129.dat
0 !HELP 1 0 0 -14 -120 -1 0 0 0 0 1 0 1 0 6558.dat
0 !HELP 1 0 0 -14 120 1 0 0 0 0 1 0 -1 0 6558.dat
0 !HELP 1 0 10 -289 0 -1 0 0 0 .07 .998 0 .998 -.07 6628.dat
0 !HELP 1 15 0 0 0 1 0 0 0 1 0 0 0 1 u9328ac01.dat
keywords:

to

Gerald Lasser [GeraldLasser]
Part Library Admin
cancelled their vote.
2024-11-21 06:41:04
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2024-11-24 22:50:04
Orion Pobursky [OrionP]
Part Library Admin
2024-12-01 00:36:17
Release 2024-10
