Unofficial File parts/u9336.dat
Part Attributes:
File Header:

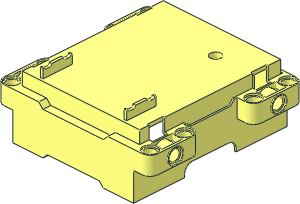

0 ~Electric Powered Up 2 Port Battery Box Bottom with Screw Holes
0 Name: u9336.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9336s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9336s01.dat
1 16 0 -5 -84.5 35 0 0 0 1 0 0 0 4.5 rect2p.dat
4 16 -30 36 -89 30 36 -89 35 -5 -89 -35 -5 -89
1 16 0 36 -83 -30 0 0 0 -1 0 0 0 6 rect2p.dat
4 16 30 36 -77 -30 36 -77 -66 -20 -77 66 -20 -77
1 16 0 10.5 80 28.9023 0 0 0 0 -30.5 0 1 0 rect2p.dat
4 16 30.3125 41 86.6875 28.9023 41 80 -28.9023 41 80 -30.3125 41 86.6875
4 16 39.6875 41 86.6875 -39.6875 41 86.6875 -70 41 89 70 41 89
1 16 0 25.5 89 0 0 -70 15.5 0 0 0 -1 0 rect1.dat
4 16 70 10 89 -70 10 89 -35 -5 89 35 -5 89
1 16 0 -5 87.5 35 0 0 0 1 0 0 0 1.5 rect2p.dat
4 16 -43 -3 83.5 -68 -24 83.5 68 -24 83.5 43 -3 83.5
2 24 68 -24 83.5 -68 -24 83.5
1 16 0 -3 84.75 43 0 0 0 1 0 0 0 1.25 rect2p.dat
4 16 -43 -3 86 43 -3 86 35 -5 86 -35 -5 86
4 16 -68 -24 -80 68 -24 -80 66 -24 -69 -66 -24 -69
4 16 -68 -24 83.5 -66 -24 69 66 -24 69 68 -24 83.5
4 16 66 -24 -69 66 -24 69 32 -24 56 32 -24 44
4 16 66 -24 -69 32 -24 44 20 -24 44 -66 -24 -69
4 16 -66 -24 69 -66 -24 -69 20 -24 44 20 -24 56
4 16 -66 -24 69 20 -24 56 32 -24 56 66 -24 69
0 BFC INVERTNEXT
1 16 8 -5.2176 -57 6.12293 0 14.78207 -14.78207 0 6.12293 0 94 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 8 -5.2176 -72 -6.12293 0 14.78207 -14.78207 0 -6.12293 0 140 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 8 -5.2176 -57 -6.12293 0 -14.78207 -14.78207 0 6.12293 0 112 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 44 -5.2176 -72 -6.12293 0 14.78207 -14.78207 0 -6.12293 0 140 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 44 -5.2176 -57 -6.12293 0 -14.78207 -14.78207 0 6.12293 0 94 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 -28 -5.2176 -72 -6.12293 0 14.78207 -14.78207 0 -6.12293 0 140 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 -28 -5.2176 -57 6.12293 0 14.78207 -14.78207 0 6.12293 0 112 0 1-8cylo.dat
1 16 -28 -5.2176 68 -6.12293 0 14.78207 -14.78207 0 -6.12293 0 1 0 1-8chrd.dat
1 16 8 -5.2176 68 -6.12293 0 14.78207 -14.78207 0 -6.12293 0 1 0 1-8chrd.dat
1 16 44 -5.2176 68 -6.12293 0 14.78207 -14.78207 0 -6.12293 0 1 0 1-8chrd.dat
1 16 26 -11.3405 -10 -3.2181 0 0 0 -1 0 0 0 47 rect.dat
1 16 -10 -11.3405 -1 -3.2181 0 0 0 -1 0 0 0 56 rect.dat
1 16 -10 -19.9997 61.5 11.8771 0 0 -0.0001 -1 -0.0001 0 0 -6.5 rect3.dat
1 16 26 -20 50 9 0 0 0 2 0 0 0 9 4-4cyli.dat
1 16 26 -20 50 9 0 0 0 1 0 0 0 9 4-4edge.dat
0 BFC INVERTNEXT
1 16 26 -24 50 6 0 0 0 6 0 0 0 6 4-4cylo.dat
1 16 26 -18 50 6.36396 0 -6.36396 0 2 0 6.36396 0 6.36396 1-4cyli.dat
1 16 26 -16 50 6.36396 0 -6.36396 0 1 0 6.36396 0 6.36396 1-4edge.dat
1 16 26 -18 50 -2.12132 0 -2.12132 0 -1 0 -2.12132 0 2.12132 1-4ring2.dat
1 16 26 -18 50 -6.36396 0 -6.36396 0 1 0 -6.36396 0 6.36396 1-4edge.dat
1 16 26 -16 50 2.12132 0 -2.12132 0 -1 0 2.12132 0 2.12132 1-4ring2.dat
1 16 26 -16 50 0.35355 0 -0.35355 0 -1 0 0.35355 0 0.35355 1-4ring11.dat
0 BFC INVERTNEXT
1 16 26 -18 50 3.88909 0 -3.88909 0 2 0 3.88909 0 3.88909 1-4cylo.dat
1 16 20.8735 -17 55.1266 0 0 -1.23745 -1 0 0 0 1 1.23745 rect.dat
1 16 31.1266 -17 55.1266 0 -1 -1.23745 -1 0 0 0 0 -1.23745 rect.dat
1 16 26 -18 50 -6.36396 0 6.36396 0 2 0 -6.36396 0 -6.36396 1-4cyli.dat
1 16 26 -16 50 -6.36396 0 6.36396 0 1 0 -6.36396 0 -6.36396 1-4edge.dat
1 16 26 -18 50 2.12132 0 2.12132 0 -1 0 2.12132 0 -2.12132 1-4ring2.dat
1 16 26 -18 50 6.36396 0 6.36396 0 1 0 6.36396 0 -6.36396 1-4edge.dat
1 16 26 -16 50 -2.12132 0 2.12132 0 -1 0 -2.12132 0 -2.12132 1-4ring2.dat
1 16 26 -16 50 -0.35355 0 0.35355 0 -1 0 -0.35355 0 -0.35355 1-4ring11.dat
0 BFC INVERTNEXT
1 16 26 -18 50 -3.88909 0 3.88909 0 2 0 -3.88909 0 -3.88909 1-4cylo.dat
1 16 31.1266 -17 44.8735 0 -1 1.23745 -1 0 0 0 0 -1.23745 rect.dat
1 16 20.8735 -17 44.8735 0 0 1.23745 -1 0 0 0 -1 1.23745 rect.dat
1 16 26 -24 50 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 26 -18 50 0.35355 0 -0.35355 0 1 0 0.35355 0 0.35355 1-4ring11.dat
1 16 26 -18 50 -0.35355 0 0.35355 0 1 0 -0.35355 0 -0.35355 1-4ring11.dat
2 24 50.1229 -19.9995 -72 50.1229 -19.9995 68
2 24 -34.1229 -19.9997 -72 -34.1229 -19.9997 68
4 16 50.1229 -19.9995 -72 66 -20 -77 -66 -20 -77 -34.1229 -19.9997 -72
4 16 50.1229 -19.9995 68 -34.1229 -19.9997 68 -66 -20 80 66 -20 80
4 16 66 -20 -77 50.1229 -19.9995 -72 50.1229 -19.9995 68 66 -20 80
4 16 -66 -20 -77 -66 -20 80 -34.1229 -19.9997 68 -34.1229 -19.9997 -72
1 16 -10 -19.9997 -64.5 -11.8771 0 0 0.0001 -1 0 0 0 7.5 rect3.dat
1 16 26 -19.9997 -64.5 -11.8771 0 0 0.0001 -1 0 0 0 7.5 rect3.dat
2 24 -34.1229 -19.9997 68 -21.8771 -19.9995 68
2 24 -34.1229 -19.9997 -72 -21.8771 -19.9995 -72
2 24 1.8771 -19.9997 68 14.1229 -19.9995 68
2 24 1.8771 -19.9997 -72 14.1229 -19.9995 -72
2 24 37.8771 -19.9997 68 50.1229 -19.9995 68
2 24 37.8771 -19.9997 -72 50.1229 -19.9995 -72
2 24 14.1229 -19.9995 68 14.1229 -19.9997 37
2 24 37.8771 -19.9997 68 37.8771 -19.9997 37
4 16 -21.8771 -19.9997 -57 -16.6859 -16.5315 -57 -3.3141 -16.5315 -57 1.8771 -19.9997 -57
4 16 -16.6859 -16.5315 -57 -13.2181 -11.3405 -57 -6.7819 -11.3405 -57 -3.3141 -16.5315 -57
4 16 -3.3141 -16.5315 55 -16.6859 -16.5315 55 -21.8771 -19.9997 55 1.8771 -19.9997 55
4 16 -6.7819 -11.3405 55 -13.2181 -11.3405 55 -16.6859 -16.5315 55 -3.3141 -16.5315 55
4 16 14.1229 -19.9997 -57 19.3141 -16.5315 -57 32.6859 -16.5315 -57 37.8771 -19.9997 -57
4 16 19.3141 -16.5315 -57 22.7819 -11.3405 -57 29.2181 -11.3405 -57 32.6859 -16.5315 -57
4 16 32.6859 -16.5315 37 19.3141 -16.5315 37 14.1229 -19.9997 37 37.8771 -19.9997 37
4 16 29.2181 -11.3405 37 22.7819 -11.3405 37 19.3141 -16.5315 37 32.6859 -16.5315 37
2 24 14.1229 -19.9997 37 37.8771 -19.9997 37
4 16 37.8771 -19.9997 68 32.3639 -20 56.3639 19.6361 -20 56.3639 14.1229 -19.9995 68
4 16 32.3639 -20 43.6361 32.3639 -20 56.3639 37.8771 -19.9997 68 37.8771 -19.9997 37
4 16 32.3639 -20 43.6361 37.8771 -19.9997 37 14.1229 -19.9997 37 19.6361 -20 43.6361
4 16 19.6361 -20 43.6361 14.1229 -19.9997 37 14.1229 -19.9995 68 19.6361 -20 56.3639
4 16 35 -5 -80 40 -10 -80 -40 -10 -80 -35 -5 -80
1 16 0 -17 -80 0 0 -68 -7 0 0 0 1 0 rect1.dat
2 24 3 11 80 3 -20 80
2 24 6 11 80 6 -20 80
2 24 6 -20 77 6 -20 80
2 24 3 -20 80 3 -20 77
1 16 4.5 8 78.5 -1.5 0 0 0 0 3 0 1 1.5 rect.dat
4 16 6 -20 77 6 5 77 6 11 80 6 -20 80
1 16 4.5 -7.5 77 1.5 0 0 0 0 -12.5 0 1 0 rect3.dat
4 16 3 11 80 3 5 77 3 -20 77 3 -20 80
2 24 -66 -20 -77 66 -20 -77
1 16 -28 -5.2176 -72 -6.12293 0 14.78207 -14.78207 0 -6.12293 0 -1 0 1-8chrd.dat
1 16 8 -5.2176 -72 -6.12293 0 14.78207 -14.78207 0 -6.12293 0 -1 0 1-8chrd.dat
1 16 44 -5.2176 -72 -6.12293 0 14.78207 -14.78207 0 -6.12293 0 -1 0 1-8chrd.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
[PTadmin]
renamed the part.
2018-01-16 21:43:36
"parts/u9336.dat" to "parts/t1002.dat."
2023-01-27 14:35:03
Missing surface, in the subfile:
4 5 35 -5 -80 35 -5 -89 40 -10 -89 40 -10 -80
bfc error, in the subfile:
4 16 65 -3 86.00015 68 -3 86.00015 68 -3 83.50005 65 -3 83.50005
Unmatched vertices:
2 5 -68 -24 83 68 -24 83
2 5 68 -24 83.5 -68 -24 83.5
4 5 35 -5 -80 35 -5 -89 40 -10 -89 40 -10 -80
bfc error, in the subfile:
4 16 65 -3 86.00015 68 -3 86.00015 68 -3 83.50005 65 -3 83.50005
Unmatched vertices:
2 5 -68 -24 83 68 -24 83
2 5 68 -24 83.5 -68 -24 83.5
Always wonder how I can miss such obvious things :D
Existing certification-votes were deleted.
Existing certification-votes were deleted.
Update ring primitives via script. This will not reset the vote status of the part.
2025-06-02 12:45:25
* Rotated/slanted rects and some stupid things like this:
1 16 -10 -19.9997 -64.5 -11.8771 0 0 0.0001 -1 0 0 0 7.5 rect3.dat
1 16 26 -19.9997 -64.5 -11.8771 0 0 0.0001 -1 0 0 0 7.5 rect3.dat
1 16 -10 -19.9997 61.5 11.8771 0 0 -0.0001 -1 -0.0001 0 0 -6.5 rect3.dat
1 16 -10 -19.9997 -64.5 -11.8771 0 0 0.0001 -1 0 0 0 7.5 rect3.dat
1 16 26 -19.9997 -64.5 -11.8771 0 0 0.0001 -1 0 0 0 7.5 rect3.dat
1 16 -10 -19.9997 61.5 11.8771 0 0 -0.0001 -1 -0.0001 0 0 -6.5 rect3.dat
