Official File parts/15709.dat
Part Attributes:
File Header:

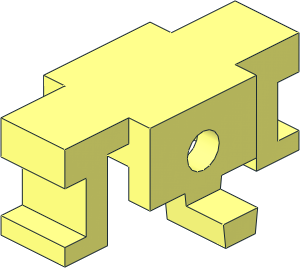

0 ~Motor Inertia Flywheel 4 x 6 x 2 Lock
0 Name: 15709.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Vehicle
0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03
Show contents
1 16 13.5 14.6851 0 -3.5 0 0 0 1 0 0 0 -3.21705 rect.dat
2 24 10 12.6851 3.4442 10 14.6851 3.2171
2 24 6 18.5 2.7839 6 12.6851 3.4442
2 24 6 18.5 -2.7839 6 12.6851 -3.4442
2 24 10 14.6851 -3.2171 10 12.6851 -3.4442
4 16 10 14.6851 -3.2171 10 14.6851 3.2171 10 12.6851 3.4442 10 12.6851 -3.4442
3 16 10 12.6851 10 10 0 10 10 12.6851 3.4442
3 16 10 0 -10 10 12.6851 -10 10 12.6851 -3.4442
4 16 -10 7.5 -10 -6 4 -10 -6 0 -10 -10 0 -10
4 16 -10 7.5 10 -10 0 10 -6 0 10 -6 4 10
4 16 -6 4 14 -6 6 18 -6 15 18 -6 18 14
2 24 17 18.5 2.7839 17 14.6851 3.2171
2 24 17 18.5 -2.7839 17 14.6851 -3.2171
2 24 10 12.6851 10 10 0 10
2 24 10 0 -10 10 12.6851 -10
4 16 -6 18 22 -6 18 14 -6 15 18 -6 15 22
4 16 6 18 22 6 15 22 6 15 18 6 18 14
4 16 6 4 14 6 18 14 6 15 18 6 6 18
1 16 0 11 14 -6 0 0 0 0 7 0 1 0 rect.dat
4 16 6 4 14 6 6 18 6 0 22 6 0 10
4 16 -6 6 18 -6 4 14 -6 0 10 -6 0 22
3 16 -6 0 22 -6 6 22 -6 6 18
4 16 10 14.6851 -3.2171 10 12.6851 -3.4442 6 12.6851 -3.4442 6 18.5 -2.7839
4 16 17 14.6851 -3.2171 10 14.6851 -3.2171 6 18.5 -2.7839 17 18.5 -2.7839
1 16 11.5 18.5 0 0 0 -5.5 0 -1 0 -2.78387 0 0 rect.dat
4 16 17 14.6851 -3.2171 17 18.5 -2.7839 17 18.5 2.7839 17 14.6851 3.2171
4 16 10 14.6851 3.2171 17 14.6851 3.2171 17 18.5 2.7839 6 18.5 2.7839
4 16 10 14.6851 3.2171 6 18.5 2.7839 6 12.6851 3.4442 10 12.6851 3.4442
3 16 6 0 22 6 6 18 6 6 22
2 24 -6 4 -10 -6 0 -10
2 24 -6 4 10 -6 0 10
2 24 6 12.6851 -10 6 7.5 -10
2 24 6 4 -10 6 0 -10
2 24 6 12.6851 10 6 7.5 10
2 24 6 4 10 6 0 10
4 16 -6 15 -18 -6 6 -18 -6 4 -14 -6 18 -14
4 16 -6 15 -18 -6 18 -14 -6 18 -22 -6 15 -22
4 16 6 15 -18 6 15 -22 6 18 -22 6 18 -14
4 16 6 15 -18 6 18 -14 6 4 -14 6 6 -18
1 16 0 11 -14 -6 0 0 0 0 -7 0 -1 0 rect.dat
4 16 6 0 -22 6 6 -18 6 4 -14 6 0 -10
4 16 -6 0 -10 -6 4 -14 -6 6 -18 -6 0 -22
3 16 -6 6 -22 -6 0 -22 -6 6 -18
3 16 6 6 -18 6 0 -22 6 6 -22
3 16 6 0 10 6 4 10 6 4 14
3 16 6 4 -14 6 4 -10 6 0 -10
3 16 -6 4 -10 -6 4 -14 -6 0 -10
3 16 -6 4 14 -6 4 10 -6 0 10
3 16 6 4 10 6 0 10 10 0 10
4 16 10 0 10 10 12.6851 10 6 7.5 10 6 4 10
3 16 10 12.6851 10 6 12.6851 10 6 7.5 10
1 16 8 12.6851 6.7221 0 0 2 0 -1 0 3.27792 0 0 rect.dat
1 16 8 12.6851 -6.7221 0 0 2 0 -1 0 3.27792 0 0 rect.dat
3 16 6 7.5 -10 6 12.6851 -10 10 12.6851 -10
4 16 6 4 -10 6 7.5 -10 10 12.6851 -10 10 0 -10
3 16 10 0 -10 6 0 -10 6 4 -10
4 16 6 18.5 2.7839 6 18.5 -2.7839 6 12.6851 -3.4442 6 12.6851 3.4442
1 16 0 4 12 0 0 -6 0 -1 0 -2 0 0 rect2p.dat
1 16 0 4 -12 0 0 -6 0 -1 0 -2 0 0 rect2p.dat
4 16 -6 0 10 -6 0 -10 6 0 -10 6 0 10
1 16 8 0 0 0 0 2 0 1 0 -10 0 0 rect3.dat
0 BFC INVERTNEXT
1 16 0 10.5 -22 6 0 0 0 0 -4.5 0 4 0 box3u2p.dat
0 BFC INVERTNEXT
1 16 0 10.5 22 -6 0 0 0 0 -4.5 0 -4 0 box3u2p.dat
1 16 0 3 -16 6 0 0 0 -3 0 0 0 -6 box2-7.dat
1 16 0 3 16 -6 0 0 0 -3 0 0 0 6 box2-7.dat
1 16 0 16.5 -18 6 0 0 0 1.5 0 0 0 -4 box2-7.dat
1 16 0 16.5 18 -6 0 0 0 1.5 0 0 0 4 box2-7.dat
2 24 -10 7.5 10 -10 0 10
2 24 -10 7.5 -10 -10 0 -10
1 16 -8 0 0 0 0 -2 0 1 0 10 0 0 rect3.dat
0 BFC INVERTNEXT
1 16 10 7.5 0 0 -4 0 0 0 3 -3 0 0 2-4cylo.dat
1 16 10 7.5 0 0 -1 0 3 0 0 0 0 3 4-4ndis.dat
1 16 6 7.5 0 0 1 0 0 0 3 -3 0 0 2-4ndis.dat
1 16 -10 7.5 0 0 1 0 0 0 -3 -3 0 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 -10 7.5 0 0 20 0 0 0 -3 3 0 0 2-4cylo.dat
4 16 10 4.5 -3 10 4.5 3 10 0 10 10 0 -10
4 16 10 10.5 -3 10 4.5 -3 10 0 -10 10 12.6851 -3.4442
4 16 10 10.5 -3 10 12.6851 -3.4442 10 12.6851 3.44418 10 10.5 3
4 16 10 0 10 10 4.5 3 10 10.5 3 10 12.6851 3.44418
4 16 6 7.5 -10 6 7.5 -3 6 10.5 -3 6 12.6851 -10
4 16 6 12.6851 -10 6 10.5 -3 6 10.5 3 6 12.6851 10
4 16 6 7.5 10 6 12.6851 10 6 10.5 3 6 7.5 3
4 16 -10 0 10 -10 7.5 10 -10 7.5 3 -10 4.5 3
4 16 -10 0 -10 -10 0 10 -10 4.5 3 -10 4.5 -3
4 16 -10 0 -10 -10 4.5 -3 -10 7.5 -3 -10 7.5 -10
1 16 -2 7.5 -6.5 8 0 0 0 -1 0 0 0 -3.5 rect.dat
1 16 -2 7.5 6.5 8 0 0 0 -1 0 0 0 -3.5 rect.dat
2 24 6 4 -10 -6 4 -10
4 16 -10 7.5 -10 6 7.5 -10 6 4 -10 -6 4 -10
2 24 -6 4 10 6 4 10
4 16 6 7.5 10 -10 7.5 10 -6 4 10 6 4 10
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2020-05-09 23:05:02
2020-10-06 21:50:01
Yes, boxification would be nice.
2023-07-23 20:20:34
This is design 15709
"u9443.dat" to "15709.dat"
Now using some box prims.
Still missing a small hole...
and the side "nose" has a edge on flat on the back (inner side)
Added some more details.
2023-09-05 13:01:59
* T-junk
2024-04-27 07:36:03
2024-04-28 11:50:15
Release 2024-03
