File Detail parts/57789.dat

Official File parts/57789.dat

Part Attributes:

External Sites:

File Header:

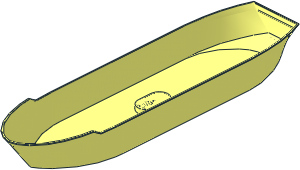

0 Boat Hull Floating 72 x 18 Bottom
0 Name: 57789.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2013-12-07 {LEGO Digital Designer} Original part shape
0 !HISTORY 2019-07-18 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08

Show contents

0 // Needs Work: usually invisible underside not modeled

0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\57789s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\57789s01.dat
1 16 0 92 -8 1 0 0 0 1 0 0 0 1 s\62791s02.dat
0 // Faces
3 16 0 116 67 -10.679 116 577.46 10.679 116 577.46
4 16 -10.679 116 640.596 10.679 116 640.596 10.679 116 577.46 -10.679 116 577.46
2 24 -10.679 116 640.596 10.679 116 640.596
4 16 -10.679 116 640.596 -10.679 80.101 640.596 10.679 80.101 640.596 10.679 116 640.596
2 24 -10.679 80.101 640.596 10.679 80.101 640.596
4 16 -10.679 80.101 640.596 -36.356 71.983 653.629 36.356 71.983 653.629 10.679 80.101 640.596
4 16 -36.356 71.983 653.629 -42.498 63.609 658.321 42.498 63.609 658.321 36.356 71.983 653.629
4 16 -42.498 63.609 658.321 -65.364 37.215 658.614 65.364 37.215 658.614 42.498 63.609 658.321
4 16 -65.364 37.215 658.614 -118.816 -23.424 659.325 118.816 -23.424 659.325 65.364 37.215 658.614
2 24 -118.816 -23.424 659.325 118.816 -23.424 659.325
4 16 -118.816 -23.424 659.325 -121.823 -25.013 662.19 121.823 -25.013 662.19 118.816 -23.424 659.325
2 24 -121.823 -25.013 662.19 121.823 -25.013 662.19
4 16 121.823 -25.013 662.19 -121.823 -25.013 662.19 -121.856 -27.82 662.239 121.856 -27.82 662.239
2 24 -121.856 -27.82 662.239 121.856 -27.82 662.239
4 16 -121.856 -27.82 662.239 -113.21 -27.82 657.188 113.21 -27.82 657.188 121.856 -27.82 662.239
2 24 -113.21 -27.82 657.188 113.21 -27.82 657.188
4 16 -113.21 -27.82 657.188 -94 -4 656 94 -4 656 113.21 -27.82 657.188
2 24 -94 -4 656 94 -4 656
4 16 -94 -4 656 -94 0 656 94 0 656 94 -4 656
2 24 -94 0 656 94 0 656
4 16 -94 0 656 -32 70 652 32 70 652 94 0 656
2 24 -32 70 652 32 70 652
4 16 -32 70 652 -8 112 570 8 112 570 32 70 652
2 24 -8 112 570 8 112 570
3 16 -8 112 570 0 112 71 8 112 570
4 16 0 112 -652 61 112 -604 0 112 -87 -61 112 -604
4 16 0 116 -83 21.801 116 -642.701 0 116 -656.596 -21.801 116 -642.701

2 24 121.856 -27.82 662.239 121.823 -25.013 662.19
2 24 -121.856 -27.82 662.239 -121.823 -25.013 662.19
2 24 170.816 -48.527 -498.657 170.617 -51.778 -504.0347
2 24 -170.816 -48.527 -498.657 -170.617 -51.778 -504.0347
5 24 0 -48.53 -782.98 0 -28 -768 45.102 -48.527 -766.541 -45.102 -48.527 -766.541
5 24 94 0 656 94 -4 656 100 -4 654 -94 -4 656
5 24 0 106 -674.928 0 -27.82 -772.831 29.052 -27.827 -765.131 -29.052 -27.827 -765.131
5 24 0 -24 -768 0 112 -654 -48 -24 -747 48 -24 -747
5 24 94 -4 656 113.21 -27.82 657.188 100 -4 654 -113.21 -27.82 657.188
5 24 121.823 -25.013 662.19 118.816 -23.424 659.325 -118.816 -23.424 659.325 144.117 -25.013 600.454
5 24 -94 -4 656 -113.21 -27.82 657.188 94 -4 656 -100 -4 654
5 24 -121.823 -25.013 662.19 -118.816 -23.424 659.325 121.823 -25.013 662.19 -144.117 -25.013 600.454
5 24 0 113.337 -667.037 0 106 -674.928 -25.652 106.009 -660.239 25.652 106.009 -660.239
5 24 0 -28 -768 0 -24 -768 49 -28 -748 -49 -28 -748
5 24 -32 70 652 -94 0 656 -100 0 654 32 70 652
5 24 8 112 570 32 70 652 -32 70 652 43 112 558
5 24 -36.356 71.983 653.629 36.356 71.983 653.629 -42.498 63.609 658.321 10.679 80.101 640.596
5 24 42.498 63.609 658.321 -42.498 63.609 658.321 36.356 71.983 653.629 -65.364 37.215 658.614
5 24 0 116 -656.596 0 113.337 -667.037 -21.801 116 -642.701 21.801 116 -642.701
5 24 32 70 652 94 0 656 -94 0 656 100 0 654
5 24 0 -27.82 -772.831 0 -48.028 -787.231 36.213 -48.028 -776.105 -36.213 -48.028 -776.105
5 24 0 -48.028 -790.828 0 -51.778 -790.828 37.474 -51.778 -779.485 -37.474 -51.778 -779.485
5 24 0 -51.778 -782.98 0 -48.53 -782.98 30.214 -51.778 -774.407 -30.214 -51.778 -774.407
5 24 -94 0 656 -94 -4 656 94 0 656 -100 -4 654
5 24 -8 112 570 -32 70 652 -43 112 558 8 112 570
0 // Stop of clip
0 // Primitives
1 16 0 105 -69.5 18.35 0 0 0 -1 0 0 0 2.5 rect.dat
0 // Faces
4 16 18.35 105 -72 19.5 92 -72 -19.5 92 -72 -18.35 105 -72
4 16 -18.35 105 -67 -19.5 92 -67 19.5 92 -67 18.35 105 -67
4 16 -18.35 105 -72 -19.5 92 -72 -19.5 92 -67 -18.35 105 -67
4 16 19.5 92 -72 18.35 105 -72 18.35 105 -67 19.5 92 -67
0 // Edges
2 24 -19.5 92 -72 19.5 92 -72
2 24 -19.5 92 -72 -19.5 92 -67
2 24 19.5 92 -72 19.5 92 -67
2 24 -19.5 92 -67 -7.875 92 -67
2 24 19.5 92 -67 7.875 92 -67
2 24 -18.35 105 -67 -19.5 92 -67
2 24 18.35 105 -67 19.5 92 -67
2 24 -18.35 105 -72 -19.5 92 -72
2 24 18.35 105 -72 19.5 92 -72

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Massimo Maso [Sirio]

initially submitted the part.

2019-10-17 17:00:02

The visible geometry is that derived from LDD, only for some vertices the decimal digits have been eliminated.
The inner part is completely invented.

Massimo Maso [Sirio]

submitted a new version of the part.

2019-12-04 00:10:01

Modified subpart reference and moved here the end of the clip.

[PTadmin]

renamed the part.

2019-12-11 21:45:46

"parts/59278.dat" to "parts/u9508.dat."

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2023-09-03 15:36:17

Philippe Hurbain [Philo]

edited the part header.

2024-08-28 09:34:35

Header Edits

description:
Boat Hull Floating 72 x 18 Bottom (Needs Work)
to
Boat Hull Floating 72 x 18 Bottom

Comment:
removed needs work notice, imho useless here.

Philippe Hurbain [Philo]

posted a vote of Certify.

2024-08-28 09:34:55

Magnus Forsberg [MagFors]

renamed the part.

2024-08-28 15:07:28

"parts/u9508.dat" to "parts/57789.dat"

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2024-09-19 22:07:10

Orion Pobursky [OrionP]

2024-09-30 03:57:13

Release 2024-08
