Official File parts/23998.dat
Part Attributes:
File Header:

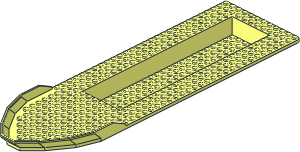

0 Boat Hull Floating 40 x 12 Deck
0 Name: 23998.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2016-03-18 {LEGO Digital Designer} Original part shape
0 !HISTORY 2019-12-03 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09
Show contents
0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\23998s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\23998s01.dat
0 // Upperside
4 16 110 8 386 -110 8 386 -110 8 388 110 8 388
4 16 110 8 388 -110 8 388 -110 8 390 110 8 390
1 16 0 4 390 110 0 0 0 0 4 0 -1 0 rect2p.dat
4 16 -110 0 390 -60 0 350 60 0 350 110 0 390
0 BFC INVERTNEXT
1 16 0 0 110 60 0 0 0 48 0 0 0 240 box5.dat
4 16 -60 0 -130 -116 0 -249.3509 116 0 -249.3509 60 0 -130
4 16 -116 0 -249.3509 -96.3747 0 -308.2269 96.3747 0 -308.2269 116 0 -249.3509
4 16 -96.3747 0 -308.2269 -56.8915 0 -367.4516 56.8915 0 -367.4516 96.3747 0 -308.2269
4 16 -56.8915 0 -367.4516 -18.3431 0 -406 18.3431 0 -406 56.8915 0 -367.4516
4 16 -18.3431 0 -406 -18.3431 -20 -426 18.3431 -20 -426 18.3431 0 -406
4 16 -18.3431 -20 -426 -18.3431 -24 -426 18.3431 -24 -426 18.3431 -20 -426
4 16 -18.3431 -24 -426 -20 -24 -430 20 -24 -430 18.3431 -24 -426
4 16 -20 -24 -430 -20 -20 -430 20 -20 -430 20 -24 -430
4 16 -20 -20 -430 -20 0 -410 20 0 -410 20 -20 -430
4 16 -20 0 -410 -20 8 -410 20 8 -410 20 0 -410
4 16 -20 8 -410 -18.3431 8 -406 18.3431 8 -406 20 8 -410
0 // Invisible underside
1 16 0 6 386 110 0 0 0 0 2 0 1 0 rect2p.dat
4 16 64 4 354 -64 4 354 -110 4 386 110 4 386
1 16 0 4 110 64 0 0 0 48 0 0 0 244 box5.dat
4 16 64 4 -134 116 4 -249.3509 -116 4 -249.3509 -64 4 -134
4 16 116 4 -249.3509 96.3747 4 -308.2269 -96.3747 4 -308.2269 -116 4 -249.3509
4 16 96.3747 4 -308.2269 56.8915 4 -367.4516 -56.8915 4 -367.4516 -96.3747 4 -308.2269
4 16 56.8915 4 -367.4516 18.3431 4 -406 -18.3431 4 -406 -56.8915 4 -367.4516
4 16 -18.3431 8 -406 -18.3431 4 -406 18.3431 4 -406 18.3431 8 -406
0 // Edges
2 24 -18.3431 4 -406 18.3431 4 -406
2 24 -18.3431 8 -406 18.3431 8 -406
2 24 -20 8 -410 20 8 -410
2 24 -20 0 -410 20 0 -410
2 24 -20 -20 -430 20 -20 -430
2 24 -20 -24 -430 20 -24 -430
2 24 -18.3431 -24 -426 18.3431 -24 -426
2 24 -18.3431 -20 -426 18.3431 -20 -426
2 24 -18.3431 0 -406 18.3431 0 -406
0 // Studs
1 16 0 48 290 0 0 -1 0 1 0 1 0 0 stug-6x6.dat
1 16 0 48 170 0 0 -1 0 1 0 1 0 0 stug-6x6.dat
1 16 0 48 50 0 0 -1 0 1 0 1 0 0 stug-6x6.dat
1 16 0 48 -70 0 0 -1 0 1 0 1 0 0 stug-6x6.dat
1 16 0 0 380 0 0 -1 0 1 0 1 0 0 stug-12x1.dat
1 16 0 0 360 0 0 -1 0 1 0 1 0 0 stug-12x1.dat
1 16 -110 0 230 0 0 -1 0 1 0 1 0 0 stug-1x12.dat
1 16 -90 0 230 0 0 -1 0 1 0 1 0 0 stug-1x12.dat
1 16 -70 0 230 0 0 -1 0 1 0 1 0 0 stug-1x12.dat
1 16 70 0 230 0 0 -1 0 1 0 1 0 0 stug-1x12.dat
1 16 90 0 230 0 0 -1 0 1 0 1 0 0 stug-1x12.dat
1 16 110 0 230 0 0 -1 0 1 0 1 0 0 stug-1x12.dat
1 16 -110 0 -10 0 0 -1 0 1 0 1 0 0 stug-1x12.dat
1 16 -90 0 -10 0 0 -1 0 1 0 1 0 0 stug-1x12.dat
1 16 -70 0 -10 0 0 -1 0 1 0 1 0 0 stug-1x12.dat
1 16 70 0 -10 0 0 -1 0 1 0 1 0 0 stug-1x12.dat
1 16 90 0 -10 0 0 -1 0 1 0 1 0 0 stug-1x12.dat
1 16 110 0 -10 0 0 -1 0 1 0 1 0 0 stug-1x12.dat
1 16 -110 0 -150 0 0 -1 0 1 0 1 0 0 stug-1x2.dat
1 16 110 0 -150 0 0 -1 0 1 0 1 0 0 stug-1x2.dat
1 16 -90 0 -210 0 0 -1 0 1 0 1 0 0 stug-1x8.dat
1 16 0 0 -210 0 0 -1 0 1 0 1 0 0 stug-8x8.dat
1 16 90 0 -210 0 0 -1 0 1 0 1 0 0 stug-1x8.dat
1 16 -70 0 -310 0 0 -1 0 1 0 1 0 0 stug-1x2.dat
1 16 70 0 -310 0 0 -1 0 1 0 1 0 0 stug-1x2.dat
1 16 -30 0 -320 0 0 -1 0 1 0 1 0 0 stug-3x3.dat
1 16 30 0 -320 0 0 -1 0 1 0 1 0 0 stug-3x3.dat
1 16 0 0 -360 0 0 -1 0 1 0 1 0 0 stug-4x1.dat
1 16 0 0 -380 0 0 -1 0 1 0 1 0 0 stug-2x1.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2019-12-10 18:10:01
[PTadmin]
renamed the part.
2019-12-11 22:06:41
"parts/23999.dat" to "parts/u9509.dat."
2019-12-12 06:50:01
2023-06-11 11:00:42
Design ID is 23998
to be renamed
to be renamed
2024-04-27 09:50:00
"parts/u9509.dat" to "parts/23998.dat"
2024-05-01 02:21:33
2024-09-01 15:38:51
2024-10-17 20:44:16
2024-10-27 01:48:38
Release 2024-09
