Official File parts/u9532.dat
Part Attributes:
File Header:

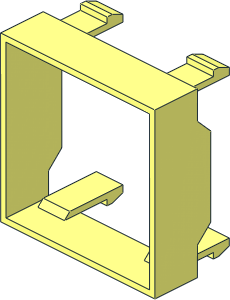

0 ~Electric Powered Up LED Matrix Front Frame
0 Name: u9532.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Spike Essential
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
