File Detail parts/u9533.dat

Official File parts/u9533.dat

Part Attributes:

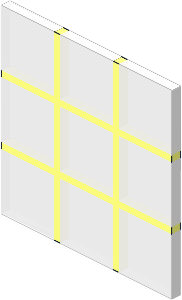

~Electric Powered Up LED Matrix Front Lid

File Header:

0 ~Electric Powered Up LED Matrix Front Lid
0 Name: u9533.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Spike Essential

0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
