Official File parts/u9540.dat
Part Attributes:
File Header:

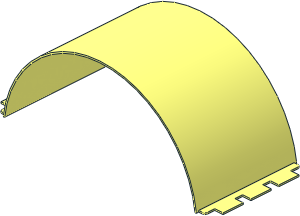

0 ~Sunroof for Duplo Arch 4 x 10 x 3
0 Name: u9540.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Window
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
0 BFC INVERTNEXT
1 16 0 24 -72 0 0 -138 -138 0 0 0 144 0 48\5-24cylo.dat
1 16 0 24 -72 0 0 -2 -2 0 0 0 1 0 48\5-24ring69.dat
1 16 0 24 72 0 0 -2 -2 0 0 0 -1 0 48\5-24ring69.dat
1 16 0 24 -72 0 0 -140 -140 0 0 0 144 0 48\5-24cylo.dat
4 16 -135.226 -12.232 -72 -135.226 -12.232 72 -138.4522 4 68.5 -138.4522 4 -68.5
3 16 -138.4522 4 -68.5 -138.4522 4 -72 -135.226 -12.232 -72
3 16 -138.4522 4 72 -138.4522 4 68.5 -135.226 -12.232 72
1 16 -138.4522 5 70.25 0 1 0 0 0 1 1.75 0 0 rect2a.dat
1 16 -138.4522 5 -70.25 0 1 0 0 0 1 -1.75 0 0 rect2a.dat
4 16 -136.5 5 72 -133.2942 -11.7144 72 -133.2942 -11.7144 -72 -136.5 5 -72
4 16 -133.2942 -11.7144 -72 -135.226 -12.232 -72 -138.4522 4 -72 -136.5 5 -72
4 16 -136.5 5 72 -138.4522 4 72 -135.226 -12.232 72 -133.2942 -11.7144 72
2 24 -135.226 -12.232 -72 -138.4522 4 -72
2 24 -135.226 -12.232 72 -138.4522 4 72
1 16 -137.5 5 -72 1 0 0 0 0 1 0 144 0 1-4cylo.dat
1 16 -137.5 5 -72 1 0 0 0 0 1 0 1 0 1-4chrd.dat
1 16 -137.5 5 72 1 0 0 0 0 1 0 -1 0 1-4chrd.dat
4 16 -138.4522 4 72 -136.5 5 72 -137.5 6 72 -138.4522 6 72
4 16 -138.4522 6 -68.5 -138.4522 6 68.5 -137.5 6 72 -137.5 6 -72
4 16 -136.5 5 -72 -138.4522 4 -72 -138.4522 6 -72 -137.5 6 -72
3 16 -138.4522 6 -72 -138.4522 6 -68.5 -137.5 6 -72
3 16 -138.4522 6 68.5 -138.4522 6 72 -137.5 6 72
2 24 -138.4522 6 72 -137.5 6 72
2 24 -138.4522 6 -72 -137.5 6 -72
2 24 -136.5 5 -72 -133.2942 -11.7144 -72
2 24 -136.5 5 72 -133.2942 -11.7144 72
0 // Lip
4 16 -138.4522 6 -68.5 -144 6 -68.5 -147.5 6 -65 -147.5 6 -54.5
4 16 -138.4522 6 -68.5 -147.5 6 -14.5 -147.5 6 14.5 -138.4522 6 68.5
3 16 -147.5 6 54.5 -138.4522 6 68.5 -147.5 6 25.5
3 16 -147.5 6 25.5 -138.4522 6 68.5 -147.5 6 14.5
3 16 -147.5 6 -25.5 -147.5 6 -14.5 -138.4522 6 -68.5
3 16 -147.5 6 -25.5 -138.4522 6 -68.5 -147.5 6 -54.5
4 16 -147.5 6 65 -144 6 68.5 -138.4522 6 68.5 -147.5 6 54.5
1 16 -144 6 -65 -3.5 0 0 0 -1 0 0 0 -3.5 1-4chrd.dat
1 16 -144 6 65 -3.5 0 0 0 -1 0 0 0 3.5 1-4chrd.dat
1 16 -144 4 -65 -3.5 0 0 0 2 0 0 0 -3.5 1-4cylo.dat
1 16 -144 4 65 -3.5 0 0 0 2 0 0 0 3.5 1-4cylo.dat
1 16 -141.2261 5 68.5 0 0 2.7739 1 0 0 0 -1 0 rect2a.dat
1 16 -141.2261 5 -68.5 0 0 2.7739 1 0 0 0 1 0 rect2a.dat
1 16 -144 4 -65 -3.5 0 0 0 1 0 0 0 -3.5 1-4chrd.dat
1 16 -144 4 65 -3.5 0 0 0 1 0 0 0 3.5 1-4chrd.dat
1 16 -147.5 5 59.75 0 1 0 1 0 0 0 0 -5.25 rect3.dat
1 16 -147.5 5 40 0 -12 0 1 0 0 0 0 14.5 box5-4a.dat
1 16 -147.5 5 20 0 1 0 0 0 1 -5.5 0 0 rect.dat
1 16 -147.5 5 0 0 -12 0 1 0 0 0 0 14.5 box5-4a.dat
1 16 -147.5 5 -20 0 1 0 0 0 1 -5.5 0 0 rect.dat
1 16 -147.5 5 -40 0 -12 0 1 0 0 0 0 14.5 box5-4a.dat
1 16 -147.5 5 -59.75 0 1 0 1 0 0 0 0 5.25 rect3.dat
1 16 -141.2261 4 0 0 0 2.7739 0 1 0 -68.5 0 0 recte3.dat
4 16 -147.5 4 14.5 -147.5 4 -14.5 -138.4522 4 -68.5 -138.4522 4 68.5
4 16 -147.5 4 -65 -144 4 -68.5 -138.4522 4 -68.5 -147.5 4 -54.5
4 16 -138.4522 4 68.5 -144 4 68.5 -147.5 4 65 -147.5 4 54.5
3 16 -138.4522 4 68.5 -147.5 4 54.5 -147.5 4 25.5
3 16 -138.4522 4 68.5 -147.5 4 25.5 -147.5 4 14.5
3 16 -147.5 4 -14.5 -147.5 4 -25.5 -138.4522 4 -68.5
3 16 -138.4522 4 -68.5 -147.5 4 -25.5 -147.5 4 -54.5
0 // Mirrored
0 BFC INVERTNEXT
1 16 0 24 -72 0 0 138 -138 0 0 0 144 0 48\5-24cylo.dat
1 16 0 24 -72 0 0 2 -2 0 0 0 1 0 48\5-24ring69.dat
1 16 0 24 72 0 0 2 -2 0 0 0 -1 0 48\5-24ring69.dat
1 16 0 24 -72 0 0 140 -140 0 0 0 144 0 48\5-24cylo.dat
4 16 138.4522 4 68.5 135.226 -12.232 72 135.226 -12.232 -72 138.4522 4 -68.5
3 16 138.4522 4 -72 138.4522 4 -68.5 135.226 -12.232 -72
3 16 138.4522 4 68.5 138.4522 4 72 135.226 -12.232 72
1 16 138.4522 5 70.25 0 -1 0 0 0 1 1.75 0 0 rect2a.dat
1 16 138.4522 5 -70.25 0 -1 0 0 0 1 -1.75 0 0 rect2a.dat
4 16 133.2942 -11.7144 -72 133.2942 -11.7144 72 136.5 5 72 136.5 5 -72
4 16 138.4522 4 -72 135.226 -12.232 -72 133.2942 -11.7144 -72 136.5 5 -72
4 16 135.226 -12.232 72 138.4522 4 72 136.5 5 72 133.2942 -11.7144 72
2 24 135.226 -12.232 -72 138.4522 4 -72
2 24 135.226 -12.232 72 138.4522 4 72
1 16 137.5 5 -72 -1 0 0 0 0 1 0 144 0 1-4cylo.dat
1 16 137.5 5 -72 -1 0 0 0 0 1 0 1 0 1-4chrd.dat
1 16 137.5 5 72 -1 0 0 0 0 1 0 -1 0 1-4chrd.dat
4 16 137.5 6 72 136.5 5 72 138.4522 4 72 138.4522 6 72
4 16 137.5 6 72 138.4522 6 68.5 138.4522 6 -68.5 137.5 6 -72
4 16 138.4522 6 -72 138.4522 4 -72 136.5 5 -72 137.5 6 -72
3 16 138.4522 6 -68.5 138.4522 6 -72 137.5 6 -72
3 16 138.4522 6 72 138.4522 6 68.5 137.5 6 72
2 24 138.4522 6 72 137.5 6 72
2 24 138.4522 6 -72 137.5 6 -72
2 24 136.5 5 -72 133.2942 -11.7144 -72
2 24 136.5 5 72 133.2942 -11.7144 72
0 // Lip
4 16 147.5 6 -65 144 6 -68.5 138.4522 6 -68.5 147.5 6 -54.5
4 16 147.5 6 14.5 147.5 6 -14.5 138.4522 6 -68.5 138.4522 6 68.5
3 16 138.4522 6 68.5 147.5 6 54.5 147.5 6 25.5
3 16 138.4522 6 68.5 147.5 6 25.5 147.5 6 14.5
3 16 147.5 6 -14.5 147.5 6 -25.5 138.4522 6 -68.5
3 16 138.4522 6 -68.5 147.5 6 -25.5 147.5 6 -54.5
4 16 138.4522 6 68.5 144 6 68.5 147.5 6 65 147.5 6 54.5
1 16 144 6 -65 3.5 0 0 0 -1 0 0 0 -3.5 1-4chrd.dat
1 16 144 6 65 3.5 0 0 0 -1 0 0 0 3.5 1-4chrd.dat
1 16 144 4 -65 3.5 0 0 0 2 0 0 0 -3.5 1-4cylo.dat
1 16 144 4 65 3.5 0 0 0 2 0 0 0 3.5 1-4cylo.dat
1 16 141.2261 5 68.5 0 0 -2.7739 1 0 0 0 -1 0 rect2a.dat
1 16 141.2261 5 -68.5 0 0 -2.7739 1 0 0 0 1 0 rect2a.dat
1 16 144 4 -65 3.5 0 0 0 1 0 0 0 -3.5 1-4chrd.dat
1 16 144 4 65 3.5 0 0 0 1 0 0 0 3.5 1-4chrd.dat
1 16 147.5 5 59.75 0 -1 0 1 0 0 0 0 -5.25 rect3.dat
1 16 147.5 5 40 0 12 0 1 0 0 0 0 14.5 box5-4a.dat
1 16 147.5 5 20 0 -1 0 0 0 1 -5.5 0 0 rect.dat
1 16 147.5 5 0 0 12 0 1 0 0 0 0 14.5 box5-4a.dat
1 16 147.5 5 -20 0 -1 0 0 0 1 -5.5 0 0 rect.dat
1 16 147.5 5 -40 0 12 0 1 0 0 0 0 14.5 box5-4a.dat
1 16 147.5 5 -59.75 0 -1 0 1 0 0 0 0 5.25 rect3.dat
1 16 141.2261 4 0 0 0 -2.7739 0 1 0 -68.5 0 0 recte3.dat
4 16 138.4522 4 -68.5 147.5 4 -14.5 147.5 4 14.5 138.4522 4 68.5
4 16 138.4522 4 -68.5 144 4 -68.5 147.5 4 -65 147.5 4 -54.5
4 16 147.5 4 65 144 4 68.5 138.4522 4 68.5 147.5 4 54.5
3 16 147.5 4 54.5 138.4522 4 68.5 147.5 4 25.5
3 16 147.5 4 25.5 138.4522 4 68.5 147.5 4 14.5
3 16 147.5 4 -25.5 147.5 4 -14.5 138.4522 4 -68.5
3 16 147.5 4 -25.5 138.4522 4 -68.5 147.5 4 -54.5
0 // added condlines
5 24 138.4522 4 -72 138.4522 4 -68.5 135.226 -12.232 -72 138.4522 6 -72
5 24 -138.4522 4 -68.5 -138.4522 4 -72 -138.4522 6 -72 -135.226 -12.232 -72
5 24 138.4522 4 68.5 138.4522 4 72 135.226 -12.232 72 138.4522 6 72
5 24 -138.4522 4 72 -138.4522 4 68.5 -135.226 -12.232 72 -138.4522 6 72
5 24 -135.226 -12.232 -72 -135.226 -12.232 72 -138.452 4 68.5 -129.346 -29.578 -72
5 24 -133.294 -11.7144 72 -133.294 -11.7144 -72 -136.5 5 72 -127.498 -28.8126 72
5 24 135.226 -12.232 72 135.226 -12.232 -72 138.452 4 68.5 129.346 -29.578 72
5 24 133.294 -11.7144 -72 133.294 -11.7144 72 136.5 5 72 127.498 -28.8126 -72
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2020-10-16 09:50:01
Missing edgelines on the underside. Use cylo instead.
fixed edgeline
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2021-08-31 21:40:01
Misses complementary conds
Added 8 condlines.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2023-09-05 13:31:04
2024-05-29 16:18:44
2024-08-29 20:10:58
2024-09-30 03:57:13
Release 2024-08
