Official File parts/u9597.dat
Part Attributes:
File Header:

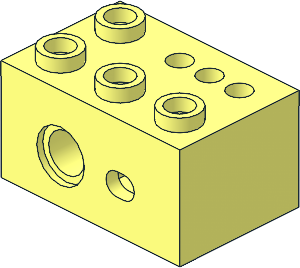

0 Electric Brick 2 x 3 Sensor Light 4.5V
0 Name: u9597.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink x1161cx1, control, Optosensor, Rebrickable upn0178
0 !KEYWORDS Set 1090, Set 1092, Set 9700
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9598.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9599.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
made from u9497
got the stud orientation wrong
was still mirrored
2022-09-25 13:10:01
This part is should be done from a top and a bottom part. See https://www.ldraw.org/parts/official-part-lookup.html?folder=parts&;partid=2761 and https://www.ldraw.org/parts/official-part-lookup.html?folder=parts&;partid=u9497
2022-09-26 08:10:01
I cant see any additional holes in any Pic i've seen, maybe the Bottom is glued in...
2022-09-30 11:20:01
Unfortunately I don't have this one...
- corrected sensor hole size
- split the long pinhole
- opened the middle split to the bottom and made a new bottom stud
still no idea how and where to split
Existing certification-votes were deleted.
- split the long pinhole
- opened the middle split to the bottom and made a new bottom stud
still no idea how and where to split
Existing certification-votes were deleted.
split into Top (u9598) and Bottom (u9599)
2022-12-21 12:30:02
2023-05-23 18:22:02
2024-05-27 20:40:48
2024-05-28 02:57:20
Release 2024-04
