Official File parts/u9598.dat
Part Attributes:
External Sites:
View on BrickLink
File Header:

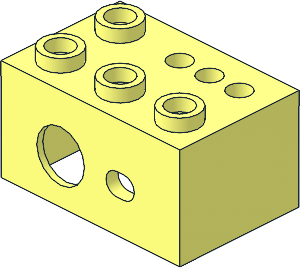

0 Electric Brick 2 x 3 Sensor Light 4.5V Top
0 Name: u9598.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink x1161cx1, control, Optosensor, Set 1090, Set 1092
0 !KEYWORDS Set 9700
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
0 // Bottom Part
0 // 1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9599.dat
0 // Middle Hole
1 16 10 0 10 0 0 3.5 0 1 0 3.5 0 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 10 10 10 0 0 3.5 0 -10 0 3.5 0 0 4-4cylc.dat
0 // Left Hole
1 16 0 0 10 0 0 3.5 0 1 0 3.5 0 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 0 10 0 0 3.5 0 6 0 3.5 0 0 4-4cylo.dat
0 BFC INVERTNEXT
1 494 0 16 10 0 0 3.5 0 -10 0 3.5 0 0 4-4cyli.dat
1 16 0 16 10 0 0 3.5 0 1 0 3.5 0 0 4-4edge.dat
1 16 0 16 10 0 0 3.5 0 1 0 3.5 0 0 4-4disc.dat
0 // Right Hole
1 16 20 0 10 0 0 3.5 0 1 0 3.5 0 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 20 0 10 0 0 3.5 0 6 0 3.5 0 0 4-4cylo.dat
0 BFC INVERTNEXT
1 494 20 16 10 0 0 3.5 0 -10 0 3.5 0 0 4-4cyli.dat
1 16 20 16 10 0 0 3.5 0 1 0 3.5 0 0 4-4edge.dat
1 16 20 16 10 0 0 3.5 0 1 0 3.5 0 0 4-4disc.dat
0 // Filler
4 16 16.5 0 6.5 16.5 0 13.5 13.5 0 13.5 13.5 0 6.5
4 16 6.5 0 6.5 6.5 0 13.5 3.5 0 13.5 3.5 0 6.5
0 // Top
4 16 -3.5 0 6.5 -3.5 0 13.5 -30 0 20 -30 0 -20
4 16 30 0 20 23.5 0 13.5 23.5 0 6.5 30 0 -20
4 16 30 0 -20 23.5 0 6.5 -3.5 0 6.5 -30 0 -20
4 16 -30 0 20 -3.5 0 13.5 23.5 0 13.5 30 0 20
1 16 0 0 0 30 0 0 0 1 0 0 0 20 recte4.dat
0 // Studs
1 16 10 0 -10 0 0 -1 0 1 0 1 0 0 stug2-2x1.dat
1 16 -20 0 0 0 0 -1 0 1 0 1 0 0 stug2-1x2.dat
0 // Sides
1 16 30 16 0 0 -1 0 16 0 0 0 0 20 rect2p.dat
1 16 -30 16 0 0 1 0 16 0 0 0 0 -20 rect2p.dat
0 // Long Pinhole
1 16 -10 18 -20 0 0 8 8 0 0 0 1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -10 18 -20 0 0 8 8 0 0 0 2 0 4-4cylo.dat
1 16 -10 18 -18 2 0 0 0 0 2 0 -1 0 4-4ring4.dat
1 16 -10 18 -18 10 0 0 0 0 10 0 -1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 -10 18 -18 10 0 0 0 0 -10 0 2 0 2-4cylo.dat
1 16 -10 18 -16 10 0 0 0 0 -10 0 -1 0 2-4ndis.dat
1 16 -20 23 -17 0 -1 0 5 0 0 0 0 1 rect2p.dat
1 16 0 23 -17 0 1 0 5 0 0 0 0 1 rect2p.dat
1 16 -10 18 20 0 0 8 8 0 0 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -10 18 20 0 0 8 8 0 0 0 -2 0 4-4cylo.dat
1 16 -10 18 18 2 0 0 0 0 2 0 1 0 4-4ring4.dat
1 16 -10 18 18 10 0 0 0 0 10 0 1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 -10 18 18 10 0 0 0 0 -10 0 -2 0 2-4cylo.dat
1 16 -10 18 16 10 0 0 0 0 -10 0 1 0 2-4ndis.dat
1 16 -20 23 17 0 -1 0 5 0 0 0 0 1 rect2p.dat
1 16 0 26 17 0 1 0 2 0 0 0 0 1 rect2p.dat
0 // Sensor Hole
0 BFC INVERTNEXT
1 16 11.25 18 -20 0 0 3.5 3.5 0 0 0 4 0 2-4cylo.dat
1 16 11.25 18 -20 0 0 3.5 3.5 0 0 0 1 0 2-4ndis.dat
1 16 11.25 18 -16 0 0 3.5 3.5 0 0 0 -1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 8.75 18 -20 0 0 -3.5 3.5 0 0 0 4 0 2-4cylo.dat
1 16 8.75 18 -20 0 0 -3.5 3.5 0 0 0 1 0 2-4ndis.dat
1 16 8.75 18 -16 0 0 -3.5 3.5 0 0 0 -1 0 2-4ndis.dat
1 16 10 21.5 -18 1.25 0 0 0 1 0 0 0 2 rect2p.dat
1 16 10 14.5 -18 1.25 0 0 0 -1 0 0 0 2 rect2p.dat
0 // Front
4 16 -30 0 -20 -18 10 -20 -2 10 -20 30 0 -20
4 16 -30 0 -20 -30 32 -20 -18 26 -20 -18 10 -20
4 16 -30 32 -20 30 32 -20 -2 26 -20 -18 26 -20
4 16 30 32 -20 30 0 -20 14.75 14.5 -20 14.75 21.5 -20
4 16 30 32 -20 14.75 21.5 -20 5.25 21.5 -20 -2 26 -20
4 16 5.25 14.5 -20 14.75 14.5 -20 30 0 -20 -2 10 -20
4 16 -2 26 -20 5.25 21.5 -20 5.25 14.5 -20 -2 10 -20
0 // Rear
4 16 -2 10 20 -18 10 20 -30 0 20 30 0 20
4 16 -18 26 20 -30 32 20 -30 0 20 -18 10 20
4 16 -2 26 20 30 32 20 -30 32 20 -18 26 20
4 16 -2 10 20 30 0 20 30 32 20 -2 26 20
0 // Bottom
0 BFC INVERTNEXT
1 16 -10 30 -16 0 0 10 -2 0 0 0 -2 0 box3u5p.dat
4 16 0 32 -18 30 32 -20 -30 32 -20 -20 32 -18
4 16 30 32 -20 0 32 -18 0 32 -16 26 32 -16
4 16 30 32 -20 26 32 -16 26 32 16 30 32 20
4 16 30 32 20 26 32 16 0 32 16 0 32 18
4 16 -30 32 20 30 32 20 0 32 18 -20 32 18
0 BFC INVERTNEXT
1 16 -10 30 16 0 0 10 -2 0 0 0 2 0 box3u5p.dat
4 16 -26 32 16 -30 32 20 -20 32 18 -20 32 16
4 16 -30 32 -20 -30 32 20 -26 32 16 -26 32 -16
4 16 -30 32 -20 -26 32 -16 -20 32 -16 -20 32 -18
1 16 0 32 0 30 0 0 0 1 0 0 0 20 recte4.dat
0 BFC INVERTNEXT
1 16 0 28 0 0 26 0 -4 0 0 0 0 16 box3u7a.dat
0 BFC INVERTNEXT
1 16 -20 18 0 0 -6 0 14 0 0 0 0 16 box3u4a.dat
0 // Inside
4 16 14.75 14.5 -16 26 8 -16 26 24 -16 14.75 21.5 -16
4 16 5.25 21.5 -16 14.75 21.5 -16 26 24 -16 0 24 -16
4 16 26 8 -16 14.75 14.5 -16 5.25 14.5 -16 0 8 -16
4 16 5.25 14.5 -16 5.25 21.5 -16 0 24 -16 0 8 -16
1 16 13 6 -16 0 0 13 -2 0 0 0 -1 0 rect1.dat
1 16 -10 6 -16 0 0 10 -2 0 0 0 -1 0 rect1.dat
1 16 26 14 -8 0 1 0 -10 0 0 0 0 -8 rect2a.dat
1 16 13 14 8 -13 0 0 0 10 0 0 0 -8 box2-5.dat
1 16 0 21 9 0 1 0 0 0 3 9 0 0 rect1.dat
0 BFC INVERTNEXT
1 16 -2 11 2.5 0 0 2 -7 0 0 0 2.5 0 box2-9.dat
1 16 -2 18 10 2 0 0 0 -1 0 0 0 5 rect.dat
0 BFC INVERTNEXT
1 16 -10 18 5 6 0 0 0 0 -6 0 10 0 3-16cylo.dat
1 16 -10 18 5 6 0 0 0 0 -6 0 1 0 3-16ndis.dat
1 16 -10 18 15 6 0 0 0 0 -6 0 -1 0 3-16ndis.dat
0 BFC INVERTNEXT
1 16 -2 11 15.5 0 0 2 -7 0 0 0 -0.5 0 box2-9.dat
1 16 -7.7038 8.2283 10 0 1 0 4.2283 0 0 0 0 -5 rect.dat
4 16 -7.7038 4 5 -7.7038 12.4566 5 -4 12 5 -4 4 5
2 24 -4 4 5 -7.7038 4 5
4 16 -4 12 15 -7.7038 12.4566 15 -7.7038 4 15 -4 4 15
2 24 -4 4 15 -7.7038 4 15
1 16 -10 6 16 0 0 10 -2 0 0 0 1 0 rect1.dat
2 24 0 18 16 0 4 16
4 16 0 4 15 -7.7038 4 15 -26 4 16 0 4 16
4 16 -26 4 16 -7.7038 4 15 -7.7038 4 5 -26 4 -16
4 16 0 4 0 -26 4 -16 -7.7038 4 5 0 4 5
4 16 26 4 0 26 4 -16 -26 4 -16 0 4 0
0 // Sensor
1 32 10 18 0 5 0 0 0 0 5 0 -1 0 box5.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
split into two parts, i hope thats ok (I dont have that part, so the interior and some details on the exterior are guessed)
* Missing edge:
2 3 26 4 -16 26 24 -16
* Lot of T-junk
* What is the purpose of this edge:
1 494 0 6 10 0 0 3.5 0 -10 0 3.5 0 0 4-4edge.dat
beside the fact that a similar edge is already part of:
1 16 0 -1 10 0 0 3.5 0 6 0 3.5 0 0 4-4cylo.dat
* Stop ring for pin missing on both sides check:
https://lgauge.com/technic/LEGOInterfaceA/optosensor.jpg
https://bricker.info/images/parts/x1161cx1.png
https://brickset.com/sets/1343-1/Optosensors-%284-5V%29-and-Discs
2 3 26 4 -16 26 24 -16
* Lot of T-junk
* What is the purpose of this edge:
1 494 0 6 10 0 0 3.5 0 -10 0 3.5 0 0 4-4edge.dat
beside the fact that a similar edge is already part of:
1 16 0 -1 10 0 0 3.5 0 6 0 3.5 0 0 4-4cylo.dat
* Stop ring for pin missing on both sides check:
https://lgauge.com/technic/LEGOInterfaceA/optosensor.jpg
https://bricker.info/images/parts/x1161cx1.png
https://brickset.com/sets/1343-1/Optosensors-%284-5V%29-and-Discs
- added the missing edge
- stop ring gets created from combining u9598 and u9599 (look at the complete part u9597)
- all the "bad" T-Junk is on the inside of a rare, black part (which I dont even know if its correct because I dont have the part)
does anyone own the part / the sets?
Existing certification-votes were deleted.
- stop ring gets created from combining u9598 and u9599 (look at the complete part u9597)
- all the "bad" T-Junk is on the inside of a rare, black part (which I dont even know if its correct because I dont have the part)
does anyone own the part / the sets?
Existing certification-votes were deleted.
* Edges still present:
1 494 0 6 10 0 0 3.5 0 -10 0 3.5 0 0 4-4edge.dat
1 494 0 6 10 0 0 3.5 0 -10 0 3.5 0 0 4-4edge.dat
The connecting holes were directly copied from u9497 (Electric Brick 2 x 3 Sensor Touch 4.5V Top)
but now fixed...
Existing certification-votes were deleted.
but now fixed...
Existing certification-votes were deleted.
Still present through:
1 16 0 0 10 0 0 3.5 0 6 0 3.5 0 0 4-4cylo.dat
The official part is clearly wrong.
1 16 0 0 10 0 0 3.5 0 6 0 3.5 0 0 4-4cylo.dat
The official part is clearly wrong.
2022-12-22 11:25:02
What is still wrong? From surface to bottom, there are:
ndis - cylo - cyli - edge - disc
so that there is exactly 1 edge between two things...
I think that the electric contacts are actually another part, so there should be an edge between the plastic top and the metal contact.
ndis - cylo - cyli - edge - disc
so that there is exactly 1 edge between two things...
I think that the electric contacts are actually another part, so there should be an edge between the plastic top and the metal contact.
No, just think of the metal contact as a color. SO no edge between alloy and main color 16.
without an edge between contacts and plastic
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2023-01-02 13:20:01
2023-05-23 18:16:27
I know its nitpicking, but the z coordinate of the box prim at the very end of this file is written with two zeros instead of one.
2023-05-23 21:04:17
IMHO this is wrong. There has to be an edgeline between the metal and the plastic.
When/If it is separated into 2 parts they must each have an edge there.
When/If it is separated into 2 parts they must each have an edge there.
2023-05-24 15:40:31
What do the admins think about this? Edgeline or not between case and contact? What about the hole base? Open, plastic or contact bottom?
2023-05-24 16:19:10
I zgree with Magnus. Actually different parts -> edge line.
2023-05-24 16:32:19
Yes. Edge.
added the edge and deleted that one duplicated zero
2023-05-29 11:35:51
I think both sides should have an edge (plastic area and metal area).
Yes, I agree with Max, but the edge is inside and the part is supposed to be opaque colour, it will not be a a significant problem.
2024-05-26 11:02:22
2024-05-27 20:40:48
2024-05-28 02:57:20
Release 2024-04
