File Detail parts/s/11126s01.dat

Official File parts/s/11126s01.dat

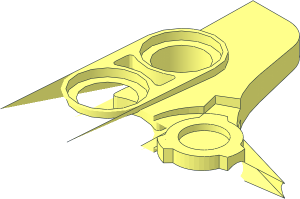

~Ripcord Flexible with Handle Thin for Chima Speedorz (91 Teeth) - Handle

File Header:

0 ~Ripcord Flexible with Handle Thin for Chima Speedorz (91 Teeth) - Handle
0 Name: s\11126s01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Subpart UPDATE 2023-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02

Show contents
