File Detail parts/s/11305s01.dat

Official File parts/s/11305s01.dat

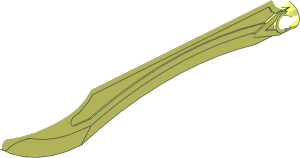

~Constraction Blade 14L Convex with Axle - Half Blade

File Header:

0 ~Constraction Blade 14L Convex with Axle - Half Blade
0 Name: s\11305s01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Subpart UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10

Show contents
