File Detail parts/s/15626s01.dat

Official File parts/s/15626s01.dat

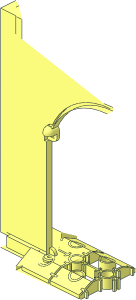

~Panel 4 x 16 x 10 with Gate - One Half without Patternable Areas

File Header:

0 ~Panel  4 x 16 x 10 with Gate - One Half without Patternable Areas
0 Name: s\15626s01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Subpart UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02

Show contents

0 // Lower door hinge
0 // Primitives
1 16 -76 228 -20 2 0 0 0 -1 0 0 0 2 2-4ndis.dat
1 16 -76 228 -20 2 0 0 0 -1 1 0 0 -2 2-4ndis.dat
1 16 -76 228 -20 2 0 0 0 1 0 0 0 2 2-4edge.dat
1 16 -76 228 -20 2 0 0 0 -1 1 0 0 -2 2-4edge.dat
0 BFC INVERTNEXT
1 16 -76 228 -20 0 0 -2 0 1 0 2 0 0 1-4cyls2.dat
0 BFC INVERTNEXT
1 16 -76 228 -20 0 0 2 0 1 0 2 0 0 1-4cyls2.dat
0 BFC INVERTNEXT
1 16 -76 224 -20 2 0 0 0 4 0 0 0 2 4-4cyli.dat
1 16 -76 224 -20 2 0 0 0 1 0 0 0 2 4-4edge.dat
1 16 -76 224 -20 -2 0 0 0 1 0 0 0 2 2-4ndis.dat
1 16 -76 224 -20 -2 0 0 0 1 0 0 0 -2 2-4ring1.dat
1 16 -76 224 -20 -1 0 0 0 1 0 0 0 -1 2-4ring4.dat
1 16 -76 224 -20 -5 0 0 0 1 0 0 0 -5 2-4edge.dat
1 16 -76 225.5 -20 -1 0 0 0 -1.5 0 0 0 -1 1-4con5.dat
1 16 -76 225.5 -20 1 0 0 0 -1.5 0 0 0 -1 1-4con5.dat
1 16 -76 225.5 -20 0 0 -6 0 1 0 -6 0 0 1-8edge.dat
1 16 -76 225.5 -20 0 0 6 0 1 0 -6 0 0 1-8edge.dat
1 16 -76 225.5 -20 0 0 -6 0 2.1 0 -6 0 0 3-16cyli.dat
1 16 -76 225.5 -20 0 0 6 0 2.1 0 -6 0 0 3-16cyli.dat
1 16 -78 224 -12.5 5 0 0 0 0 -6 0 -1 0 1-4chrd.dat
1 16 -78 224 -16 5 0 0 0 0 -6 0 3.5 0 1-4cylo.dat
1 16 -78 224 -16 5 0 0 0 0 -6 0 1 0 1-4chrd.dat
1 16 -79 218 -14.25 0 0 -1 0 1 0 1.75 0 0 rect3.dat
1 16 -80 160 -14.25 0 -1 0 0 0 -58 1.75 0 0 rect1.dat
0 // Faces
4 16 -59 228 -20 -74 228 -20 -74 228 -18 -59 228 20
4 16 -59 228 20 -74 228 -18 -76 228 -18 -61 228 20
4 16 -96 228 20 -61 228 20 -76 228 -18 -78 228 -18
4 16 -96 228 20 -78 228 -18 -97.4 228 -16 -97.4 228 16
4 16 -96 228 -20 -97.4 228 -16 -78 228 -18 -78 228 -20
4 16 -96 236 -36 -96 228 -20 -78 228 -20 -78 229 -22
3 16 -96 236 -36 -78 229 -22 -76 229 -22
3 16 -96 236 -36 -76 229 -22 -74 229 -22
3 16 -96 236 -36 -74 229 -22 -61 236 -36
4 16 -61 236 -36 -74 229 -22 -74 228 -20 -61 228 -20
4 16 -100 236 -40 -81.4543 225.3555 -22.2593 -81 224 -20 -100 224 -20
3 16 -100 236 -40 -81.407 225.5 -22.5 -81.4543 225.3555 -22.2593
3 16 -100 236 -40 -80.2426 226.5456 -24.2426 -81.407 225.5 -22.5
3 16 -100 236 -40 -78.2962 227.326 -25.5434 -80.2426 226.5456 -24.2426
3 16 -100 236 -40 -76 227.6 -26 -78.2962 227.326 -25.5434
4 16 -136 224 4 -100 224 20 -156 224 20 -156 224 4
4 16 -136 224 4 -84 224 -12.5 -73 224 -12.5 -100 224 20
4 16 -136 224 4 -136 224 -16 -84 224 -16 -84 224 -12.5
4 16 -73 224 -16 -72 224 -20 -71 224 -20 -73 224 -12.5
4 16 -73 224 -16 -74 224 -18 -74 224 -20 -72 224 -20
3 16 -73 224 -16 -76 224 -18 -74 224 -18
4 16 -73 224 -16 -80 224 -16 -78 224 -18 -76 224 -18
4 16 -80 224 -20 -78 224 -20 -78 224 -18 -80 224 -16
4 16 -78 218 -12.5 -73 224 -12.5 -84 224 -12.5 -80 218 -12.5
4 16 -73 224 -16 -78 218 -16 -80 218 -16 -80 224 -16
4 16 -84 224 -12.5 -84 92 -12.5 -80 102 -12.5 -80 218 -12.5
3 16 -80 224 -20 -80 224 -16 -80 218 -16
4 16 -80 224 -20 -80 218 -16 -80 102 -16 -80 102 -20
0 // Edges
2 24 -100 236 -40 -100 224 -20
2 24 -100 224 -20 -81 224 -20
2 24 -96 228 -20 -78 228 -20
2 24 -72 228 -20 -61 228 -20
2 24 -84 224 -12.5 -73 224 -12.5
2 24 -136 224 -16 -84 224 -16
2 24 -73 224 -12.5 -73 224 -16
2 24 -73 224 -16 -80 224 -16
2 24 -80 224 -20 -80 224 -16
2 24 -80 224 -20 -81 224 -20
2 24 -80 224 -16 -80 218 -16
2 24 -81 224 -20 -81.4543 225.3555 -22.2593
2 24 -81.4543 225.3555 -22.2593 -81.407 225.5 -22.5
2 24 -81.407 225.5 -22.5 -80.2426 226.5456 -24.2426
2 24 -80.2426 226.5456 -24.2426 -78.2962 227.326 -25.5434
2 24 -78.2962 227.326 -25.5434 -76 227.6 -26
2 24 -76 227.6 -26 -73.7038 227.326 -25.5434
2 24 -73.7038 227.326 -25.5434 -71.7574 226.5456 -24.2426
2 24 -71.7574 226.5456 -24.2426 -70.593 225.5 -22.5
2 24 -70.593 225.5 -22.5 -70.5457 225.3555 -22.2593
2 24 -70.5457 225.3555 -22.2593 -71 224 -20
2 24 -80 224 -20 -80 102 -20
2 24 -81.407 225.5 -22.5 -80.2426 225.5 -24.2426
2 24 -70.593 225.5 -22.5 -71.7574 225.5 -24.2426
0 // Upper door hinge
0 // Primitives
1 16 -78 102 -14.25 0 0 -2 0 -1 0 1.75 0 0 rect3.dat
0 BFC INVERTNEXT
1 16 -81.25 97 -18 0 0 -1.25 0 5 0 2 0 0 box2-5.dat
1 16 -76 96 -12.5 6 0 0 0 0 6 0 -1 0 1-4chrd.dat
1 16 -76 96 -16 6 0 0 0 0 6 0 3.5 0 1-4cylo.dat
1 16 -76 96 -16 6 0 0 0 0 6 0 1 0 1-4chrd.dat
1 16 -76 98 -14.25 0 0 2 0 1 0 1.75 0 0 rect2p.dat
1 16 -76 95 -16 2 0 0 0 0 3 0 1 0 recte3.dat
1 16 -76 92.5 -12.5 2 0 0 0 0 -5.5 0 1 0 recte4.dat
0 BFC INVERTNEXT
1 16 -76 87 -20 2 0 0 0 5 0 0 0 -2 2-4cylc.dat
1 16 -76 92 -20 2 0 0 0 -1 0 0 0 -2 2-4ring1.dat
1 16 -76 92 -20 2 0 0 0 -1 0 0 0 -2 2-4ring2.dat
1 16 -76 92 -20 6 0 0 0 1 0 0 0 -6 2-4edge.dat
1 16 -76 92 -20 6 0 0 0 -2 0 0 0 -6 2-4cyli.dat
1 16 -76 90 -20 -6 0 0 0 0 -6 0 -1 0 5-16edge.dat
1 16 -76 90 -12.5 6 0 0 0 0 -6 0 -1 0 1-8chrd.dat
1 16 -76 90 -12.5 6 0 0 0 0 -6 0 -1 0 1-8edge.dat
1 16 -76 90 -20 6 0 0 0 0 -6 0 7.5 0 1-8cyli.dat
1 16 -76 90 -20 6 0 0 0 -6 0 0 0 -6 2-8sphe.dat
1 16 -76 92 -12.5 -8 0 0 0 0 -8 0 -1 0 1-4chrd.dat
1 16 -76 92 -16 -8 0 0 0 0 -8 0 3.5 0 1-4cylo.dat
0 // Faces
4 16 -74 98 -12.5 -76 102 -12.5 -80 102 -12.5 -78 98 -12.5
3 16 -74 98 -12.5 -70 96 -12.5 -76 102 -12.5
4 16 -74 87 -12.5 -70 90 -12.5 -70 96 -12.5 -74 98 -12.5
3 16 -74 87 -12.5 -71.7574 85.7574 -12.5 -70 90 -12.5
4 16 -74 87 -12.5 -75.7056 84 -12.5 -72.0315 85.5742 -12.5 -71.7574 85.7574 -12.5
4 16 -78 87 -12.5 -76 84 -12.5 -75.7056 84 -12.5 -74 87 -12.5
3 16 -78 87 -12.5 -84 92 -12.5 -76 84 -12.5
4 16 -78 87 -12.5 -78 98 -12.5 -80 102 -12.5 -84 92 -12.5
4 16 -78 87 -12.5 -78 92 -16 -78 98 -16 -78 98 -12.5
4 16 -78 87 -12.5 -78 87 -20 -78 92 -20 -78 92 -16
3 16 -78 87 -12.5 -76 87 -20 -78 87 -20
3 16 -74 87 -12.5 -76 87 -20 -78 87 -12.5
3 16 -74 87 -12.5 -74 87 -20 -76 87 -20
4 16 -74 87 -12.5 -74 92 -16 -74 92 -20 -74 87 -20
4 16 -74 87 -12.5 -74 98 -12.5 -74 98 -16 -74 92 -16
4 16 -70 90 -12.5 -70 92 -16 -70 96 -16 -70 96 -12.5
4 16 -70 90 -12.5 -70 90 -20 -70 92 -20 -70 92 -16
3 16 -82.5 92 -16 -82 92 -20 -82.5 92 -20
3 16 -82.5 92 -16 -80 92 -20 -82 92 -20
4 16 -82.5 92 -16 -78 92 -16 -78 92 -20 -80 92 -20
4 16 -82.5 92 -16 -82.5 102 -16 -78 98 -16 -78 92 -16
4 16 -82.5 102 -16 -80 102 -16 -74 98 -16 -78 98 -16
3 16 -76 102 -16 -74 98 -16 -80 102 -16
3 16 -76 102 -16 -70 96 -16 -74 98 -16
4 16 -70 92 -16 -74 92 -16 -74 98 -16 -70 96 -16
4 16 -70 92 -16 -72 92 -20 -74 92 -20 -74 92 -16
3 16 -70 92 -16 -70 92 -20 -72 92 -20
4 16 -76 84 -12.5 -76 84 -16 -75.7056 84 -16 -75.7056 84 -12.5
4 16 -72.0315 85.5742 -12.5 -72.0315 85.5742 -20 -71.7574 85.7574 -20 -71.7574 85.7574 -12.5
0 // Edges
2 24 -70 96 -12.5 -70 90 -12.5
2 24 -70 96 -16 -70 92 -16
2 24 -82.5 92 -20 -82 92 -20
2 24 -82 92 -20 -82 90 -20
2 24 -78 92 -16 -78 92 -20
2 24 -74 92 -16 -74 92 -20
2 24 -78 92 -16 -82.5 92 -16
2 24 -70 92 -16 -74 92 -16
2 24 -70 92 -16 -70 92 -20
2 24 -78 87 -12.5 -78 87 -20
2 24 -74 87 -12.5 -74 87 -20
2 24 -71.7574 85.7574 -12.5 -72.0315 85.5742 -12.5
2 24 -72.0315 85.5742 -12.5 -72.0315 85.5742 -20
2 24 -72.0315 85.5742 -20 -73.7038 84.4566 -20
2 24 -76 84 -12.5 -75.7056 84 -12.5
2 24 -75.7056 84 -12.5 -75.7056 84 -16
2 24 -75.7056 84 -16 -76 84 -16
0 // Conditional lines
5 24 -76 84 -16 -76 84 -12.5 -79.0616 84.6088 -16 -75.7056 84 -16
5 24 -71.7574 85.7574 -12.5 -71.7574 85.7574 -20 -70.4566 87.7038 -12.5 -72.0315 85.5742 -12.5
5 24 -71.7574 85.7574 -20 -72.0315 85.5742 -20 -71.7574 85.7574 -12.5 -73.3642 85.2984 -22.6358
0 // Arch
0 // Primitives
0 BFC INVERTNEXT
1 16 0 120 -20 0 0 -80 -80 0 0 0 7.5 0 48\1-6cylo.dat
1 16 0 120 -12.5 0 0 -4 -4 0 0 0 -1 0 48\1-8ring20.dat
1 16 0 120 -16 0 0 -84 -84 0 0 0 3.5 0 48\1-6cylo.dat
0 // Faces
4 16 -72.0315 85.5742 -12.5 -69.28 80 -12.5 -69.28 80 -20 -72.0315 85.5742 -20
4 16 -75.7056 84 -12.5 -72.744 78 -12.5 -69.28 80 -12.5 -72.0315 85.5742 -12.5
4 16 -75.7056 84 -16 -72.744 78 -16 -72.744 78 -12.5 -75.7056 84 -12.5
4 16 -59.3964 60.6036 -12.5 -56.568 63.432 -12.5 -63.472 71.296 -12.5 -66.6456 68.8608 -12.5
4 16 -66.6456 68.8608 -12.5 -63.472 71.296 -12.5 -69.28 80 -12.5 -72.744 78 -12.5
0 // Edges
2 24 -69.28 80 -12.5 -72.0315 85.5742 -12.5
2 24 -69.28 80 -20 -72.0315 85.5742 -20
2 24 -72.744 78 -12.5 -75.7056 84 -12.5
2 24 -72.744 78 -16 -75.7056 84 -16
0 // Conditional lines
5 24 -69.28 80 -12.5 -69.28 80 -20 -63.472 71.296 -12.5 -72.0315 85.5742 -12.5
5 24 -72.744 78 -12.5 -72.744 78 -16 -66.6456 68.8608 -12.5 -75.7056 84 -12.5
0 // Vertical walls
0 // Primitives
1 16 -84 158 -14.25 0 1 0 0 0 66 1.75 0 0 rect3.dat
1 16 -76 92 -16 -8 0 0 0 0 -8 0 -1 0 1-4ndis.dat
1 16 0 120 -16 0 0 -84 -84 0 0 0 -1 0 48\1-6ndis.dat
0 BFC INVERTNEXT
1 16 -146 114 12 0 0 -10 110 0 0 0 -8 0 box2-7.dat
1 16 -150 120 10 0 0 -10 120 0 0 0 -10 0 box2-7.dat
0 // Faces
4 16 -100 240 40 -100 240 20 -100 224 20 -100 236 40
4 16 -100 240 -40 -100 236 -40 -100 224 -20 -100 240 -20
4 16 -100 240 20 -160 240 20 -156 224 20 -100 224 20
4 16 -160 240 20 -160 0 20 -156 4 20 -156 224 20
3 16 -156 4 20 -136 4 4 -156 4 4
3 16 -160 0 20 -160 0 0 -140 0 0
4 16 -136 4 -16 -84 92 -16 -84 224 -16 -136 224 -16
3 16 -136 4 -16 -84 84 -16 -84 92 -16
3 16 -136 4 -16 -76 84 -16 -84 84 -16
4 16 -136 4 -16 -72.744 78 -16 -75.7056 84 -16 -76 84 -16
3 16 -136 4 -16 -84 36 -16 -72.744 78 -16
3 16 -136 4 -16 0 36 -16 -84 36 -16
0 // Edges
2 24 -136 224 4 -136 4 4
2 24 -140 240 0 -140 0 0
2 24 -100 240 20 -100 224 20
2 24 -100 224 20 -156 224 20
2 24 -100 240 -20 -100 224 -20
0 // Underside studs
0 // Primitives
1 16 -80 232 20 1 0 0 0 -2 0 0 0 1 stud4a.dat
1 16 -40 232 20 1 0 0 0 -2 0 0 0 1 stud4a.dat
1 16 -120 228 0 1 0 0 0 -3 0 0 0 1 stud4.dat
1 16 -100 228 0 1 0 0 0 -3 0 0 0 1 stud4f1n.dat
1 16 -60 228 0 1 0 0 0 -3 0 0 0 1 stud4f4n.dat
1 16 -20 228 0 1 0 0 0 -3 0 0 0 1 stud4f4n.dat
1 16 -80 232 -20 1 0 0 0 -2 0 0 0 1 stud4a.dat
1 16 -40 232 -20 1 0 0 0 -2 0 0 0 1 stud4a.dat
1 16 -100 228 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -60 228 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -20 228 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
0 BFC INVERTNEXT
1 16 -140 238 10 0 -16 0 0 0 -2 6 0 0 box4-2p.dat
0 BFC INVERTNEXT
1 16 -97.4 234 0 0 -38.6 0 0 0 -6 16 0 0 box4-2p.dat
1 16 -140 238 13.5 0 1 0 0 0 2 2.5 0 0 rect2p.dat
1 16 -140 238 6.5 0 1 0 0 0 2 2.5 0 0 rect2p.dat
1 16 -140 238 10 0 -4 0 0 0 2 1 0 0 box4-2p.dat
1 16 -96.7 234 16.7 .7 2.4 0 0 0 6 .7 -2.4 0 box4-2p.dat
1 16 -96.7 234 -16.7 .7 2.4 0 0 0 6 -.7 2.4 0 box4-2p.dat
1 16 -61 234 12 0 -3 0 0 0 6 -1 0 0 box4-2p.dat
1 16 -59 234 12 0 3 0 0 0 6 -1 0 0 box4-2p.dat
1 16 -21 234 12 0 -3 0 0 0 6 -1 0 0 box4-2p.dat
1 16 -19 234 12 0 3 0 0 0 6 -1 0 0 box4-2p.dat
1 16 -88 234 1 1 0 0 0 0 6 0 3 0 box4-2p.dat
1 16 -72 234 1 1 0 0 0 0 6 0 3 0 box4-2p.dat
1 16 -48 234 1 1 0 0 0 0 6 0 3 0 box4-2p.dat
1 16 -32 234 1 1 0 0 0 0 6 0 3 0 box4-2p.dat
1 16 -8 234 1 1 0 0 0 0 6 0 3 0 box4-2p.dat
1 16 -88 234 -1 1 0 0 0 0 6 0 -3 0 box4-2p.dat
1 16 -72 234 -1 1 0 0 0 0 6 0 -3 0 box4-2p.dat
1 16 -48 234 -1 1 0 0 0 0 6 0 -3 0 box4-2p.dat
1 16 -32 234 -1 1 0 0 0 0 6 0 -3 0 box4-2p.dat
1 16 -8 234 -1 1 0 0 0 0 6 0 -3 0 box4-2p.dat
1 16 -61 234 -12 0 -3 0 0 0 6 -1 0 0 box4-2p.dat
1 16 -59 234 -12 0 3 0 0 0 6 -1 0 0 box4-2p.dat
1 16 -21 234 -12 0 -3 0 0 0 6 -1 0 0 box4-2p.dat
1 16 -19 234 -12 0 3 0 0 0 6 -1 0 0 box4-2p.dat
1 16 -60 228 9.5 0 0 1 0 12 0 1.5 0 0 box3u8p.dat
1 16 -20 228 9.5 0 0 1 0 12 0 1.5 0 0 box3u8p.dat
1 16 -90.5 228 0 1.5 0 0 0 12 0 0 0 1 box3u8p.dat
1 16 -80 228 0 7 0 0 0 12 0 0 0 1 box3u8p.dat
1 16 -69.5 228 0 1.5 0 0 0 12 0 0 0 1 box3u8p.dat
1 16 -50.5 228 0 -1.5 0 0 0 12 0 0 0 1 box3u8p.dat
1 16 -40 228 0 7 0 0 0 12 0 0 0 1 box3u8p.dat
1 16 -29.5 228 0 1.5 0 0 0 12 0 0 0 1 box3u8p.dat
1 16 -10.5 228 0 1.5 0 0 0 12 0 0 0 1 box3u8p.dat
1 16 -60 228 -9.5 0 0 1 0 12 0 1.5 0 0 box3u8p.dat
1 16 -20 228 -9.5 0 0 1 0 12 0 1.5 0 0 box3u8p.dat
1 16 -60 240 33.5 0 0 -1 0 -1 0 -2.5 0 0 rect2p.dat
1 16 -20 240 33.5 0 0 -1 0 -1 0 -2.5 0 0 rect2p.dat
1 16 -62.5 240 30 -1.5 0 0 0 -1 0 0 0 1 rect1.dat
1 16 -57.5 240 30 1.5 0 0 0 -1 0 0 0 1 rect1.dat
1 16 -22.5 240 30 -1.5 0 0 0 -1 0 0 0 1 rect1.dat
1 16 -17.5 240 30 1.5 0 0 0 -1 0 0 0 1 rect1.dat
1 16 -60 240 21 0 0 -1 0 -1 0 -8 0 0 rect2p.dat
1 16 -20 240 21 0 0 -1 0 -1 0 -8 0 0 rect2p.dat
1 16 -60 240 -21 0 0 -1 0 -1 0 -8 0 0 rect2p.dat
1 16 -20 240 -21 0 0 -1 0 -1 0 -8 0 0 rect2p.dat
1 16 -62.5 240 -30 -1.5 0 0 0 -1 0 0 0 1 rect1.dat
1 16 -57.5 240 -30 1.5 0 0 0 -1 0 0 0 1 rect1.dat
1 16 -22.5 240 -30 -1.5 0 0 0 -1 0 0 0 1 rect1.dat
1 16 -17.5 240 -30 1.5 0 0 0 -1 0 0 0 1 rect1.dat
1 16 -60 240 -33.5 0 0 -1 0 -1 0 -2.5 0 0 rect2p.dat
1 16 -20 240 -33.5 0 0 -1 0 -1 0 -2.5 0 0 rect2p.dat
1 16 -78.5 232 28 0 0 -17.5 -4 -1 0 -8 0 0 rect2a.dat
1 16 -40 232 28 0 0 -19 -4 -1 0 -8 0 0 rect1.dat
1 16 -40 232 -28 0 0 -19 -4 -1 0 8 0 0 rect1.dat
1 16 -62.5 236.75 31 1.5 0 0 0 0 -3.25 0 -1 0 rect.dat
1 16 -57.5 236.75 31 1.5 0 0 0 0 -3.25 0 -1 0 rect.dat
1 16 -22.5 236.75 31 1.5 0 0 0 0 -3.25 0 -1 0 rect.dat
1 16 -17.5 236.75 31 1.5 0 0 0 0 -3.25 0 -1 0 rect.dat
1 16 -62.5 236.25 29 1.5 0 0 0 0 -3.75 0 1 0 rect.dat
1 16 -57.5 236.25 29 1.5 0 0 0 0 -3.75 0 1 0 rect.dat
1 16 -22.5 236.25 29 1.5 0 0 0 0 -3.75 0 1 0 rect.dat
1 16 -17.5 236.25 29 1.5 0 0 0 0 -3.75 0 1 0 rect.dat
1 16 -62.5 236.25 -29 1.5 0 0 0 0 -3.75 0 -1 0 rect.dat
1 16 -57.5 236.25 -29 1.5 0 0 0 0 -3.75 0 -1 0 rect.dat
1 16 -22.5 236.25 -29 1.5 0 0 0 0 -3.75 0 -1 0 rect.dat
1 16 -17.5 236.25 -29 1.5 0 0 0 0 -3.75 0 -1 0 rect.dat
1 16 -62.5 236.75 -31 1.5 0 0 0 0 -3.25 0 1 0 rect.dat
1 16 -57.5 236.75 -31 1.5 0 0 0 0 -3.25 0 1 0 rect.dat
1 16 -22.5 236.75 -31 1.5 0 0 0 0 -3.25 0 1 0 rect.dat
1 16 -17.5 236.75 -31 1.5 0 0 0 0 -3.25 0 1 0 rect.dat
1 16 -78.5 238 36 17.5 0 0 0 0 2 0 1 0 rect.dat
1 16 -78.5 238 -36 17.5 0 0 0 0 2 0 -1 0 rect.dat
1 16 -40 238 36 19 0 0 0 0 2 0 1 0 rect.dat
1 16 -40 238 -36 19 0 0 0 0 2 0 -1 0 rect.dat
0 BFC INVERTNEXT
1 16 -80 232 20 6 0 0 0 -1 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -80 232 -20 6 0 0 0 -1 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -80 231 20 -6 0 0 0 -3 0 0 0 -6 2-4cyli.dat
0 BFC INVERTNEXT
1 16 -80 231 -20 6 0 0 0 -3 0 0 0 6 2-4cyli.dat
1 16 -80 228 20 6 0 0 0 1 0 0 0 -6 2-4edge.dat
1 16 -80 228 -20 6 0 0 0 1 0 0 0 6 2-4edge.dat
0 BFC INVERTNEXT
1 16 -80 231 20 0 0 -6 0 -3 0 6 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -80 231 -20 0 0 -6 0 -3 0 -6 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -80 231 20 0 0 6 0 -3 0 6 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -80 231 -20 0 0 6 0 -3 0 -6 0 0 1-4cyls.dat
1 16 -80 228 20 6 0 0 0 1 3 0 0 6 2-4edge.dat
1 16 -80 228 -20 6 0 0 0 1 3 0 0 -6 2-4edge.dat
1 16 -80 232 20 8 0 0 0 -4 0 0 0 -8 2-4cyli.dat
1 16 -80 232 -20 8 0 0 0 -4 0 0 0 8 2-4cyli.dat
1 16 -80 228 20 8 0 0 0 1 0 0 0 -8 2-4edge.dat
1 16 -80 228 -20 8 0 0 0 1 0 0 0 8 2-4edge.dat
1 16 -80 232 20 0 0 -8 0 -4 0 8 0 0 1-4cyls.dat
1 16 -80 232 -20 0 0 -8 0 -4 0 -8 0 0 1-4cyls.dat
1 16 -80 232 20 0 0 8 0 -4 0 8 0 0 1-4cyls.dat
1 16 -80 232 -20 0 0 8 0 -4 0 -8 0 0 1-4cyls.dat
1 16 -80 228 20 8 0 0 0 1 4 0 0 8 2-4edge.dat
1 16 -80 228 -20 8 0 0 0 1 4 0 0 -8 2-4edge.dat
0 BFC INVERTNEXT
1 16 -40 232 20 6 0 0 0 -1 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -40 232 -20 6 0 0 0 -1 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -40 231 20 -6 0 0 0 -3 0 0 0 -6 2-4cyli.dat
0 BFC INVERTNEXT
1 16 -40 231 -20 6 0 0 0 -3 0 0 0 6 2-4cyli.dat
1 16 -40 228 20 6 0 0 0 1 0 0 0 -6 2-4edge.dat
1 16 -40 228 -20 6 0 0 0 1 0 0 0 6 2-4edge.dat
0 BFC INVERTNEXT
1 16 -40 231 20 0 0 -6 0 -3 0 6 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -40 231 -20 0 0 -6 0 -3 0 -6 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -40 231 20 0 0 6 0 -3 0 6 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -40 231 -20 0 0 6 0 -3 0 -6 0 0 1-4cyls.dat
1 16 -40 228 20 6 0 0 0 1 3 0 0 6 2-4edge.dat
1 16 -40 228 -20 6 0 0 0 1 3 0 0 -6 2-4edge.dat
1 16 -40 232 20 8 0 0 0 -4 0 0 0 -8 2-4cyli.dat
1 16 -40 232 -20 8 0 0 0 -4 0 0 0 8 2-4cyli.dat
1 16 -40 228 20 8 0 0 0 1 0 0 0 -8 2-4edge.dat
1 16 -40 228 -20 8 0 0 0 1 0 0 0 8 2-4edge.dat
1 16 -40 232 20 0 0 -8 0 -4 0 8 0 0 1-4cyls.dat
1 16 -40 232 -20 0 0 -8 0 -4 0 -8 0 0 1-4cyls.dat
1 16 -40 232 20 0 0 8 0 -4 0 8 0 0 1-4cyls.dat
1 16 -40 232 -20 0 0 8 0 -4 0 -8 0 0 1-4cyls.dat
1 16 -40 228 20 8 0 0 0 1 4 0 0 8 2-4edge.dat
1 16 -40 228 -20 8 0 0 0 1 4 0 0 -8 2-4edge.dat
0 // Faces
3 16 -100 240 40 -19 240 36 -21 240 36
3 16 -100 240 40 -21 240 36 -59 240 36
3 16 -100 240 40 -59 240 36 -61 240 36
3 16 -100 240 40 -61 240 36 -96 240 36
4 16 -100 240 20 -100 240 40 -96 240 36 -96 240 17.4
3 16 -100 240 20 -96 240 17.4 -97.4 240 16
3 16 -100 240 20 -97.4 240 16 -136 240 16
4 16 -160 240 20 -100 240 20 -136 240 16 -140 240 16
3 16 -160 240 20 -140 240 16 -156 240 16
4 16 -160 240 20 -156 240 16 -156 240 4 -160 240 0
4 16 -160 240 0 -156 240 4 -140 240 4 -140 240 0
3 16 -136 240 16 -140 240 11 -140 240 16
3 16 -136 240 16 -140 240 9 -140 240 11
3 16 -136 240 16 -140 240 4 -140 240 9
3 16 -136 240 16 -140 240 0 -140 240 4
4 16 -136 240 16 -136 240 -16 -140 240 -20 -140 240 0
4 16 -100 240 -20 -140 240 -20 -136 240 -16 -97.4 240 -16
3 16 -100 240 -20 -97.4 240 -16 -96 240 -17.4
4 16 -100 240 -20 -96 240 -17.4 -96 240 -36 -100 240 -40
3 16 -100 240 -40 -96 240 -36 -61 240 -36
3 16 -100 240 -40 -61 240 -36 -59 240 -36
3 16 -100 240 -40 -59 240 -36 -21 240 -36
3 16 -100 240 -40 -21 240 -36 -19 240 -36
4 16 -59 240 31 -59 240 29 -61 240 29 -61 240 31
4 16 -19 240 31 -19 240 29 -21 240 29 -21 240 31
4 16 -59 240 13 -59 240 11 -61 240 11 -61 240 13
4 16 -19 240 13 -19 240 11 -21 240 11 -21 240 13
4 16 -87 240 1 -87 240 -1 -89 240 -1 -89 240 1
4 16 -71 240 1 -71 240 -1 -73 240 -1 -73 240 1
4 16 -47 240 1 -47 240 -1 -49 240 -1 -49 240 1
4 16 -31 240 1 -31 240 -1 -33 240 -1 -33 240 1
4 16 -7 240 1 -7 240 -1 -9 240 -1 -9 240 1
4 16 -59 240 -11 -59 240 -13 -61 240 -13 -61 240 -11
4 16 -19 240 -11 -19 240 -13 -21 240 -13 -21 240 -11
4 16 -59 240 -29 -59 240 -31 -61 240 -31 -61 240 -29
4 16 -19 240 -29 -19 240 -31 -21 240 -31 -21 240 -29
4 16 -96 240 17.4 -96 240 36 -96 236 36 -96 228 20
3 16 -96 240 17.4 -96 228 20 -96 228 17.414
3 16 -96 240 -17.4 -96 228 -17.414 -96 228 -20
4 16 -96 240 -17.4 -96 228 -20 -96 236 -36 -96 240 -36
4 16 -61 240 36 -61 240 31 -61 233.5 31 -61 236 36
4 16 -61 228 13 -61 232.5 29 -61 240 29 -61 240 13
3 16 -61 228 13 -61 228 20 -61 232.5 29
3 16 -61 228 -13 -61 232.5 -29 -61 228 -20
4 16 -61 228 -13 -61 240 -13 -61 240 -29 -61 232.5 -29
4 16 -61 240 -36 -61 236 -36 -61 233.5 -31 -61 240 -31
4 16 -59 240 36 -59 236 36 -59 233.5 31 -59 240 31
4 16 -59 228 13 -59 240 13 -59 240 29 -59 232.5 29
3 16 -59 228 13 -59 232.5 29 -59 228 20
3 16 -59 228 -13 -59 228 -20 -59 232.5 -29
4 16 -59 228 -13 -59 232.5 -29 -59 240 -29 -59 240 -13
4 16 -59 240 -36 -59 240 -31 -59 233.5 -31 -59 236 -36
4 16 -21 240 36 -21 240 31 -21 233.5 31 -21 236 36
4 16 -21 228 13 -21 232.5 29 -21 240 29 -21 240 13
3 16 -21 228 13 -21 228 20 -21 232.5 29
3 16 -21 228 -13 -21 232.5 -29 -21 228 -20
4 16 -21 228 -13 -21 240 -13 -21 240 -29 -21 232.5 -29
4 16 -21 240 -36 -21 236 -36 -21 233.5 -31 -21 240 -31
4 16 -19 240 36 -19 236 36 -19 233.5 31 -19 240 31
4 16 -19 228 13 -19 240 13 -19 240 29 -19 232.5 29
3 16 -19 228 13 -19 232.5 29 -19 228 20
3 16 -19 228 -13 -19 228 -20 -19 232.5 -29
4 16 -19 228 -13 -19 232.5 -29 -19 240 -29 -19 240 -13
4 16 -19 240 -36 -19 240 -31 -19 233.5 -31 -19 236 -36
4 16 -64 240 31 -64 240 29 -64 232.5 29 -64 233.5 31
4 16 -64 240 -31 -64 233.5 -31 -64 232.5 -29 -64 240 -29
4 16 -56 240 31 -56 233.5 31 -56 232.5 29 -56 240 29
4 16 -56 240 -31 -56 240 -29 -56 232.5 -29 -56 233.5 -31
4 16 -24 240 31 -24 240 29 -24 232.5 29 -24 233.5 31
4 16 -24 240 -31 -24 233.5 -31 -24 232.5 -29 -24 240 -29
4 16 -16 240 31 -16 233.5 31 -16 232.5 29 -16 240 29
4 16 -16 240 -31 -16 240 -29 -16 232.5 -29 -16 233.5 -31
0 // Edges
2 24 -100 240 40 -100 240 20
2 24 -100 240 20 -160 240 20
2 24 -140 240 -20 -100 240 -20
2 24 -100 240 -20 -100 240 -40
2 24 -96 240 36 -96 240 17.4
2 24 -96 240 -36 -96 240 -17.4
2 24 -96 228 20 -96 228 17.4
2 24 -96 228 -20 -96 228 -17.4
2 24 -96 228 -20 -96 236 -36
2 24 -61 236 36 -61 233.5 31
2 24 -61 228 20 -61 232.5 29
2 24 -61 228 20 -61 228 13
2 24 -61 228 -20 -61 228 -13
2 24 -61 228 -20 -61 232.5 -29
2 24 -61 236 -36 -61 233.5 -31
2 24 -59 236 36 -59 233.5 31
2 24 -59 228 20 -59 232.5 29
2 24 -59 228 20 -59 228 13
2 24 -59 228 -20 -59 228 -13
2 24 -59 228 -20 -59 232.5 -29
2 24 -59 236 -36 -59 233.5 -31
2 24 -21 236 36 -21 233.5 31
2 24 -21 228 20 -21 232.5 29
2 24 -21 228 20 -21 228 13
2 24 -21 228 -20 -21 228 -13
2 24 -21 228 -20 -21 232.5 -29
2 24 -21 236 -36 -21 233.5 -31
2 24 -19 236 36 -19 233.5 31
2 24 -19 228 20 -19 232.5 29
2 24 -19 228 20 -19 228 13
2 24 -19 228 -20 -19 228 -13
2 24 -19 228 -20 -19 232.5 -29
2 24 -19 236 -36 -19 233.5 -31
2 24 -64 233.5 31 -64 232.5 29
2 24 -64 233.5 -31 -64 232.5 -29
2 24 -56 233.5 31 -56 232.5 29
2 24 -56 233.5 -31 -56 232.5 -29
2 24 -24 233.5 31 -24 232.5 29
2 24 -24 233.5 -31 -24 232.5 -29
2 24 -16 233.5 31 -16 232.5 29
2 24 -16 233.5 -31 -16 232.5 -29

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Creative Commons Attribution License information

Website copyright ©2003-2026 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor, endorse, or authorize this site. Visit the official Lego website at http://www.lego.com
