File Detail parts/s/1748s01.dat

Official File parts/s/1748s01.dat

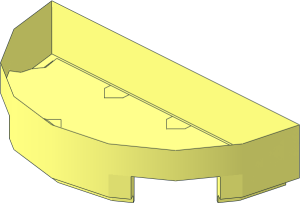

~Tile 1 x 2 Half Round without Top Surface

File Header:

0 ~Tile  1 x  2 Half Round without Top Surface
0 Name: s\1748s01.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Subpart UPDATE 2023-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02

Show contents
