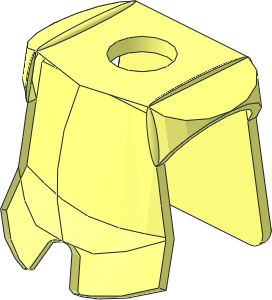

0 ~Minifig Armour Plate without Front
0 Name: s\2587s01.dat
0 Author: Bernd Broich [bbroich]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2009-12-08 [Philo] Subparted for patterned parts
0 !HISTORY 2009-12-29 [PTadmin] Official Update 2009-03
0 !HISTORY 2021-10-15 [Lasse_Deleuran] Updated after correction of 1-4ring5.dat
0 !HISTORY 2022-03-10 [MagFors] Closed some thin gaps
0 !HISTORY 2025-08-18 [WUIt] Subfiled for symmetry, removed T-junctions, fixed gaps, aligned edgesShow file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2587s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\2587s02.dat
0 // Inner Back Plane
2 24 -16 32 10 16 32 10
2 24 -19 29 10 -15.379 8 10
2 24 14 0 10 -14 0 10
4 16 -16 32 10 -16 32 11.5 16 32 11.5 16 32 10
4 16 19 29 10 -19 29 10 -16 32 10 16 32 10
4 16 -14 0 10 -15.379 8 10 15.376 8 10 14 0 10
4 16 -15.379 8 10 -19 29 10 19 29 10 15.376 8 10
0 // Outer Back Plane
2 24 -11.7 11 14 -13.483 -3 12
2 24 -11.7 11 14 11.7 11 14
2 24 -13.483 -3 12 13.48 -3 12
2 24 -14 19 14 -19 29 12.067
2 24 -14 19 14 14 19 14
2 24 -16 32 11.5 16 32 11.5
4 16 -11.7 11 14 -13.483 -3 12 13.48 -3 12 11.7 11 14
4 16 -14 19 14 -11.7 11 14 11.7 11 14 14 19 14
4 16 14 19 14 19 29 12.067 -19 29 12.067 -14 19 14
4 16 16 32 11.5 -16 32 11.5 -19 29 12.067 19 29 12.067
5 24 19 29 12.067 -19 29 12.067 -14 19 14 16 32 11.5
0 // Top
1 16 0 -3 0 6 0 0 0 1 0 0 0 -6 4-4edge.dat
1 16 0 -3 0 6 0 0 0 1 0 0 0 -6 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -3 0 6 0 0 0 3 0 0 0 -6 4-4cyli.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 -6 4-4edge.dat
1 16 0 0 0 6 0 0 0 -1 0 0 0 -6 4-4ndis.dat
3 16 13.48 -3 -12 -13.483 -3 -12 0 -3 -15
4 16 -14 0 -10 -6 0 -6 6 0 -6 14 0 -10
4 16 -14 0 10 14 0 10 6 0 6 -6 0 6
4 16 6 -3 -6 -6 -3 -6 -13.483 -3 -12 13.48 -3 -12
4 16 6 -3 6 13.48 -3 12 -13.483 -3 12 -6 -3 6
0 // Outer Front Lines
2 24 -13.483 -3 -12 0 -3 -15
2 24 0 -3 -15 0 4.22 -18.7
2 24 0 11.37 -20.28 0 17.5 -20.36
2 24 0 26 -19 0 17.5 -20.36
2 24 0 4.22 -18.7 0 11.37 -20.28
0 // Inner Front
2 24 14 0 -10 -14 0 -10
3 16 -6.9 0 -10 6.9 0 -10 0 23.5 -13
5 24 0 27 -17.5 0 23.5 -13 6.9 23.3 -12.3 -6.9 23.3 -12.3
5 24 0 26 -19 0 27 -17.5 1.148 27.114 -17.576 -1.148 27.114 -17.576Status
