File Detail parts/s/2609s02.dat

Official File parts/s/2609s02.dat

File Header:

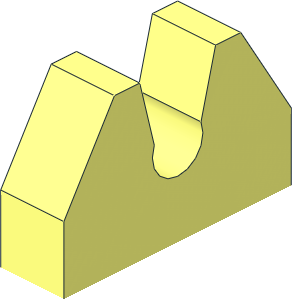

0 ~Magnet Holder Tile  2 x  2 - Short Arm
0 Name: s\2609s02.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Subpart UPDATE 2025-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-03-26 [Holly-Wood] Fixed geometry
0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06

Show contents

1 16 -2.5 -6.25 0 0 1 0 0 0 2 2 0 0 2-4ndis.dat
1 16 -2.5 -6.25 0 0 1 0 0 0 -2 2 0 0 1-16tndis.dat
1 16 2.5 -6.25 0 0 -1 0 0 0 -2 -2 0 0 1-16tndis.dat
1 16 2.5 -6.25 0 0 -1 0 0 0 2 2 0 0 2-4ndis.dat
1 16 -2.5 -6.25 0 0 1 0 0 0 -2 -2 0 0 1-16tndis.dat
1 16 2.5 -6.25 0 0 -1 0 0 0 -2 2 0 0 1-16tndis.dat
0 BFC INVERTNEXT
1 16 2.5 -6.25 0 0 -5 0 2 0 0 0 0 2 5-16cylo.dat
0 BFC INVERTNEXT
1 16 2.5 -6.25 0 0 -5 0 2 0 0 0 0 -2 5-16cylo.dat

1 16 0 -2.5 -9 0 0 2.5 -2.5 0 0 0 1 0 rect2p.dat
1 16 0 -8.25 -7 0 0 2.5 3.25 1 0 -2 0 0 rect.dat
1 16 0 -11.5 -4 0 0 2.5 0 1 0 1 0 0 rect2p.dat
1 16 0 -9.2577 -2.4239 0 0 2.5 2.2423 1 0 .5761 0 0 rect.dat
1 16 0 -9.2577 2.4239 0 0 2.5 -2.2423 1 0 .5761 0 0 rect.dat
1 16 0 -11.5 4 0 0 2.5 0 1 0 1 0 0 rect2p.dat
1 16 0 -8.25 7 0 0 2.5 3.25 1 0 2 0 0 rect.dat
1 16 0 -2.5 9 0 0 2.5 2.5 0 0 0 -1 0 rect2p.dat

4 16 2.5 -11.5 -3 2.5 -11.5 -5 2.5 -7.0154 -2 2.5 -7.0154 -1.8478
4 16 2.5 -11.5 -5 2.5 -5 -9 2.5 -6.25 -2 2.5 -7.0154 -2
4 16 2.5 -6.25 -2 2.5 -5 -9 2.5 0 -9 2.5 -4.25 -2
3 16 2.5 0 -9 2.5 -4.25 0 2.5 -4.25 -2
3 16 2.5 -4.25 0 2.5 0 -9 2.5 0 9
3 16 2.5 -4.25 2 2.5 -4.25 0 2.5 0 9
4 16 2.5 0 9 2.5 -5 9 2.5 -6.25 2 2.5 -4.25 2
4 16 2.5 -6.25 2 2.5 -5 9 2.5 -11.5 5 2.5 -7.0154 2
4 16 2.5 -7.0154 2 2.5 -11.5 5 2.5 -11.5 3 2.5 -7.0154 1.8478

4 16 -2.5 -7.0154 -2 -2.5 -11.5 -5 -2.5 -11.5 -3 -2.5 -7.0154 -1.8478
4 16 -2.5 -6.25 -2 -2.5 -5 -9 -2.5 -11.5 -5 -2.5 -7.0154 -2
4 16 -2.5 0 -9 -2.5 -5 -9 -2.5 -6.25 -2 -2.5 -4.25 -2
3 16 -2.5 -4.25 0 -2.5 0 -9 -2.5 -4.25 -2
3 16 -2.5 0 -9 -2.5 -4.25 0 -2.5 0 9
3 16 -2.5 -4.25 0 -2.5 -4.25 2 -2.5 0 9
4 16 -2.5 -6.25 2 -2.5 -5 9 -2.5 0 9 -2.5 -4.25 2
4 16 -2.5 -11.5 5 -2.5 -5 9 -2.5 -6.25 2 -2.5 -7.0154 2
4 16 -2.5 -11.5 3 -2.5 -11.5 5 -2.5 -7.0154 2 -2.5 -7.0154 1.8478

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Evert-Jan Boer [ejboer]

initially submitted the part.

2022-01-24 20:30:02

Evert-Jan Boer [ejboer]

submitted a new version of the part.

2022-11-19 10:55:01

Updated, measured the part and came to these dimensions. I know this changes the location of where the magnet is, should there be a second part for 2609a if this subfile is approved?

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2025-03-22 14:47:12

arm is too thin, should be 5x18 LDU
should use two 5-16cylos instead of a rotated 5-8 at -6.25 instead of -7
shold be used in the updated 2609a
could be reused in 2607.dat (same geometry)

Rene Rechthaler [Blechtaler]

made the following comment.

2025-03-23 09:53:26

the notch could be something like that:
1 16 -2.5 -6.25 0 0 1 0 0 0 2 2 0 0 2-4ndis.dat
1 16 -2.5 -6.25 0 0 1 0 0 0 -2 2 0 0 1-16tndis.dat
1 16 2.5 -6.25 0 0 -1 0 0 0 -2 -2 0 0 1-16tndis.dat
1 16 2.5 -6.25 0 0 -1 0 0 0 2 2 0 0 2-4ndis.dat
1 16 -2.5 -6.25 0 0 1 0 0 0 -2 -2 0 0 1-16tndis.dat
1 16 2.5 -6.25 0 0 -1 0 0 0 -2 2 0 0 1-16tndis.dat
0 BFC INVERTNEXT
1 16 2.5 -6.25 0 0 -5 0 2 0 0 0 0 2 5-16cylo.dat
0 BFC INVERTNEXT
1 16 2.5 -6.25 0 0 -5 0 2 0 0 0 0 -2 5-16cylo.dat

Willy Tschager [Holly-Wood]

submitted a new version of the part.

2025-03-26 20:32:30

Fixed geometry

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2025-03-26 20:37:46

part is now too high (the old height of 11.5 was correct)
the clip is too much closed, should use 2x 5-16cylo

Willy Tschager [Holly-Wood]

made the following comment.

2025-03-26 21:16:18

* I didn't change the height. Just copied the old clip from a. Again feel to add your code.
