Official File parts/s/2609s03.dat

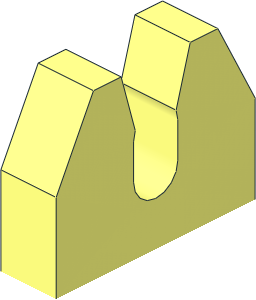

~Magnet Holder Long Arm
File Header:
0 ~Magnet Holder Long Arm 0 Name: s\2609s03.dat 0 Author: Evert-Jan Boer [ejboer] 0 !LDRAW_ORG Subpart UPDATE 2025-06 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2025-05-08 [KnightOfTarenta] Geometry fixed 0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06
Show contents
0 // Outer Surface 1 16 20 -5.75 0 0 -1 0 0 0 2 2 0 0 2-4ndis.dat 1 16 20 -8.75 0 0 -1 0 0 0 -2 2 0 0 1-16tang.dat 1 16 20 -8.75 0 0 -1 0 0 0 -2 -2 0 0 1-16tang.dat 3 16 20 0 9 20 -3.75 2 20 -3.75 0 3 16 20 -8.75 2 20 -5.75 2 20 -7.5 9 3 16 20 -14 5.625 20 -14 3.125 20 -7.5 9 3 16 20 -7.5 9 20 -9.1478 2 20 -8.75 2 3 16 20 -5.75 -2 20 -8.75 -2 20 -7.5 -9 3 16 20 -14 -3.125 20 -14 -5.625 20 -7.5 -9 3 16 20 -9.1478 -2 20 -7.5 -9 20 -8.75 -2 4 16 20 0 9 20 -3.75 0 20 -3.75 -2 20 0 -9 4 16 20 0 9 20 -7.5 9 20 -5.75 2 20 -3.75 2 4 16 20 -9.5154 1.8478 20 -9.1478 2 20 -7.5 9 20 -14 3.125 4 16 20 -5.75 -2 20 -7.5 -9 20 0 -9 20 -3.75 -2 4 16 20 -7.5 -9 20 -9.1478 -2 20 -9.5154 -1.8478 20 -14 -3.125 0 // Inner Surface 1 16 15 -5.75 0 0 1 0 0 0 2 2 0 0 2-4ndis.dat 1 16 15 -8.75 0 0 1 0 0 0 -2 2 0 0 1-16tang.dat 1 16 15 -8.75 0 0 1 0 0 0 -2 -2 0 0 1-16tang.dat 3 16 15 -3.75 2 15 0 9 15 -3.75 0 3 16 15 -5.75 2 15 -8.75 2 15 -7.5 9 3 16 15 -14 3.125 15 -14 5.625 15 -7.5 9 3 16 15 -9.1478 2 15 -7.5 9 15 -8.75 2 3 16 15 -8.75 -2 15 -5.75 -2 15 -7.5 -9 3 16 15 -14 -5.625 15 -14 -3.125 15 -7.5 -9 3 16 15 -7.5 -9 15 -9.1478 -2 15 -8.75 -2 4 16 15 0 9 15 0 -9 15 -3.75 -2 15 -3.75 0 4 16 15 -5.75 2 15 -7.5 9 15 0 9 15 -3.75 2 4 16 15 -7.5 9 15 -9.1478 2 15 -9.5154 1.8478 15 -14 3.125 4 16 15 0 -9 15 -7.5 -9 15 -5.75 -2 15 -3.75 -2 4 16 15 -9.5154 -1.8478 15 -9.1478 -2 15 -7.5 -9 15 -14 -3.125 0 // Side Surfaces 0 BFC INVERTNEXT 1 16 15 -5.75 0 0 5 0 0 0 2 2 0 0 2-4cylo.dat 0 BFC INVERTNEXT 1 16 15 -8.75 0 0 5 0 0 0 -2 2 0 0 1-16cylo.dat 0 BFC INVERTNEXT 1 16 15 -8.75 0 0 5 0 0 0 -2 -2 0 0 1-16cylo.dat 1 16 17.5 -3.75 -9 2.5 0 0 0 0 -3.75 0 1 0 rect3.dat 1 16 17.5 -14 -4.375 0 0 -2.5 0 1 0 1.25 0 0 rect.dat 1 16 17.5 -3.75 9 -2.5 0 0 0 0 -3.75 0 -1 0 rect3.dat 1 16 17.5 -14 4.375 0 0 2.5 0 1 0 -1.25 0 0 rect.dat 4 16 20 -14 -5.625 15 -14 -5.625 15 -7.5 -9 20 -7.5 -9 4 16 15 -9.5154 -1.8478 15 -14 -3.125 20 -14 -3.125 20 -9.5154 -1.8478 4 16 20 -7.5 9 15 -7.5 9 15 -14 5.625 20 -14 5.625 4 16 20 -14 3.125 15 -14 3.125 15 -9.5154 1.8478 20 -9.5154 1.8478 1 16 17.5 -7.25 -2 0 0 2.5 -1.5 0 0 0 -1 0 rect2p.dat 1 16 17.5 -7.25 2 0 0 -2.5 -1.5 0 0 0 1 0 rect2p.dat 0 // Edge Lines 2 24 20 -7.5 9 20 -14 5.625 2 24 15 -14 5.625 15 -7.5 9 2 24 20 -9.5154 -1.8478 20 -14 -3.125 2 24 15 -14 -3.125 15 -9.5154 -1.8478 2 24 20 -14 -5.625 20 -7.5 -9 2 24 15 -9.5154 1.8478 15 -14 3.125 2 24 20 -14 3.125 20 -9.5154 1.8478 2 24 15 -7.5 -9 15 -14 -5.625 2 24 20 -9.5154 -1.8478 15 -9.5154 -1.8478 2 24 15 -9.5154 1.8478 20 -9.5154 1.8478
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Evert-Jan Boer [ejboer]
Part Reviewer
initially submitted the part.
2022-01-24 20:30:02
Evert-Jan Boer [ejboer]
Part Reviewer
submitted a new version of the part.
2022-11-19 10:55:01
Changed overall shape
Chris Böhnke [KnightOfTarenta]
Part Header Editor
posted a vote of Hold.
2025-03-18 16:53:55
The difference between b and c version is not as noticable as that on the real part.
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Hold.
2025-03-18 16:55:59
front tooth has overlap at top and front slope
should the hole get split and longer?
Chris Böhnke [KnightOfTarenta]
Part Header Editor
made the following comment.
2025-03-31 19:46:19
How is the rework going?

Finishing this would affect all 3 versions of this, as well as the 2 other holders.
Chris Böhnke [KnightOfTarenta]
Part Header Editor
submitted a new version of the part.
2025-05-08 17:43:08
Fixed geometry.
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-05-08 17:51:06
should the cond from clip inside to outside be a full edge?
Chris Böhnke [KnightOfTarenta]
Part Header Editor
submitted a new version of the part.
2025-05-08 18:12:00
*added missing edges near clip hole
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2025-05-13 10:18:47
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2025-05-18 06:28:10
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Admin Review.
2025-06-21 07:21:22
Orion Pobursky [OrionP]
Part Library Admin
2025-06-26 01:28:19
Release 2025-06
