Official File parts/s/26287s01.dat
File Header:

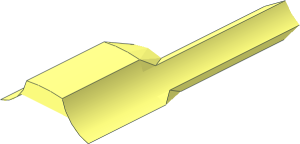

0 ~Technic Axle Joiner 3L Quarter
0 Name: s\26287s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2023-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02
Show contents
0 BFC INVERTNEXT
1 16 7.698 -7.698 12.5684 -0.88768 0 -4.23665 3.62345 0 -2.36809 0 -25.1368 0 1-8cyli.dat
0 BFC INVERTNEXT
1 16 7.698 -7.698 -30 -4.25386 0 0.80119 -0.80119 0 4.25386 0 15 0 1-4cyli.dat
1 16 0 4.447 -30 3.444 0 -17.314 -12.946 0 -2.575 0 15 0 48\1-16cylo.dat
0 BFC INVERTNEXT
1 16 -7.698 -7.698 -30 -0.80119 0 4.25386 4.25386 0 -0.80119 0 15 0 1-4cyli.dat
0 BFC INVERTNEXT
1 16 -7.698 -7.698 -15 0.88768 0 4.23665 3.62345 0 -2.36809 0 2.4316 0 1-8cyli.dat
0 BFC INVERTNEXT
1 16 7.698 -7.698 -14.9999 -3.62347 0 2.3681 0.88768 0 4.23667 0 2.43162 0 1-8cyli.dat
2 24 6.8103 -4.0746 -12.5684 6.8103 -4.0746 12.5684
2 24 6.3747 -2.6405 10 6.3747 -2.6405 -10
4 16 6.8103 -4.0746 -12.5684 6.3747 -2.6405 -10 6.3747 -2.6405 10 6.8103 -4.0746 12.5684
2 24 4.0746 -6.8103 -12.5684 4.0746 -6.8103 12.5684
2 24 2.6405 -6.3747 10 2.6405 -6.3747 -10
4 16 2.6405 -6.3747 10 2.6405 -6.3747 -10 4.0746 -6.8103 -12.5684 4.0746 -6.8103 12.5684
2 24 2.6405 -6.3747 10 4.0746 -6.8103 12.5684
3 16 -4.0746 -6.8103 -12.5684 -4.0745 -6.8103 -15 -3.4442 -8.4993 -15
3 16 4.0745 -6.8103 -15 4.0746 -6.8103 -12.5684 3.4442 -8.4993 -15
3 16 -4.0746 -6.8103 -12.5684 -3.4442 -8.4993 -15 -2.6405 -6.3747 -10
3 16 0 -6.9002 -10 -1.1543 -8.724 -15 1.1549 -8.7237 -15
3 16 -1.1543 -8.724 -15 0 -6.9002 -10 -3.4442 -8.4993 -15
3 16 -3.4442 -8.4993 -15 0 -6.9002 -10 -2.6405 -6.3747 -10
2 24 -4.0746 -6.8103 -12.5684 -3.4442 -8.4993 -15
2 24 -2.6405 -6.3747 -10 -4.0746 -6.8103 -12.5684
2 24 4.0746 -6.8103 -12.5684 3.4442 -8.4992 -15
2 24 4.0746 -6.8103 -12.5684 2.6405 -6.3748 -10
3 16 4.0746 -6.8103 -12.5684 2.6405 -6.3748 -10 3.4442 -8.4992 -15
3 16 3.4442 -8.4992 -15 2.6405 -6.3748 -10 0 -6.9002 -10
3 16 3.4442 -8.4992 -15 0 -6.9002 -10 1.1549 -8.7237 -15
5 24 -4.0746 -6.8103 -12.5684 -4.0745 -6.8103 -15 -3.4442 -8.4993 -15 -5.2565 -5.2566 -15
5 24 4.0745 -6.8103 -15 4.0746 -6.8103 -12.5684 3.4442 -8.4993 -15 5.2566 -5.2565 -14.9999
5 24 -3.4442 -8.4993 -15 -2.6405 -6.3747 -10 -4.0746 -6.8103 -12.5684 0 -6.9002 -10
5 24 0 -6.9002 -10 -1.1543 -8.724 -15 1.1549 -8.7237 -15 -3.4442 -8.4993 -15
5 24 1.1549 -8.7237 -15 0 -6.9002 -10 -1.1543 -8.724 -15 3.4442 -8.4992 -15
5 24 0 -6.9002 -10 -3.4442 -8.4993 -15 -1.1543 -8.724 -15 -2.6405 -6.3747 -10
5 24 2.6405 -6.3748 -10 3.4442 -8.4992 -15 4.0746 -6.8103 -12.5684 0 -6.9002 -10
5 24 0 -6.9002 -10 3.4442 -8.4992 -15 2.6405 -6.3748 -10 1.1549 -8.7237 -15
2 24 3.444 -8.499 -15 3.444 -8.499 -30
2 24 -3.4442 -8.4992 -15 -3.4442 -8.4992 -30
1 16 7.698 -7.698 -30 -4.25386 0 0.80119 -0.80119 0 4.25386 0 1 0 1-4edge.dat
1 16 -7.698 -7.698 -30 -0.80119 0 4.25386 4.25386 0 -0.80119 0 1 0 1-4edge.dat
3 16 6.8103 -4.0746 -12.5684 6.8103 -4.0745 -15 8.4993 -3.4442 -15
3 16 -6.8103 -4.0745 -15 -6.8103 -4.0746 -12.5684 -8.4993 -3.4442 -15
5 24 6.8103 -4.0746 -12.5684 6.8103 -4.0745 -15 8.4993 -3.4442 -15 5.2566 -5.2565 -14.9999
5 24 -6.8103 -4.0745 -15 -6.8103 -4.0746 -12.5684 -8.4993 -3.4442 -15 -5.2565 -5.2566 -15
1 16 0 4.447 -30 3.444 0 -17.314 -12.946 0 -2.575 0 1 0 48\1-16chrd.dat
1 16 7.698 -7.698 -30 -4.25386 0 0.80119 -0.80119 0 4.25386 0 1 0 1-4tang.dat
1 16 -7.698 -7.698 -30 -0.80119 0 4.25386 4.25386 0 -0.80119 0 1 0 1-4tang.dat
4 16 3.444 -8.499 -30 -3.4442 -8.4992 -30 -3.6035 -7.6531 -30 3.6035 -7.6531 -30
4 16 4.0745 -6.8103 -30 3.6035 -7.6531 -30 -3.6035 -7.6531 -30 -4.0745 -6.8103 -30
4 16 0 -6 -30 4.5455 -5.9674 -30 4.0745 -6.8103 -30 -4.0745 -6.8103 -30
3 16 0 -6 -30 -4.0745 -6.8103 -30 -4.5455 -5.9674 -30
2 24 8.4992 -3.4441 -15 8.4992 -3.4441 -30
2 24 -8.4993 -3.4442 -15 -8.4992 -3.4441 -30
2 24 -8.4993 -3.4442 -15 -6.8103 -4.0746 -12.5684
2 24 6.8103 -4.0746 -12.5684 8.4992 -3.4441 -15
3 16 6.3747 -2.6405 -10 6.8103 -4.0746 -12.5684 8.4992 -3.4441 -15
2 24 6.3747 -2.6405 -10 6.8103 -4.0746 -12.5684
3 16 -6.8103 -4.0746 -12.5684 -6.3747 -2.6405 -10 -8.4992 -3.4441 -15
2 24 -6.8103 -4.0746 -12.5684 -6.3747 -2.6405 -10
