Official File parts/s/2656s01.dat
File Header:

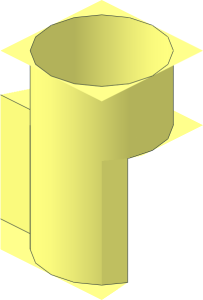

0 ~Bottom Hole for Window/Door Bump, 5 Ldu Bottom Stud Cavity
0 Name: s\2656s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2025-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-01-20 [OrionP] Official Update 2025-01
Show contents
0 // Derived from s\42205s02.dat
3 16 9.7678 0 -6.7678 10.2808 0 -6 10.5 0 -7.5
1 16 8 0 -5 0 0 2.5 0 -1 0 -2.5 0 0 1-8ndis.dat
1 16 8 0 -5 0 0 -2.5 0 -1 0 -2.5 0 0 1-8ndis.dat
0 BFC INVERTNEXT
1 16 8 -5 -5 -1.76777 0 1.76777 0 5 0 -1.76777 0 -1.76777 1-4cyli.dat
1 16 8 0 -5 -1.76777 0 1.76777 0 1 0 -1.76777 0 -1.76777 1-4edge.dat
4 16 9.7678 0 -6.7678 9.7678 -5 -6.7678 10.2808 -5 -6 10.2808 0 -6
4 16 5.7192 0 -6 5.7192 -5 -6 6.2322 -5 -6.7678 6.2322 0 -6.7678
2 24 10.2808 -5 -6 10.2808 0 -6
2 24 10.2808 0 -6 9.7678 0 -6.7678
2 24 5.7192 0 -6 6.2322 0 -6.7678
1 16 4.8596 -2.5 -6 0 0 0.8596 -2.5 0 0 0 -1 0 rect3.dat
5 24 9.7678 0 -6.7678 9.7678 -5 -6.7678 10.3097 0 -5.9567 8.9567 0 -7.3097
5 24 6.2322 0 -6.7678 6.2322 -5 -6.7678 7.0433 0 -7.3097 5.6903 0 -5.9567
1 16 8 -5 -5 -2.5 0 0 0 -1 0 0 0 2.5 2-4ndis.dat
3 16 4 -5 -6 5.6903 -5 -5.9567 5.7192 -5 -6
1 16 8 -5 -5 -2.3097 0 -0.95671 0 -1 0 -0.95671 0 2.3097 5-8edge.dat
2 24 5.6903 -5 -5.9567 5.7192 -5 -6
2 24 10.3097 -5 -5.9567 10.2808 -5 -6
0 BFC INVERTNEXT
1 16 8 -8 -5 -2.5 0 0 0 3 0 0 0 -2.5 4-4cyli.dat
1 16 8 -8 -5 -2.5 0 0 0 1 0 0 0 -2.5 4-4ndis.dat
1 16 8 -8 -5 -2.5 0 0 0 1 0 0 0 -2.5 4-4edge.dat
1 16 8 -5 -5 -2.5 0 0 0 -1 0 0 0 -2.5 1-16tang.dat
1 16 8 -5 -5 2.5 0 0 0 -1 0 0 0 -2.5 1-16tang.dat
3 16 5.5 -5 -5.4973 5.6903 -5 -5.9568 4 -5 -6
3 16 5.5 -5 -5.4973 4 -5 -6 5.4999 -5 -5
3 16 5.4999 -5 -5 4 -5 -6 5.5 -5 -2.5
4 16 5.5 0 -7.5 4 0 -6 5.7192 0 -6 6.2322 0 -6.7678
