Official File parts/s/26832s01.dat
File Header:

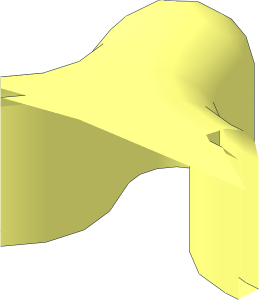

0 ~Duplo Brick Gear 8 Tooth 4 x 4 - Tooth
0 Name: s\26832s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2020-12-12 {LEGO/Unity Microgame} Original part shape
0 !HISTORY 2021-01-13 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03
Show contents
1 16 0 0 0 .92388 0 -.38268 0 1 0 .38268 0 .92388 s\26832s02.dat
1 16 -1.4787 10 49.1065 0 2.9574 0 -10 0 0 0 0 12.6304 1-4cyli.dat
2 24 1.4787 35 61.7372 -1.4787 35 61.7365
4 16 -1.4787 10 61.7369 1.4787 10 61.7369 1.4787 35 61.7372 -1.4787 35 61.7365
2 24 -1.5378 35 56.8791 1.5378 35 56.8791
4 16 -1.5378 35 56.8791 -1.4787 35 61.7365 1.4787 35 61.7372 1.5378 35 56.8791
4 16 -1.5378 8 56.8791 -1.5378 35 56.8791 1.5378 35 56.8791 1.5378 8 56.8791
4 16 1.5849 4 52.9928 -1.5849 4 52.9928 -1.5378 8 56.8791 1.5378 8 56.8791
1 16 -1.4787 10 49.1065 0 -.1534 0 0 0 -10 12.6304 0 0 1-4cyls.dat
1 16 1.4787 10 49.1065 0 .1534 0 0 0 -10 12.6304 0 0 1-4cyls.dat
3 16 -1.4787 0 49.1065 -1.6321 0 49.1065 -16.8126 0 40.5891
4 16 -1.5849 4 52.9928 1.5849 4 52.9928 14.5967 4 45.6922 -14.5967 4 45.6922
4 16 -1.4787 0 49.1065 -16.8126 0 40.5891 16.8126 0 40.5891 1.4787 0 49.1065
3 16 1.6321 0 49.1065 1.4787 0 49.1065 16.8126 0 40.5891
3 16 -21.9878 4 42.6307 -14.5967 4 45.6922 14.5967 4 45.6922
5 24 1.5849 4 52.9928 -1.5849 4 52.9928 -1.5378 8 56.8791 14.5967 4 45.6922
5 24 1.5378 8 56.8791 -1.5378 8 56.8791 1.5849 4 52.9928 -1.5378 35 56.8791
Status:
Official
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 0 0 .92388 0 -.38268 0 1 0 .38268 0 .92388 s\26832s02.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
