Official File parts/s/2694p01s01.dat
File Header:

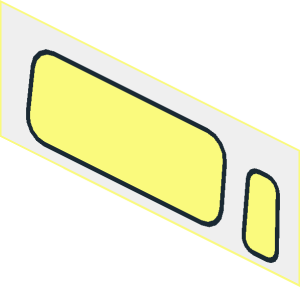

0 ~Windscreen 3 x 10 x 3 with one Large and one Small Window with Black Rounded Frame on White Background, Pattern only
0 Name: s\2694p01s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2023-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02
Show contents
1 16 -62 48.5 0 -10 0 -1.2 0 0 10 0 1 0 1-4chrd.dat
1 16 -59 24.4 0 -10 0 1.2 0 0 -10 0 1 0 1-4chrd.dat
1 16 31.7 48.5 0 10 0 -.8 0 0 10 0 1 0 1-4chrd.dat
1 16 33.7 24.4 0 10 0 .8 0 0 -10 0 1 0 1-4chrd.dat
1 16 62.5 55.5 0 -5 0 -.4 0 0 5 0 1 0 1-4chrd.dat
1 16 69.9 55.5 0 5 0 0 0 0 5 0 1 0 1-4chrd.dat
1 16 65.1 27 0 -5 0 .4 0 0 -5 0 1 0 1-4chrd.dat
1 16 70.5 27 0 5 0 0 0 0 -5 0 1 0 1-4chrd.dat
4 16 -89 1 0 -90 0 0 -90 67.0524 0 -89 66 0
4 16 -89 66 0 -90 67.0524 0 90 67.0524 0 89 66 0
4 16 89 66 0 90 67.0524 0 90 0 0 89 1 0
4 16 -90 0 0 -89 1 0 89 1 0 90 0 0
4 16 -57.8 14.4 0 -69 24.4 0 -72 48.5 0 -63.2 58.5 0
4 16 34.5 14.4 0 -57.8 14.4 0 -63.2 58.5 0 30.9 58.5 0
4 16 34.5 14.4 0 30.9 58.5 0 41.7 48.5 0 43.7 24.4 0
4 16 70.5 22 0 65.5 22 0 60.1 27 0 75.5 27 0
4 16 75.5 27 0 60.1 27 0 57.5 55.5 0 74.9 55.5 0
4 16 74.9 55.5 0 57.5 55.5 0 62.1 60.5 0 69.9 60.5 0
0 BFC NOCLIP
1 0 -62 48.5 0 -2.5 0 -.3 0 0 2.5 0 1 0 1-4ring4.dat
1 15 -62 48.5 0 -12.5 0 -1.5 0 0 12.5 0 1 0 1-4ndis.dat
1 0 -59 24.4 0 -2.5 0 .3 0 0 -2.5 0 1 0 1-4ring4.dat
1 15 -59 24.4 0 -12.5 0 1.5 0 0 -12.5 0 1 0 1-4ndis.dat
1 0 31.7 48.5 0 2.5 0 -.2 0 0 2.5 0 1 0 1-4ring4.dat
1 15 31.7 48.5 0 12.5 0 -1 0 0 12.5 0 1 0 1-4ndis.dat
1 0 33.7 24.4 0 2.5 0 .2 0 0 -2.5 0 1 0 1-4ring4.dat
1 15 33.7 24.4 0 12.5 0 1 0 0 -12.5 0 1 0 1-4ndis.dat
1 0 62.5 55.5 0 -2.5 0 -.2 0 0 2.5 0 1 0 1-4ring2.dat
1 15 62.5 55.5 0 -7.5 0 -.6 0 0 7.5 0 1 0 1-4ndis.dat
1 0 69.9 55.5 0 2.5 0 0 0 0 2.5 0 1 0 1-4ring2.dat
1 15 69.9 55.5 0 7.5 0 0 0 0 7.5 0 1 0 1-4ndis.dat
1 0 65.1 27 0 -2.5 0 0.2 0 0 -2.5 0 1 0 1-4ring2.dat
1 15 65.1 27 0 -7.5 0 .6 0 0 -7.5 0 1 0 1-4ndis.dat
1 0 70.5 27 0 2.5 0 0 0 0 -2.5 0 1 0 1-4ring2.dat
1 15 70.5 27 0 7.5 0 0 0 0 -7.5 0 1 0 1-4ndis.dat
4 0 -63.2 58.5 0 -63.5 61 0 30.7 61 0 30.9 58.5 0
4 0 43.7 24.4 0 41.7 48.5 0 44.2 48.5 0 46.2 24.4 0
4 0 -71.5 24.4 0 -74.5 48.5 0 -72 48.5 0 -69 24.4 0
4 0 -57.5 11.9 0 -57.8 14.4 0 34.5 14.4 0 34.7 11.9 0
4 15 -74.5 48.5 0 -71.5 24.4 0 -89 1 0 -89 66 0
3 15 30.7 61 0 -63.5 61 0 -89 66 0
4 15 -89 1 0 -57.5 11.9 0 34.7 11.9 0 89 1 0
4 0 57.6 27 0 55 55.5 0 57.5 55.5 0 60.1 27 0
4 0 70.5 19.5 0 65.7 19.5 0 65.5 22 0 70.5 22 0
4 0 69.9 60.5 0 62.1 60.5 0 61.9 63 0 69.9 63 0
4 0 75.5 27 0 74.9 55.5 0 77.4 55.5 0 78 27 0
4 15 57.6 27 0 46.2 24.4 0 44.2 48.5 0 55 55.5 0
4 15 78 27 0 77.4 55.5 0 89 66 0 89 1 0
3 15 89 1 0 65.7 19.5 0 70.5 19.5 0
3 15 69.9 63 0 61.9 63 0 89 66 0
3 15 -76 61 0 -89 66 0 -63.5 61 0
3 15 -89 66 0 -76 61 0 -74.5 48.5 0
3 15 -89 1 0 -71.5 24.4 0 -70 11.9 0
3 15 -89 1 0 -70 11.9 0 -57.5 11.9 0
3 15 34.7 11.9 0 47.2 11.9 0 89 1 0
4 15 65.7 19.5 0 89 1 0 47.2 11.9 0 58.2 19.5 0
4 15 57.6 27 0 58.2 19.5 0 47.2 11.9 0 46.2 24.4 0
3 15 70.5 19.5 0 78 19.5 0 89 1 0
3 15 78 19.5 0 78 27 0 89 1 0
3 15 77.4 55.5 0 77.4 63 0 89 66 0
3 15 89 66 0 77.4 63 0 69.9 63 0
4 15 43.2 61 0 54.4 63 0 55 55.5 0 44.2 48.5 0
4 15 54.4 63 0 43.2 61 0 30.7 61 0 -89 66 0
4 15 61.9 63 0 54.4 63 0 -89 66 0 89 66 0
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
