File Detail parts/2583.dat

Official File parts/2583.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

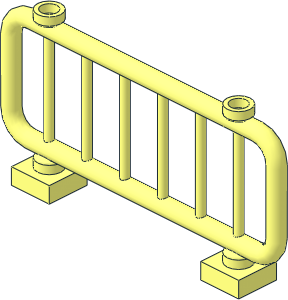

0 Bar  1 x  8 x  3
0 Name: 2583.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS barricade, Fence, grille, road block, rod, rod system

0 !HISTORY 1998-06-20 [PTadmin] Official Update 1998-06
0 !HISTORY 2003-11-13 [sbliss] updated 3070 references to 3070a
0 !HISTORY 2003-11-13 [Steffen] BFCed
0 !HISTORY 2003-11-13 [OrionP] updated 1-4ccyli references to t04q4000; fixed L3P errors
0 !HISTORY 2003-11-20 [Steffen] closed rendering gaps by slightly enlonging the central rods
0 !HISTORY 2003-11-20 [fwcain] added more keywords...
0 !HISTORY 2004-01-28 [cwdee] removed POV code per LSC decision
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-05-17 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2025-01-19 [OrionP] Fix comment errors, flipped BFC
0 !HISTORY 2025-08-18 [WUIt] Fixed gaps with cylj4x8, ran isecalc, subbed half, fixed bleed-in
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08

Show contents

1 16 50 0 0 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 -50 0 0 1 0 0 0 1 0 0 0 1 stud2.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2583s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\2583s01.dat

1 16 60 56 0 0 -120 0 4 0 0 0 0 4 4-4cyli.dat
1 16 45 4 0 0 -90 0 4 0 0 0 0 4 4-4cyli.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Orion Pobursky [OrionP]

initially submitted the part.

2025-01-19 23:33:27

Orion Pobursky [OrionP]

made the following comment.

2025-01-19 23:35:41

This one needs some more refinement

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-08-18 14:16:34

Fixed gaps with cylj1x2, ran isecalc on spheres, and subbed half for symmetry

Magnus Forsberg [MagFors]

made the following comment.

2025-08-18 16:32:45

Is there a logo in the top studs?
Having the stud in a mirrored subfile is not good.

Rene Rechthaler [Blechtaler]

made the following comment.

2025-08-18 16:44:31

yes, logo gets mirrored...
also, the intersection of the top stud with the top bar is weird, the topmost faces fade into the hollow stud bottom (should it be cut out?)
(maybe use 2x 7-16cyli in the subpart directly under the stud hole to avoid bleed-in)

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-08-18 16:55:09

Moved studs from sub to parent

Rene Rechthaler [Blechtaler]

made the following comment.

2025-08-18 16:57:46

still some mild bleed-in from the top bar at the hollow stud bottoms...

Magnus Forsberg [MagFors]

made the following comment.

2025-08-18 17:06:41

The history comment still refer to that new prim.

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-08-19 01:12:11

Updated history comment. Tried to fix bleed-in.

Rene Rechthaler [Blechtaler]

posted a vote of Certify.

2025-08-19 09:08:32

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2025-08-19 09:46:17

Magnus Forsberg [MagFors]

posted a vote of Admin Review.

2025-08-25 19:14:10

Orion Pobursky [OrionP]

2025-08-31 02:18:42

Release 2025-08

Creative Commons Attribution License information

This part is copyright © James Jessiman
Licensed under CC BY 4.0

Edits:
LDraw.org Parts Tracker, Steve Bliss, Steffen, Orion Pobursky, Franklin W. Cain, Chris Dee, Peter Blomberg,
