Official File parts/s/27262s01.dat

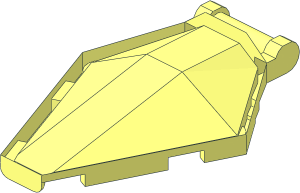

~Windscreen 6 x 4 x 1 Pentagonal with Handle without Outer Surface
File Header:
0 ~Windscreen 6 x 4 x 1 Pentagonal with Handle without Outer Surface 0 Name: s\27262s01.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Subpart UPDATE 2024-04 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2023-11-20 [Holly-Wood] Rounded tip 0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\27262s02.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\27262s02.dat 0 // Tip 3 16 6 14 -110 0 6 -110 -6 14 -110 2 24 -6 14 -110 6 14 -110 2 24 -6 9 -106 6 9 -106 4 16 -6 11 -106 -6 9 -106 6 9 -106 6 11 -106 5 24 6 11 -106 -6 11 -106 6 9 -106 5 11.5308 -106.3044 1 16 -6 11 -110 0 12 0 3 0 0 0 0 4 1-4cyli.dat 4 16 8.66814 8.303611 -102.953297 6 9 -106 -6 9 -106 -8.66814 8.303611 -102.95329701141 1 16 0 1.1089505 -71.4766485 -8.66814 0 0 0 -1 -7.1946605 0 0 31.4766485 rect3.dat 4 16 8.66814 -6.08571 -12 8.66814 -6.08571 -40 -8.66814 -6.08571 -40 -8.66814 -6.08571 -12 4 16 -14 6 -10 14 6 -10 17.663606 6 -12 -17.663606 6 -12 4 16 17.663606 0 -12 8.66814 -6.08571 -12 -8.66814 -6.08571 -12 -17.663606 0 -12 1 16 0 3 -12 -17.663606 0 0 0 0 3 0 1 0 rect3.dat 1 16 0 2 -10 14 0 0 0 0 4 0 -1 0 rect3.dat 4 16 14 -2 -10 -14 -2 -10 -10 -10 -10 10 -10 -10 1 16 -14 0 0 0 28 0 4 0 0 0 0 -4 4-4cyli.dat 2 24 -10 -10 -10 10 -10 -10 2 24 8.66814 -6.08571 -12 -8.66814 -6.08571 -12
Status:
Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 1.1089505 -71.4766485 -8.66814 0 0 0 -1 -7.1946605 0 0 31.4766485 rect3.dat
  • Decimal precision exceeds 5 significant places
    Line text: 4 16 -14 6 -10 14 6 -10 17.663606 6 -12 -17.663606 6 -12
  • Decimal precision exceeds 5 significant places
    Line text: 4 16 17.663606 0 -12 8.66814 -6.08571 -12 -8.66814 -6.08571 -12 -17.663606 0 -12
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 3 -12 -17.663606 0 0 0 0 3 0 1 0 rect3.dat
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 8.66814 8.303611 -102.953297 6 9 -106 -6 9 -106 -8.66814 8.303611 -102.95329701141
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 8.66814 -6.08571 -12 8.66814 -6.08571 -40 -8.66814 -6.08571 -40 -8.66814 -6.08571 -12
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 8.66814 -6.08571 -12 -8.66814 -6.08571 -12
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
