Official File parts/s/30394s00.dat
File Header:

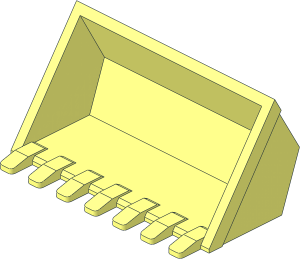

0 ~Excavator Bucket 6 x 3 with Click Hinge 2-Finger - without Hinge
0 Name: s\30394s00.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30394s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30394s01.dat
2 24 60 28.095 -67.5 -60 28.095 -67.5
2 24 59 -21.782 -24.538 -59 -21.782 -24.538
2 24 60 -29.698 -27.732 -60 -29.698 -27.732
1 16 0 30 -41.05 0 0 59 0 -1 0 18.55 0 0 rect1.dat
1 16 0 13.551 -20.377 55 0 0 0 0 -12.449 0 1 4.512 rect2p.dat
1 16 0 -12.2193 -23.22885 0 0 -55 -13.3213 0 0 -7.36385 1 0 rect1.dat
1 16 0 26 -45.4769 0 0 55 0 1 0 -20.5879 0 0 rect1.dat
4 16 55 26 -66.0648 -55 26 -66.0648 -60 28.095 -67.5 60 28.095 -67.5
4 16 -60 -29.698 -27.732 -55 -25.5406 -30.5927 55 -25.5406 -30.5927 60 -29.698 -27.732
4 16 -59 30 -59.6 59 30 -59.6 60 30 -67.5 -60 30 -67.5
1 16 0 30 -66 1 0 0 0 1 0 0 0 1 s\30394s02.dat
4 16 60 -29.698 -27.732 8.5 -22.825 -23.835 -8.5 -22.825 -23.835 -60 -29.698 -27.732
4 16 4 -0.6232 -11.2465 8.5 0.755 -11.753 -8.5 0.755 -11.753 -4 -0.6232 -11.2465
4 16 -8.5 0.755 -11.753 8.5 0.755 -11.753 59 30 -22.5 -59 30 -22.5
1 16 0 -3.3116 -12.77085 0 0 -4 2.6884 0 0 1.52435 -1 0 rect1.dat
4 16 8.5 -22.825 -23.835 4 -6 -14.2952 -4 -6 -14.2952 -8.5 -22.825 -23.835
Status:
Official
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 -12.2193 -23.22885 0 0 -55 -13.3213 0 0 -7.36385 1 0 rect1.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 -3.3116 -12.77085 0 0 -4 2.6884 0 0 1.52435 -1 0 rect1.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
