File Detail parts/s/30396s01.dat

Official File parts/s/30396s01.dat

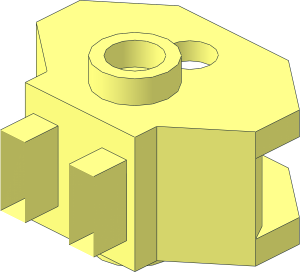

~Hinge 1 x 2 Locking with Towball Socket

File Header:

0 ~Hinge  1 x  2 Locking with Towball Socket
0 Name: s\30396s01.dat
0 Author: Marc Giraudet [Mad_Marc]
0 !LDRAW_ORG Subpart UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2022-11-20 [MagFors] Corrected shape and size of inside
0 !HISTORY 2024-05-01 [MagFors] Corrected hole size and logo orientation
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
