File Detail parts/s/30636s01.dat

Official File parts/s/30636s01.dat

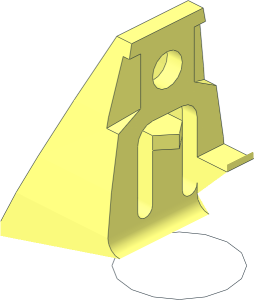

~Hose Reel 1 x 4 x 1.667 Holder with two Pins - Half

File Header:

0 ~Hose Reel  1 x  4 x  1.667 Holder with two Pins - Half
0 Name: s\30636s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
