Official File parts/s/30650s01.dat
File Header:

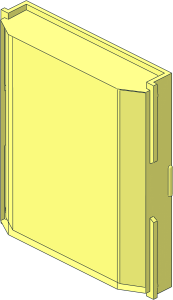

0 ~Panel 2 x 8 x 8 Chamfered Front, without Patternable Surfaces
0 Name: s\30650s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2023-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02
Show contents
1 16 0 96 0 1 0 0 0 1 0 0 0 1 s\30650s02.dat
1 16 0 96 0 -1 0 0 0 1 0 0 0 1 s\30650s02.dat
1 16 0 96 0 1 0 0 0 -1 0 0 0 1 s\30650s02.dat
1 16 0 96 0 -1 0 0 0 -1 0 0 0 1 s\30650s02.dat
0 // Bottom
4 16 80 192 10 76 192 6 -76 192 6 -80 192 10
1 16 0 189.45 6 0 0 76 2.55 0 0 0 1 0 rect2p.dat
1 16 0 192 -4 -76 0 0 0 -1 0 0 0 10 recte3.dat
1 16 0 186.65 -4 -76 0 0 0 -1 .25 0 0 10 recte3.dat
4 16 76 186.9 6 60 186 -30 -60 186 -30 -76 186.9 6
4 16 -80 192 10 -77 184 10 77 184 10 80 192 10
1 16 0 150 10 -80 0 0 0 0 42 0 -1 0 recte3.dat
4 16 -58.932 183.1 -26 58.932 183.1 -26 77 183.3597 -15.6109 -77 183.3597 -15.6109
1 16 0 183.67985 -2.80545 0 0 77 -.32015 1 0 -12.80545 0 0 rect2p.dat
0 // Top
4 16 -76 0 6 76 0 6 80 0 10 -80 0 10
1 16 0 2.55 6 0 0 76 -2.55 0 0 0 1 0 rect2p.dat
1 16 0 0 -4 -76 0 0 0 1 0 0 0 10 recte3.dat
1 16 0 5.35 -4 -76 0 0 0 1 -.25 0 0 10 recte3.dat
4 16 -60 6 -30 60 6 -30 76 5.1 6 -76 5.1 6
4 16 77 8 10 -77 8 10 -80 0 10 80 0 10
1 16 0 42 10 -80 0 0 0 0 -42 0 -1 0 recte3.dat
1 16 0 8.32015 -2.80545 0 0 77 -.32015 -1 0 12.80545 0 0 rect2p.dat
4 16 77 8.6403 -15.6109 58.932 8.9 -26 -58.932 8.9 -26 -77 8.6403 -15.6109
1 16 0 96 10 -77 0 0 0 0 -88 0 -1 0 recte4.dat
0 // Side
4 16 80 120.5 -10 80 108 6 80 84 6 80 71.5 -10
2 24 80 84 6 80 108 6
4 16 80 71.5 -10 80 71.5 -14 80 120.5 -14 80 120.5 -10
4 16 80 186.2875 -18.5 80 120.5 -14 80 71.5 -14 80 5.7125 -18.5
2 24 80 186.2875 -18.5 80 5.7125 -18.5
1 16 80 84 8 0 0 2 0 24 0 -2 0 0 2-4cyli.dat
4 16 77 8 10 80 84 10 80 108 10 77 184 10
4 16 -80 84 6 -80 108 6 -80 120.5 -10 -80 71.5 -10
2 24 -80 84 6 -80 108 6
4 16 -80 120.5 -14 -80 71.5 -14 -80 71.5 -10 -80 120.5 -10
4 16 -80 71.5 -14 -80 120.5 -14 -80 186.2875 -18.5 -80 5.7125 -18.5
2 24 -80 186.2875 -18.5 -80 5.7125 -18.5
1 16 -80 84 8 0 0 -2 0 24 0 -2 0 0 2-4cyli.dat
4 16 -80 108 10 -80 84 10 -77 8 10 -77 184 10
0 // Inside
1 16 0 96 -26 -58.932 0 0 0 0 -87.1 0 -1 0 rect.dat
4 16 -58.932 8.9 -26 -58.932 183.1 -26 -77 183.3597 -15.6109 -77 8.6403 -15.6109
4 16 58.932 183.1 -26 58.932 8.9 -26 77 8.6403 -15.6109 77 183.3597 -15.6109
4 16 77 184 10 77 183.3597 -15.6109 77 8.6403 -15.6109 77 8 10
4 16 -77 8 10 -77 8.6403 -15.6109 -77 183.3597 -15.6109 -77 184 10
2 24 -77 183.3597 -15.6109 -77 8.6403 -15.6109
2 24 77 183.3597 -15.6109 77 8.6403 -15.6109
2 24 58.932 8.9 -26 77 8.6403 -15.6109
2 24 58.932 183.1 -26 77 183.3597 -15.6109
2 24 -58.932 183.1 -26 -77 183.3597 -15.6109
2 24 -58.932 8.9 -26 -77 8.6403 -15.6109
1 16 0 96 -30 0 0 -60 -90 0 0 0 1 0 recte4.dat
Status:
Official
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 183.67985 -2.80545 0 0 77 -.32015 1 0 -12.80545 0 0 rect2p.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 8.32015 -2.80545 0 0 77 -.32015 -1 0 12.80545 0 0 rect2p.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
