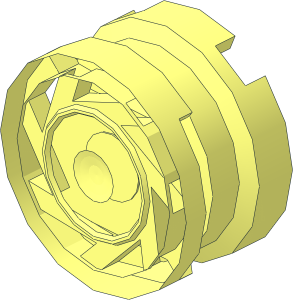

~Wheel Rim 6.4 x 11 with 7 Spokes - Unpatterned Area

File Header:

0 ~Wheel Rim  6.4 x 11 with  7 Spokes - Unpatterned Area
0 Name: s\30838s01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Subpart UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2018-01-28 {LEGO Digital Designer} Original part shape
0 !HISTORY 2021-01-28 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09

Show contents

0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\93593s01.dat
0 // Back "Spoke"
0 // Faces
1 16 -1.5 9.35 5.5 0 1 0 -2.35 0 0 0 0 2.5 rect3.dat
1 16 1.5 9.35 5.5 0 -1 0 2.35 0 0 0 0 2.5 rect3.dat
3 16 1.5 11.7 8 0 11.9980728 8 -1.5 11.7 8
4 16 1.5 7 8 1.5 11.7 8 -1.5 11.7 8 -1.5 7 8
0 // Edges
2 24 -1.5 6.7 3 -1.5 7.7 3
2 24 -1.5 7.7 3 -1.5 11.7 5
2 24 1.5 6.7 3 1.5 7.7 3
2 24 1.5 7.7 3 1.5 11.7 5
0 // Complementary faces
0 // Primitives
0 BFC INVERTNEXT
1 16 0 0 -5.2 4 0 0 0 0 4 0 .2 0 4-4cylc.dat
1 16 0 0 -5 4 0 0 0 0 4 0 -1 0 4-4ring1.dat
1 16 0 0 -5 2 0 0 0 0 2 0 -1 0 1-8ring6.dat
1 16 0 0 -5 -2 0 0 0 0 2 0 -1 0 1-8ring6.dat
1 16 0 0 -5 -2 0 0 0 0 -2 0 -1 0 1-8ring6.dat
1 16 0 0 -5 2 0 0 0 0 -2 0 -1 0 1-8ring6.dat
1 16 0 0 -5 .5 0 0 0 0 .5 0 -1 0 1-8ring23.dat
1 16 0 0 -5 -.5 0 0 0 0 .5 0 -1 0 1-8ring23.dat
1 16 0 0 -5 -.5 0 0 0 0 -.5 0 -1 0 1-8ring23.dat
1 16 0 0 -5 .5 0 0 0 0 -.5 0 -1 0 1-8ring23.dat
1 16 0 0 -5 11.5 0 0 0 0 11.5 0 -1 0 1-8ering.dat
1 16 0 0 -5 -11.5 0 0 0 0 11.5 0 -1 0 1-8ering.dat
1 16 0 0 -5 -11.5 0 0 0 0 -11.5 0 -1 0 1-8ering.dat
1 16 0 0 -5 11.5 0 0 0 0 -11.5 0 -1 0 1-8ering.dat
0 BFC INVERTNEXT
1 16 0 0 -8 3 0 0 0 0 3 0 -1 0 bump5000.dat
1 16 0 0 -7.52 7 0 0 0 0 7 0 1 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 0 -8 .35 0 0 0 0 .35 0 .48 0 4-4con20.dat
1 16 0 0 -8 7.35 0 0 0 0 7.35 0 1 0 4-4edge.dat
1 16 0 0 -8 .35 0 0 0 0 .35 0 1 0 4-4ring21.dat
1 16 0 0 -8 7.7 0 0 0 0 7.7 0 1 0 4-4edge.dat
1 16 0 0 -7.5 .35 0 0 0 0 .35 0 -.5 0 4-4con22.dat
1 16 0 0 -7.5 8.05 0 0 0 0 8.05 0 1 0 4-4edge.dat
0 // Faces
4 16 8.13165 8.13165 -5 8.485 8.485 -5 8.485 8.485 -2 8.13165 8.13165 -2.0625
4 16 -8.13165 8.13165 -5 -8.13165 8.13165 -2.0625 -8.48526 8.48526 -2 -8.4852 8.4852 -5
4 16 -8.13165 -8.13165 -5 -8.4852 -8.4852 -5 -8.48526 -8.48526 -2 -8.13165 -8.13165 -2.0625
4 16 8.13165 -8.13165 -5 8.13165 -8.13165 -2.0625 8.485 -8.485 -2 8.485 -8.485 -5
4 16 8.13165 8.13165 -5 8.13165 8.13165 -2.0625 3.368311 8.13165 -2.39982 6.9714 8.13165 -5
4 16 6.9714 8.13165 -5 3.368311 8.13165 -2.39982 0 8.13165 -2.483544 3.82242 8.13165 -5
4 16 3.82242 8.13165 -5 0 8.13165 -2.483544 -3.368311 8.13165 -2.39982 -3.12282 8.13165 -5
4 16 -3.12282 8.13165 -5 -3.368311 8.13165 -2.39982 -8.13165 8.13165 -2.0625 -8.13165 8.13165 -5
4 16 -8.13165 -8.13165 -5 -8.13165 -8.13165 -2.0625 -3.368311 -8.13165 -2.39982 -6.18255 -8.13165 -5
4 16 -6.18255 -8.13165 -5 -3.368311 -8.13165 -2.39982 0 -8.13165 -2.483544 -3.46401 -8.13165 -5
3 16 -3.46401 -8.13165 -5 0 -8.13165 -2.483544 -2.1613 -8.13165 -5
4 16 -2.1613 -8.13165 -5 0 -8.13165 -2.483544 3.368311 -8.13165 -2.39982 5.13536 -8.13165 -5
4 16 5.13536 -8.13165 -5 3.368311 -8.13165 -2.39982 8.13165 -8.13165 -2.0625 8.13165 -8.13165 -5
3 16 8.13165 -8.13165 -5 7.044 -8.85854 -5 5.13536 -8.13165 -5
3 16 -2.1613 -8.13165 -5 4.40105 -10.62486 -5 0 -11.5 -5
4 16 -2.1613 -8.13165 -5 0 -11.5 -5 -2.54689 -10.99355 -5 -3.46401 -8.13165 -5
3 16 -8.13165 -8.13165 -5 -6.18255 -8.13165 -5 -5.65136 -9.78925 -5
4 16 -3.12282 8.13165 -5 -4.40105 10.62485 -5 -2.47353 11.00814 -5 0 8.4 -5
3 16 -3.12282 8.13165 -5 -8.13165 8.13165 -5 -4.40105 10.62485 -5
3 16 6.9714 8.13165 -5 3.82242 8.13165 -5 .77384 11.34612 -5
4 16 6.9714 8.13165 -5 .77384 11.34612 -5 4.40105 10.62485 -5 7.07039 8.8409 -5
0 // Edges
2 24 8.485 8.485 -2 8.13165 8.13165 -2.0625
2 24 -8.485 8.485 -2 -8.13165 8.13165 -2.0625
2 24 -8.485 -8.485 -2 -8.13165 -8.13165 -2.0625
2 24 8.485 -8.485 -2 8.13165 -8.13165 -2.0625
2 24 8.13165 8.13165 -2.0625 8.13165 8.13165 -5
2 24 -8.13165 8.13165 -2.0625 -8.13165 8.13165 -5
2 24 -8.13165 -8.13165 -2.0625 -8.13165 -8.13165 -5
2 24 8.13165 -8.13165 -2.0625 8.13165 -8.13165 -5
2 24 8.485 8.485 -5 8.13165 8.13165 -5
2 24 -8.4852 8.4852 -5 -8.13165 8.13165 -5
2 24 -8.4852 -8.4852 -5 -8.13165 -8.13165 -5
2 24 8.485 -8.485 -5 8.13165 -8.13165 -5
2 24 -8.13165 8.13165 -2.0625 -3.368311 8.13165 -2.39982
2 24 -3.368311 8.13165 -2.39982 0 8.13165 -2.483544
2 24 0 8.13165 -2.483544 3.368311 8.13165 -2.39982
2 24 3.368311 8.13165 -2.39982 8.13165 8.13165 -2.0625
2 24 8.13165 -8.13165 -2.0625 3.368311 -8.13165 -2.39982
2 24 3.368311 -8.13165 -2.39982 0 -8.13165 -2.483544
2 24 0 -8.13165 -2.483544 -3.368311 -8.13165 -2.39982
2 24 -3.368311 -8.13165 -2.39982 -8.13165 -8.13165 -2.0625
2 24 -8.13165 8.13165 -5 -3.12282 8.13165 -5
2 24 -3.12282 8.13165 -5 3.82242 8.13165 -5
2 24 3.82242 8.13165 -5 6.9714 8.13165 -5
2 24 6.9714 8.13165 -5 8.13165 8.13165 -5
2 24 -8.13165 -8.13165 -5 -6.18255 -8.13165 -5
2 24 -3.46401 -8.13165 -5 -6.18255 -8.13165 -5
2 24 -3.46401 -8.13165 -5 -2.1613 -8.13165 -5
2 24 -2.1613 -8.13165 -5 5.13536 -8.13165 -5
2 24 5.13536 -8.13165 -5 8.13165 -8.13165 -5
0 // Inner rim
0 // Faces
4 16 10.62485 -4.40105 -8 10.84214 -3.3083 -7.5 11.5 0 -7.5 11.5 0 -8
4 16 10.62485 -4.40105 -8 10.62485 -4.40105 -5 10.84214 -3.3083 -5 10.84214 -3.3083 -7.5
4 16 8.13165 -8.13165 -8 8.13165 -8.13165 -5 10.62485 -4.40105 -5 10.62485 -4.40105 -8
4 16 8.13165 -8.13165 -8 7.044 -8.85854 -7.5 7.044 -8.85854 -5 8.13165 -8.13165 -5
4 16 8.13165 -8.13165 -8 4.40105 -10.62485 -8 4.40105 -10.62485 -7.5 7.044 -8.85854 -7.5
3 16 0 -11.5 -8 4.40105 -10.62485 -7.5 4.40105 -10.62485 -8
4 16 0 -11.5 -8 0 -11.5 -5 4.40105 -10.62486 -5 4.40105 -10.62485 -7.5
4 16 0 -11.5 -8 -2.54689 -10.99355 -7.5 -2.54689 -10.99355 -5 0 -11.5 -5
4 16 0 -11.5 -8 -4.40105 -10.62485 -8 -4.40105 -10.62485 -7.5 -2.54689 -10.99355 -7.5
4 16 -8.13165 -8.13165 -8 -5.65136 -9.78925 -7.5 -4.40105 -10.62485 -7.5 -4.40105 -10.62485 -8
4 16 -8.13165 -8.13165 -8 -8.13165 -8.13165 -5 -5.65136 -9.78925 -5 -5.65136 -9.78925 -7.5
4 16 -8.13165 -8.13165 -8 -10.24946 -4.96275 -7.5 -10.24946 -4.96275 -5 -8.13165 -8.13165 -5
4 16 -8.13165 -8.13165 -8 -10.62485 -4.40105 -8 -10.62485 -4.40105 -7.5 -10.24946 -4.96275 -7.5
4 16 -11.5 0 -8 -11.16771 -1.67105 -7.5 -10.62485 -4.40105 -7.5 -10.62485 -4.40105 -8
4 16 -11.5 0 -8 -11.5 0 -5 -11.16771 -1.67105 -5 -11.16771 -1.67105 -7.5
4 16 -11.5 0 -8 -10.62485 4.40105 -8 -10.62485 4.40105 -5 -11.5 0 -5
4 16 -10.62485 4.40105 -8 -10.27915 4.91833 -7.5 -10.27915 4.91833 -5 -10.62485 4.40105 -5
4 16 -10.62485 4.40105 -8 -8.13165 8.13165 -8 -8.43683 7.67501 -7.5 -10.27915 4.91833 -7.5
4 16 -8.13165 8.13165 -8 -8.13165 8.13165 -5 -8.43683 7.67501 -5 -8.43683 7.67501 -7.5
4 16 -4.40105 10.62485 -8 -4.40105 10.62485 -5 -8.13165 8.13165 -5 -8.13165 8.13165 -8
4 16 -4.40105 10.62485 -8 -2.47353 11.00814 -7.5 -2.47353 11.00814 -5 -4.40105 10.62485 -5
4 16 -4.40105 10.62485 -8 0 11.5 -8 0 11.5 -7.5 -2.47353 11.00814 -7.5
4 16 4.40105 10.62485 -8 .77384 11.34612 -7.5 0 11.5 -7.5 0 11.5 -8
4 16 4.40105 10.62485 -8 4.40105 10.62485 -5 .77384 11.34612 -5 .77384 11.34612 -7.5
4 16 4.40105 10.62485 -8 7.07039 8.8409 -7.5 7.07039 8.8409 -5 4.40105 10.62485 -5
4 16 4.40105 10.62485 -8 8.13165 8.13165 -8 8.13165 8.13165 -7.5 7.07039 8.8409 -7.5
4 16 10.62485 4.40105 -8 10.62485 4.40105 -5 9.33414 6.33236 -5 9.33414 6.33236 -7.5
4 16 10.62485 4.40105 -8 9.33414 6.33236 -7.5 8.13165 8.13165 -7.5 8.13165 8.13165 -8
4 16 10.62485 4.40105 -8 11.48386 .08115 -7.5 11.48386 .08115 -5 10.62485 4.40105 -5
4 16 10.62485 4.40105 -8 11.5 0 -8 11.5 0 -7.5 11.48386 .08115 -7.5
0 // Edges
2 24 10.84214 -3.3083 -5 10.62485 -4.40105 -5
2 24 10.62485 -4.40105 -5 8.13165 -8.13165 -5
2 24 8.13165 -8.13165 -5 7.044 -8.85854 -5
2 24 7.044 -8.85854 -5 5.13536 -8.13165 -5
2 24 -2.1613 -8.13165 -5 4.40105 -10.62486 -5
2 24 4.40105 -10.62486 -5 0 -11.5 -5
2 24 0 -11.5 -5 -2.54689 -10.99355 -5
2 24 -2.54689 -10.99355 -5 -3.46401 -8.13165 -5
2 24 -6.18255 -8.13165 -5 -5.65136 -9.78925 -5
2 24 -5.65136 -9.78925 -5 -8.13165 -8.13165 -5
2 24 -8.13165 -8.13165 -5 -10.24946 -4.96275 -5
2 24 -11.16771 -1.67105 -5 -11.5 0 -5
2 24 -10.62485 4.40105 -5 -10.27915 4.91833 -5
2 24 -8.43683 7.67501 -5 -8.13165 8.13165 -5
2 24 -8.13165 8.13165 -5 -4.40105 10.62485 -5
2 24 -4.40105 10.62485 -5 -2.47353 11.00814 -5
2 24 -3.12282 8.13165 -5 0 8.4 -5
2 24 0 8.4 -5 -2.47353 11.00814 -5
2 24 3.82242 8.13165 -5 .77384 11.34612 -5
2 24 .77384 11.34612 -5 4.40105 10.62485 -5
2 24 4.40105 10.62485 -5 7.07039 8.8409 -5
2 24 7.07039 8.8409 -5 6.9714 8.13165 -5
2 24 9.33414 6.33236 -5 10.62485 4.40105 -5
2 24 10.62485 4.40105 -5 11.48386 .08115 -5
2 24 -11.5 0 -5 -10.62485 4.40105 -5
2 24 11.5 0 -8 10.62485 4.40105 -8
2 24 10.62485 4.40105 -8 8.13165 8.13165 -8
2 24 8.13165 8.13165 -8 4.40105 10.62485 -8
2 24 4.40105 10.62485 -8 0 11.5 -8
2 24 0 11.5 -8 -4.40105 10.62485 -8
2 24 -4.40105 10.62485 -8 -8.13165 8.13165 -8
2 24 -8.13165 8.13165 -8 -10.62485 4.40105 -8
2 24 -10.62485 4.40105 -8 -11.5 0 -8
2 24 -11.5 0 -8 -10.62485 -4.40105 -8
2 24 -10.62485 -4.40105 -8 -8.13165 -8.13165 -8
2 24 -8.13165 -8.13165 -8 -4.40105 -10.62485 -8
2 24 -4.40105 -10.62485 -8 0 -11.5 -8
2 24 0 -11.5 -8 4.40105 -10.62485 -8
2 24 4.40105 -10.62485 -8 8.13165 -8.13165 -8
2 24 8.13165 -8.13165 -8 10.62485 -4.40105 -8
2 24 10.62485 -4.40105 -8 11.5 0 -8
0 // Conditional lines
5 24 11.5 0 -8 11.5 0 -7.5 10.62485 4.40105 -8 10.62485 -4.40105 -8
5 24 10.62485 -4.40105 -8 10.62485 -4.40105 -5 11.5 0 -8 8.13165 -8.13165 -8
5 24 8.13165 -8.13165 -8 8.13165 -8.13165 -5 10.62485 -4.40105 -8 4.40105 -10.62485 -8
5 24 4.40105 -10.62485 -8 4.40105 -10.62485 -7.5 8.13165 -8.13165 -8 0 -11.5 -8
5 24 0 -11.5 -8 0 -11.5 -5 4.40105 -10.62485 -8 -4.40105 -10.62485 -8
5 24 -4.40105 -10.62485 -8 -4.40105 -10.62485 -7.5 0 -11.5 -8 -8.13165 -8.13165 -8
5 24 -8.13165 -8.13165 -8 -8.13165 -8.13165 -5 -4.40105 -10.62485 -8 -10.62485 -4.40105 -8
5 24 -10.62485 -4.40105 -8 -10.62485 -4.40105 -7.5 -8.13165 -8.13165 -8 -11.5 0 -8
5 24 -11.5 0 -8 -11.5 0 -5 -10.62485 -4.40105 -8 -10.62485 4.40105 -8
5 24 -10.62485 4.40105 -8 -10.62485 4.40105 -5 -11.5 0 -8 -8.13165 8.13165 -8
5 24 -8.13165 8.13165 -8 -8.13165 8.13165 -5 -10.62485 4.40105 -8 -4.40105 10.62485 -8
5 24 -4.40105 10.62485 -8 -4.40105 10.62485 -5 -8.13165 8.13165 -8 0 11.5 -8
5 24 0 11.5 -8 0 11.5 -7.5 -4.40105 10.62485 -8 4.40105 10.62485 -8
5 24 4.40105 10.62485 -8 4.40105 10.62485 -5 0 11.5 -8 8.13165 8.13165 -8
5 24 8.13165 8.13165 -8 8.13165 8.13165 -7.5 4.40105 10.62485 -8 10.62485 4.40105 -8
5 24 10.62485 4.40105 -8 10.62485 4.40105 -5 8.13165 8.13165 -8 11.5 0 -8
0 // Spokes
0 // Faces
4 16 8.1894 -1.8692 -7.5 8.1894 -1.8692 -5 11.48386 .08115 -5 11.48386 .08115 -7.5
4 16 10.84214 -3.3083 -7.5 8.1894 -1.8692 -7.5 11.48386 .08115 -7.5 11.5 0 -7.5
3 16 10.84214 -3.3083 -7.5 7.437395 -3.080735 -7.5 8.1894 -1.8692 -7.5
3 16 10.84214 -3.3083 -7.5 5.692155 -5.692155 -7.5 7.437395 -3.080735 -7.5
4 16 3.08074 -7.4374 -7.5 5.69216 -5.69216 -7.5 10.84214 -3.3083 -7.5 3.6556 -7.5681 -7.5
4 16 10.84214 -3.3083 -7.5 10.84214 -3.3083 -5 3.6556 -7.5681 -5 3.6556 -7.5681 -7.5
3 16 7.044 -8.85854 -7.5 5.13536 -8.13165 -5 7.044 -8.85854 -5
4 16 7.044 -8.85854 -7.5 3.6556 -7.5681 -7.5 3.6556 -7.5681 -5 5.13536 -8.13165 -5
4 16 3.08074 -7.4374 -7.5 3.6556 -7.5681 -7.5 4.40105 -10.62485 -7.5 0 -8.05 -7.5
3 16 3.6556 -7.5681 -7.5 7.044 -8.85854 -7.5 4.40105 -10.62485 -7.5
4 16 4.40105 -10.62485 -7.5 -3.6446 -7.5681 -7.5 -3.08074 -7.4374 -7.5 0 -8.05 -7.5
4 16 4.40105 -10.62485 -7.5 -2.1613 -8.13165 -5 -3.6446 -7.5681 -5 -3.6446 -7.5681 -7.5
3 16 4.40105 -10.62486 -5 -2.1613 -8.13165 -5 4.40105 -10.62485 -7.5
3 16 -2.54689 -10.99355 -7.5 -3.46401 -8.13165 -5 -2.54689 -10.99355 -5
4 16 -2.54689 -10.99355 -7.5 -3.6446 -7.5681 -7.5 -3.6446 -7.5681 -5 -3.46401 -8.13165 -5
3 16 -5.69216 -5.69216 -7.5 -3.08074 -7.4374 -7.5 -3.6446 -7.5681 -7.5
4 16 -5.69216 -5.69216 -7.5 -3.6446 -7.5681 -7.5 -2.54689 -10.99355 -7.5 -4.40105 -10.62485 -7.5
4 16 -5.69216 -5.69216 -7.5 -4.40105 -10.62485 -7.5 -5.65136 -9.78925 -7.5 -7.4374 -3.08074 -7.5
3 16 -5.65136 -9.78925 -7.5 -8.1894 -1.8692 -7.5 -7.4374 -3.08074 -7.5
4 16 -5.65136 -9.78925 -7.5 -6.18255 -8.13165 -5 -8.1894 -1.8692 -5 -8.1894 -1.8692 -7.5
3 16 -5.65136 -9.78925 -5 -6.18255 -8.13165 -5 -5.65136 -9.78925 -7.5
4 16 -8.1894 -1.8692 -5 -10.24946 -4.96275 -5 -10.24946 -4.96275 -7.5 -8.1894 -1.8692 -7.5
3 16 -8.1894 -1.8692 -7.5 -8.05 0 -7.5 -7.4374 -3.08074 -7.5
4 16 -8.1894 -1.8692 -7.5 -10.24946 -4.96275 -7.5 -10.62485 -4.40105 -7.5 -8.05 0 -7.5
4 16 -11.16771 -1.67105 -7.5 -7.4374 3.08074 -7.5 -8.05 0 -7.5 -10.62485 -4.40105 -7.5
4 16 -11.16771 -1.67105 -7.5 -6.5674 5.2373 -7.5 -5.69216 5.69216 -7.5 -7.4374 3.08074 -7.5
4 16 -11.16771 -1.67105 -7.5 -11.16771 -1.67105 -5 -6.5674 5.2373 -5 -6.5674 5.2373 -7.5
4 16 -6.5674 5.2373 -5 -10.27915 4.91833 -5 -10.27915 4.91833 -7.5 -6.5674 5.2373 -7.5
3 16 -6.5674 5.2373 -7.5 -10.27915 4.91833 -7.5 -8.43683 7.67501 -7.5
4 16 -5.69216 5.69216 -7.5 -6.5674 5.2373 -7.5 -8.43683 7.67501 -7.5 -3.08074 7.4374 -7.5
4 16 0 8.05 -7.5 -3.08074 7.4374 -7.5 -8.43683 7.67501 -7.5 0 8.4 -7.5
3 16 -8.43683 7.67501 -7.5 -8.43683 7.67501 -5 -3.12282 8.13165 -5
4 16 -8.43683 7.67501 -7.5 -3.12282 8.13165 -5 0 8.4 -5 0 8.4 -7.5
4 16 0 8.4 -7.5 0 8.4 -5 -2.47353 11.00814 -5 -2.47353 11.00814 -7.5
4 16 .77384 11.34612 -7.5 3.08074 7.4374 -7.5 0 8.05 -7.5 0 8.4 -7.5
4 16 .77384 11.34612 -7.5 0 8.4 -7.5 -2.47353 11.00814 -7.5 0 11.5 -7.5
4 16 6.5674 5.2373 -7.5 5.69216 5.69216 -7.5 3.08074 7.4374 -7.5 .77384 11.34612 -7.5
4 16 .77384 11.34612 -7.5 3.82242 8.13165 -5 6.5674 5.2373 -5 6.5674 5.2373 -7.5
3 16 .77384 11.34612 -7.5 .77384 11.34612 -5 3.82242 8.13165 -5
3 16 7.07039 8.8409 -7.5 6.9714 8.13165 -5 7.07039 8.8409 -5
4 16 7.07039 8.8409 -7.5 6.5674 5.2373 -7.5 6.5674 5.2373 -5 6.9714 8.13165 -5
3 16 6.5674 5.2373 -7.5 7.4374 3.08074 -7.5 5.69216 5.69216 -7.5
4 16 7.07039 8.8409 -7.5 8.13165 8.13165 -7.5 7.4374 3.08074 -7.5 6.5674 5.2373 -7.5
4 16 9.33414 6.33236 -7.5 8.05 0 -7.5 7.4374 3.08074 -7.5 8.13165 8.13165 -7.5
4 16 7.4374 -3.08074 -7.5 8.05 0 -7.5 9.33414 6.33236 -7.5 8.1894 -1.8692 -7.5
4 16 9.33414 6.33236 -7.5 9.33414 6.33236 -5 8.1894 -1.8692 -5 8.1894 -1.8692 -7.5
4 16 11.5 0 -5 11.48386 .08115 -5 8.1894 -1.8692 -5 7.3912 -3.0616 -5
4 16 11.5 0 -5 7.3912 -3.0616 -5 5.6568 -5.6568 -5 10.84214 -3.3083 -5
4 16 3.6556 -7.5681 -5 10.84214 -3.3083 -5 5.6568 -5.6568 -5 3.0616 -7.3912 -5
4 16 3.6556 -7.5681 -5 3.0616 -7.3912 -5 0 -8 -5 5.13536 -8.13165 -5
3 16 -2.1613 -8.13165 -5 5.13536 -8.13165 -5 0 -8 -5
4 16 -2.1613 -8.13165 -5 0 -8 -5 -3.0616 -7.3912 -5 -3.6446 -7.5681 -5
3 16 -6.18255 -8.13165 -5 -3.46401 -8.13165 -5 -3.6446 -7.5681 -5
4 16 -6.18255 -8.13165 -5 -3.6446 -7.5681 -5 -3.0616 -7.3912 -5 -5.6568 -5.6568 -5
3 16 -6.18255 -8.13165 -5 -5.6568 -5.6568 -5 -7.3912 -3.0616 -5
3 16 -6.18255 -8.13165 -5 -7.3912 -3.0616 -5 -8.1894 -1.8692 -5
3 16 -8 0 -5 -8.1894 -1.8692 -5 -7.3912 -3.0616 -5
4 16 -8 0 -5 -10.62485 -4.40105 -5 -10.24946 -4.96275 -5 -8.1894 -1.8692 -5
4 16 -8 0 -5 -7.3912 3.0616 -5 -11.16771 -1.67105 -5 -10.62485 -4.40105 -5
4 16 -6.5674 5.2373 -5 -11.16771 -1.67105 -5 -7.3912 3.0616 -5 -5.6568 5.6568 -5
4 16 -6.5674 5.2373 -5 -5.6568 5.6568 -5 -3.0616 7.3912 -5 -3.12282 8.13165 -5
4 16 -6.5674 5.2373 -5 -3.12282 8.13165 -5 -8.43683 7.67501 -5 -10.27915 4.91833 -5
3 16 0 8 -5 -3.12282 8.13165 -5 -3.0616 7.3912 -5
3 16 0 8 -5 3.82242 8.13165 -5 -3.12282 8.13165 -5
3 16 0 8 -5 3.0616 7.3912 -5 3.82242 8.13165 -5
4 16 6.5674 5.2373 -5 3.82242 8.13165 -5 3.0616 7.3912 -5 5.6568 5.6568 -5
3 16 6.5674 5.2373 -5 5.6568 5.6568 -5 7.3912 3.0616 -5
4 16 6.5674 5.2373 -5 7.3912 3.0616 -5 9.33414 6.33236 -5 6.9714 8.13165 -5
3 16 8.13165 8.13165 -5 6.9714 8.13165 -5 9.33414 6.33236 -5
3 16 8 0 -5 9.33414 6.33236 -5 7.3912 3.0616 -5
4 16 8 0 -5 7.3912 -3.0616 -5 8.1894 -1.8692 -5 9.33414 6.33236 -5
0 // Edges
2 24 10.84214 -3.3083 -5 3.6556 -7.5681 -5
2 24 3.6556 -7.5681 -5 5.13536 -8.13165 -5
2 24 -2.1613 -8.13165 -5 -3.6446 -7.5681 -5
2 24 -3.6446 -7.5681 -5 -3.46401 -8.13165 -5
2 24 -6.18255 -8.13165 -5 -8.1894 -1.8692 -5
2 24 -8.1894 -1.8692 -5 -10.24946 -4.96275 -5
2 24 -11.16771 -1.67105 -5 -6.5674 5.2373 -5
2 24 -6.5674 5.2373 -5 -10.27915 4.91833 -5
2 24 -8.43683 7.67501 -5 -3.12282 8.13165 -5
2 24 3.82242 8.13165 -5 6.5674 5.2373 -5
2 24 6.5674 5.2373 -5 6.9714 8.13165 -5
2 24 9.33414 6.33236 -5 8.1894 -1.8692 -5
2 24 8.1894 -1.8692 -5 11.48386 .08115 -5
2 24 10.84214 -3.3083 -5 10.84214 -3.3083 -7.5
2 24 3.6556 -7.5681 -5 3.6556 -7.5681 -7.5
2 24 7.044 -8.85854 -5 7.044 -8.85854 -7.5
2 24 4.40105 -10.62485 -5 4.40105 -10.62486 -7.5
2 24 -3.6446 -7.5681 -5 -3.6446 -7.5681 -7.5
2 24 -2.54689 -10.99355 -5 -2.54689 -10.99355 -7.5
2 24 -5.65136 -9.78925 -5 -5.65136 -9.78925 -7.5
2 24 -8.1894 -1.8692 -5 -8.1894 -1.8692 -7.5
2 24 -10.24946 -4.96275 -5 -10.24946 -4.96275 -7.5
2 24 -11.16771 -1.67105 -5 -11.16771 -1.67105 -7.5
2 24 -6.5674 5.2373 -5 -6.5674 5.2373 -7.5
2 24 -10.27915 4.91833 -5 -10.27915 4.91833 -7.5
2 24 -8.43683 7.67501 -5 -8.43683 7.67501 -7.5
2 24 0 8.4 -5 0 8.4 -7.5
2 24 -2.47353 11.00814 -5 -2.47353 11.00814 -7.5
2 24 .77384 11.34612 -5 .77384 11.34612 -7.5
2 24 6.5674 5.2373 -5 6.5674 5.2373 -7.5
2 24 7.07039 8.8409 -5 7.07039 8.8409 -7.5
2 24 9.33414 6.33236 -5 9.33414 6.33236 -7.5
2 24 8.1894 -1.8692 -5 8.1894 -1.8692 -7.5
2 24 11.48386 .08115 -5 11.48386 .08115 -7.5
2 24 11.5 0 -7.5 10.84214 -3.3083 -7.5
2 24 10.84214 -3.3083 -7.5 3.6556 -7.5681 -7.5
2 24 3.6556 -7.5681 -7.5 7.044 -8.85854 -7.5
2 24 7.044 -8.85854 -7.5 4.40105 -10.62485 -7.5
2 24 4.40105 -10.62485 -7.5 -3.6446 -7.5681 -7.5
2 24 -3.6446 -7.5681 -7.5 -2.54689 -10.99355 -7.5
2 24 -2.54689 -10.99355 -7.5 -4.40105 -10.62485 -7.5
2 24 -4.40105 -10.62485 -7.5 -5.65136 -9.78925 -7.5
2 24 -5.65136 -9.78925 -7.5 -8.1894 -1.8692 -7.5
2 24 -8.1894 -1.8692 -7.5 -10.24946 -4.96275 -7.5
2 24 -10.24946 -4.96275 -7.5 -10.62485 -4.40105 -7.5
2 24 -10.62485 -4.40105 -7.5 -11.16771 -1.67105 -7.5
2 24 -11.16771 -1.67105 -7.5 -6.5674 5.2373 -7.5
2 24 -6.5674 5.2373 -7.5 -10.27915 4.91833 -7.5
2 24 -10.27915 4.91833 -7.5 -8.43683 7.67501 -7.5
2 24 -8.43683 7.67501 -7.5 0 8.4 -7.5
2 24 0 8.4 -7.5 -2.47353 11.00814 -7.5
2 24 -2.47353 11.00814 -7.5 0 11.5 -7.5
2 24 0 11.5 -7.5 .77384 11.34612 -7.5
2 24 .77384 11.34612 -7.5 6.5674 5.2373 -7.5
2 24 6.5674 5.2373 -7.5 7.07039 8.8409 -7.5
2 24 7.07039 8.8409 -7.5 8.13165 8.13165 -7.5
2 24 8.13165 8.13165 -7.5 9.33414 6.33236 -7.5
2 24 9.33414 6.33236 -7.5 8.1894 -1.8692 -7.5
2 24 8.1894 -1.8692 -7.5 11.48386 .08115 -7.5
2 24 11.48386 .08115 -7.5 11.5 0 -7.5

Status:

Official

This part has the following errors

Decimal precision exceeds 5 significant places

Line 20: 3 16 1.5 11.7 8 0 11.9980728 8 -1.5 11.7 8

Line 90: 2 24 -3.368311 8.13165 -2.39982 0 8.13165 -2.483544

Line 92: 2 24 3.368311 8.13165 -2.39982 8.13165 8.13165 -2.0625

Line 94: 2 24 3.368311 -8.13165 -2.39982 0 -8.13165 -2.483544

Line 96: 2 24 -3.368311 -8.13165 -2.39982 -8.13165 -8.13165 -2.0625

This part has the following warnings

Decimal precision exceeds library recommendation

Line 55: 4 16 8.13165 8.13165 -5 8.485 8.485 -5 8.485 8.485 -2 8.13165 8.13165 -2.0625

Line 56: 4 16 -8.13165 8.13165 -5 -8.13165 8.13165 -2.0625 -8.48526 8.48526 -2 -8.4852 8.4852 -5

Line 57: 4 16 -8.13165 -8.13165 -5 -8.4852 -8.4852 -5 -8.48526 -8.48526 -2 -8.13165 -8.13165 -2.0625

Line 58: 4 16 8.13165 -8.13165 -5 8.13165 -8.13165 -2.0625 8.485 -8.485 -2 8.485 -8.485 -5

Line 59: 4 16 8.13165 8.13165 -5 8.13165 8.13165 -2.0625 3.368311 8.13165 -2.39982 6.9714 8.13165 -5

Line 60: 4 16 6.9714 8.13165 -5 3.368311 8.13165 -2.39982 0 8.13165 -2.483544 3.82242 8.13165 -5

Line 61: 4 16 3.82242 8.13165 -5 0 8.13165 -2.483544 -3.368311 8.13165 -2.39982 -3.12282 8.13165 -5

Line 62: 4 16 -3.12282 8.13165 -5 -3.368311 8.13165 -2.39982 -8.13165 8.13165 -2.0625 -8.13165 8.13165 -5

Line 63: 4 16 -8.13165 -8.13165 -5 -8.13165 -8.13165 -2.0625 -3.368311 -8.13165 -2.39982 -6.18255 -8.13165 -5

Line 64: 4 16 -6.18255 -8.13165 -5 -3.368311 -8.13165 -2.39982 0 -8.13165 -2.483544 -3.46401 -8.13165 -5

Line 65: 3 16 -3.46401 -8.13165 -5 0 -8.13165 -2.483544 -2.1613 -8.13165 -5

Line 66: 4 16 -2.1613 -8.13165 -5 0 -8.13165 -2.483544 3.368311 -8.13165 -2.39982 5.13536 -8.13165 -5

Line 67: 4 16 5.13536 -8.13165 -5 3.368311 -8.13165 -2.39982 8.13165 -8.13165 -2.0625 8.13165 -8.13165 -5

Line 68: 3 16 8.13165 -8.13165 -5 7.044 -8.85854 -5 5.13536 -8.13165 -5

Line 69: 3 16 -2.1613 -8.13165 -5 4.40105 -10.62486 -5 0 -11.5 -5

Line 70: 4 16 -2.1613 -8.13165 -5 0 -11.5 -5 -2.54689 -10.99355 -5 -3.46401 -8.13165 -5

Line 71: 3 16 -8.13165 -8.13165 -5 -6.18255 -8.13165 -5 -5.65136 -9.78925 -5

Line 72: 4 16 -3.12282 8.13165 -5 -4.40105 10.62485 -5 -2.47353 11.00814 -5 0 8.4 -5

Line 73: 3 16 -3.12282 8.13165 -5 -8.13165 8.13165 -5 -4.40105 10.62485 -5

Line 74: 3 16 6.9714 8.13165 -5 3.82242 8.13165 -5 .77384 11.34612 -5

Line 75: 4 16 6.9714 8.13165 -5 .77384 11.34612 -5 4.40105 10.62485 -5 7.07039 8.8409 -5

Line 77: 2 24 8.485 8.485 -2 8.13165 8.13165 -2.0625

Line 78: 2 24 -8.485 8.485 -2 -8.13165 8.13165 -2.0625

Line 79: 2 24 -8.485 -8.485 -2 -8.13165 -8.13165 -2.0625

Line 80: 2 24 8.485 -8.485 -2 8.13165 -8.13165 -2.0625

Line 81: 2 24 8.13165 8.13165 -2.0625 8.13165 8.13165 -5

Line 82: 2 24 -8.13165 8.13165 -2.0625 -8.13165 8.13165 -5

Line 83: 2 24 -8.13165 -8.13165 -2.0625 -8.13165 -8.13165 -5

Line 84: 2 24 8.13165 -8.13165 -2.0625 8.13165 -8.13165 -5

Line 85: 2 24 8.485 8.485 -5 8.13165 8.13165 -5

Line 86: 2 24 -8.4852 8.4852 -5 -8.13165 8.13165 -5

Line 87: 2 24 -8.4852 -8.4852 -5 -8.13165 -8.13165 -5

Line 88: 2 24 8.485 -8.485 -5 8.13165 -8.13165 -5

Line 89: 2 24 -8.13165 8.13165 -2.0625 -3.368311 8.13165 -2.39982

Line 91: 2 24 0 8.13165 -2.483544 3.368311 8.13165 -2.39982

Line 93: 2 24 8.13165 -8.13165 -2.0625 3.368311 -8.13165 -2.39982

Line 95: 2 24 0 -8.13165 -2.483544 -3.368311 -8.13165 -2.39982

Line 97: 2 24 -8.13165 8.13165 -5 -3.12282 8.13165 -5

Line 98: 2 24 -3.12282 8.13165 -5 3.82242 8.13165 -5

Line 99: 2 24 3.82242 8.13165 -5 6.9714 8.13165 -5

Line 100: 2 24 6.9714 8.13165 -5 8.13165 8.13165 -5

Line 101: 2 24 -8.13165 -8.13165 -5 -6.18255 -8.13165 -5

Line 102: 2 24 -3.46401 -8.13165 -5 -6.18255 -8.13165 -5

Line 103: 2 24 -3.46401 -8.13165 -5 -2.1613 -8.13165 -5

Line 104: 2 24 -2.1613 -8.13165 -5 5.13536 -8.13165 -5

Line 105: 2 24 5.13536 -8.13165 -5 8.13165 -8.13165 -5

Line 108: 4 16 10.62485 -4.40105 -8 10.84214 -3.3083 -7.5 11.5 0 -7.5 11.5 0 -8

Line 109: 4 16 10.62485 -4.40105 -8 10.62485 -4.40105 -5 10.84214 -3.3083 -5 10.84214 -3.3083 -7.5

Line 110: 4 16 8.13165 -8.13165 -8 8.13165 -8.13165 -5 10.62485 -4.40105 -5 10.62485 -4.40105 -8

Line 111: 4 16 8.13165 -8.13165 -8 7.044 -8.85854 -7.5 7.044 -8.85854 -5 8.13165 -8.13165 -5

Line 112: 4 16 8.13165 -8.13165 -8 4.40105 -10.62485 -8 4.40105 -10.62485 -7.5 7.044 -8.85854 -7.5

Line 113: 3 16 0 -11.5 -8 4.40105 -10.62485 -7.5 4.40105 -10.62485 -8

Line 114: 4 16 0 -11.5 -8 0 -11.5 -5 4.40105 -10.62486 -5 4.40105 -10.62485 -7.5

Line 115: 4 16 0 -11.5 -8 -2.54689 -10.99355 -7.5 -2.54689 -10.99355 -5 0 -11.5 -5

Line 116: 4 16 0 -11.5 -8 -4.40105 -10.62485 -8 -4.40105 -10.62485 -7.5 -2.54689 -10.99355 -7.5

Line 117: 4 16 -8.13165 -8.13165 -8 -5.65136 -9.78925 -7.5 -4.40105 -10.62485 -7.5 -4.40105 -10.62485 -8

Line 118: 4 16 -8.13165 -8.13165 -8 -8.13165 -8.13165 -5 -5.65136 -9.78925 -5 -5.65136 -9.78925 -7.5

Line 119: 4 16 -8.13165 -8.13165 -8 -10.24946 -4.96275 -7.5 -10.24946 -4.96275 -5 -8.13165 -8.13165 -5

Line 120: 4 16 -8.13165 -8.13165 -8 -10.62485 -4.40105 -8 -10.62485 -4.40105 -7.5 -10.24946 -4.96275 -7.5

Line 121: 4 16 -11.5 0 -8 -11.16771 -1.67105 -7.5 -10.62485 -4.40105 -7.5 -10.62485 -4.40105 -8

Line 122: 4 16 -11.5 0 -8 -11.5 0 -5 -11.16771 -1.67105 -5 -11.16771 -1.67105 -7.5

Line 123: 4 16 -11.5 0 -8 -10.62485 4.40105 -8 -10.62485 4.40105 -5 -11.5 0 -5

Line 124: 4 16 -10.62485 4.40105 -8 -10.27915 4.91833 -7.5 -10.27915 4.91833 -5 -10.62485 4.40105 -5

Line 125: 4 16 -10.62485 4.40105 -8 -8.13165 8.13165 -8 -8.43683 7.67501 -7.5 -10.27915 4.91833 -7.5

Line 126: 4 16 -8.13165 8.13165 -8 -8.13165 8.13165 -5 -8.43683 7.67501 -5 -8.43683 7.67501 -7.5

Line 127: 4 16 -4.40105 10.62485 -8 -4.40105 10.62485 -5 -8.13165 8.13165 -5 -8.13165 8.13165 -8

Line 128: 4 16 -4.40105 10.62485 -8 -2.47353 11.00814 -7.5 -2.47353 11.00814 -5 -4.40105 10.62485 -5

Line 129: 4 16 -4.40105 10.62485 -8 0 11.5 -8 0 11.5 -7.5 -2.47353 11.00814 -7.5

Line 130: 4 16 4.40105 10.62485 -8 .77384 11.34612 -7.5 0 11.5 -7.5 0 11.5 -8

Line 131: 4 16 4.40105 10.62485 -8 4.40105 10.62485 -5 .77384 11.34612 -5 .77384 11.34612 -7.5

Line 132: 4 16 4.40105 10.62485 -8 7.07039 8.8409 -7.5 7.07039 8.8409 -5 4.40105 10.62485 -5

Line 133: 4 16 4.40105 10.62485 -8 8.13165 8.13165 -8 8.13165 8.13165 -7.5 7.07039 8.8409 -7.5

Line 134: 4 16 10.62485 4.40105 -8 10.62485 4.40105 -5 9.33414 6.33236 -5 9.33414 6.33236 -7.5

Line 135: 4 16 10.62485 4.40105 -8 9.33414 6.33236 -7.5 8.13165 8.13165 -7.5 8.13165 8.13165 -8

Line 136: 4 16 10.62485 4.40105 -8 11.48386 .08115 -7.5 11.48386 .08115 -5 10.62485 4.40105 -5

Line 137: 4 16 10.62485 4.40105 -8 11.5 0 -8 11.5 0 -7.5 11.48386 .08115 -7.5

Line 139: 2 24 10.84214 -3.3083 -5 10.62485 -4.40105 -5

Line 140: 2 24 10.62485 -4.40105 -5 8.13165 -8.13165 -5

Line 141: 2 24 8.13165 -8.13165 -5 7.044 -8.85854 -5

Line 142: 2 24 7.044 -8.85854 -5 5.13536 -8.13165 -5

Line 143: 2 24 -2.1613 -8.13165 -5 4.40105 -10.62486 -5

Line 144: 2 24 4.40105 -10.62486 -5 0 -11.5 -5

Line 145: 2 24 0 -11.5 -5 -2.54689 -10.99355 -5

Line 146: 2 24 -2.54689 -10.99355 -5 -3.46401 -8.13165 -5

Line 147: 2 24 -6.18255 -8.13165 -5 -5.65136 -9.78925 -5

Line 148: 2 24 -5.65136 -9.78925 -5 -8.13165 -8.13165 -5

Line 149: 2 24 -8.13165 -8.13165 -5 -10.24946 -4.96275 -5

Line 150: 2 24 -11.16771 -1.67105 -5 -11.5 0 -5

Line 151: 2 24 -10.62485 4.40105 -5 -10.27915 4.91833 -5

Line 152: 2 24 -8.43683 7.67501 -5 -8.13165 8.13165 -5

Line 153: 2 24 -8.13165 8.13165 -5 -4.40105 10.62485 -5

Line 154: 2 24 -4.40105 10.62485 -5 -2.47353 11.00814 -5

Line 155: 2 24 -3.12282 8.13165 -5 0 8.4 -5

Line 156: 2 24 0 8.4 -5 -2.47353 11.00814 -5

Line 157: 2 24 3.82242 8.13165 -5 .77384 11.34612 -5

Line 158: 2 24 .77384 11.34612 -5 4.40105 10.62485 -5

Line 159: 2 24 4.40105 10.62485 -5 7.07039 8.8409 -5

Line 160: 2 24 7.07039 8.8409 -5 6.9714 8.13165 -5

Line 161: 2 24 9.33414 6.33236 -5 10.62485 4.40105 -5

Line 162: 2 24 10.62485 4.40105 -5 11.48386 .08115 -5

Line 163: 2 24 -11.5 0 -5 -10.62485 4.40105 -5

Line 164: 2 24 11.5 0 -8 10.62485 4.40105 -8

Line 165: 2 24 10.62485 4.40105 -8 8.13165 8.13165 -8

Line 166: 2 24 8.13165 8.13165 -8 4.40105 10.62485 -8

Line 167: 2 24 4.40105 10.62485 -8 0 11.5 -8

Line 168: 2 24 0 11.5 -8 -4.40105 10.62485 -8

Line 169: 2 24 -4.40105 10.62485 -8 -8.13165 8.13165 -8

Line 170: 2 24 -8.13165 8.13165 -8 -10.62485 4.40105 -8

Line 171: 2 24 -10.62485 4.40105 -8 -11.5 0 -8

Line 172: 2 24 -11.5 0 -8 -10.62485 -4.40105 -8

Line 173: 2 24 -10.62485 -4.40105 -8 -8.13165 -8.13165 -8

Line 174: 2 24 -8.13165 -8.13165 -8 -4.40105 -10.62485 -8

Line 175: 2 24 -4.40105 -10.62485 -8 0 -11.5 -8

Line 176: 2 24 0 -11.5 -8 4.40105 -10.62485 -8

Line 177: 2 24 4.40105 -10.62485 -8 8.13165 -8.13165 -8

Line 178: 2 24 8.13165 -8.13165 -8 10.62485 -4.40105 -8

Line 179: 2 24 10.62485 -4.40105 -8 11.5 0 -8

Line 181: 5 24 11.5 0 -8 11.5 0 -7.5 10.62485 4.40105 -8 10.62485 -4.40105 -8

Line 182: 5 24 10.62485 -4.40105 -8 10.62485 -4.40105 -5 11.5 0 -8 8.13165 -8.13165 -8

Line 183: 5 24 8.13165 -8.13165 -8 8.13165 -8.13165 -5 10.62485 -4.40105 -8 4.40105 -10.62485 -8

Line 184: 5 24 4.40105 -10.62485 -8 4.40105 -10.62485 -7.5 8.13165 -8.13165 -8 0 -11.5 -8

Line 185: 5 24 0 -11.5 -8 0 -11.5 -5 4.40105 -10.62485 -8 -4.40105 -10.62485 -8

Line 186: 5 24 -4.40105 -10.62485 -8 -4.40105 -10.62485 -7.5 0 -11.5 -8 -8.13165 -8.13165 -8

Line 187: 5 24 -8.13165 -8.13165 -8 -8.13165 -8.13165 -5 -4.40105 -10.62485 -8 -10.62485 -4.40105 -8

Line 188: 5 24 -10.62485 -4.40105 -8 -10.62485 -4.40105 -7.5 -8.13165 -8.13165 -8 -11.5 0 -8

Line 189: 5 24 -11.5 0 -8 -11.5 0 -5 -10.62485 -4.40105 -8 -10.62485 4.40105 -8

Line 190: 5 24 -10.62485 4.40105 -8 -10.62485 4.40105 -5 -11.5 0 -8 -8.13165 8.13165 -8

Line 191: 5 24 -8.13165 8.13165 -8 -8.13165 8.13165 -5 -10.62485 4.40105 -8 -4.40105 10.62485 -8

Line 192: 5 24 -4.40105 10.62485 -8 -4.40105 10.62485 -5 -8.13165 8.13165 -8 0 11.5 -8

Line 193: 5 24 0 11.5 -8 0 11.5 -7.5 -4.40105 10.62485 -8 4.40105 10.62485 -8

Line 194: 5 24 4.40105 10.62485 -8 4.40105 10.62485 -5 0 11.5 -8 8.13165 8.13165 -8

Line 195: 5 24 8.13165 8.13165 -8 8.13165 8.13165 -7.5 4.40105 10.62485 -8 10.62485 4.40105 -8

Line 196: 5 24 10.62485 4.40105 -8 10.62485 4.40105 -5 8.13165 8.13165 -8 11.5 0 -8

Line 199: 4 16 8.1894 -1.8692 -7.5 8.1894 -1.8692 -5 11.48386 .08115 -5 11.48386 .08115 -7.5

Line 200: 4 16 10.84214 -3.3083 -7.5 8.1894 -1.8692 -7.5 11.48386 .08115 -7.5 11.5 0 -7.5

Line 201: 3 16 10.84214 -3.3083 -7.5 7.437395 -3.080735 -7.5 8.1894 -1.8692 -7.5

Line 202: 3 16 10.84214 -3.3083 -7.5 5.692155 -5.692155 -7.5 7.437395 -3.080735 -7.5

Line 203: 4 16 3.08074 -7.4374 -7.5 5.69216 -5.69216 -7.5 10.84214 -3.3083 -7.5 3.6556 -7.5681 -7.5

Line 204: 4 16 10.84214 -3.3083 -7.5 10.84214 -3.3083 -5 3.6556 -7.5681 -5 3.6556 -7.5681 -7.5

Line 205: 3 16 7.044 -8.85854 -7.5 5.13536 -8.13165 -5 7.044 -8.85854 -5

Line 206: 4 16 7.044 -8.85854 -7.5 3.6556 -7.5681 -7.5 3.6556 -7.5681 -5 5.13536 -8.13165 -5

Line 207: 4 16 3.08074 -7.4374 -7.5 3.6556 -7.5681 -7.5 4.40105 -10.62485 -7.5 0 -8.05 -7.5

Line 208: 3 16 3.6556 -7.5681 -7.5 7.044 -8.85854 -7.5 4.40105 -10.62485 -7.5

Line 209: 4 16 4.40105 -10.62485 -7.5 -3.6446 -7.5681 -7.5 -3.08074 -7.4374 -7.5 0 -8.05 -7.5

Line 210: 4 16 4.40105 -10.62485 -7.5 -2.1613 -8.13165 -5 -3.6446 -7.5681 -5 -3.6446 -7.5681 -7.5

Line 211: 3 16 4.40105 -10.62486 -5 -2.1613 -8.13165 -5 4.40105 -10.62485 -7.5

Line 212: 3 16 -2.54689 -10.99355 -7.5 -3.46401 -8.13165 -5 -2.54689 -10.99355 -5

Line 213: 4 16 -2.54689 -10.99355 -7.5 -3.6446 -7.5681 -7.5 -3.6446 -7.5681 -5 -3.46401 -8.13165 -5

Line 214: 3 16 -5.69216 -5.69216 -7.5 -3.08074 -7.4374 -7.5 -3.6446 -7.5681 -7.5

Line 215: 4 16 -5.69216 -5.69216 -7.5 -3.6446 -7.5681 -7.5 -2.54689 -10.99355 -7.5 -4.40105 -10.62485 -7.5

Line 216: 4 16 -5.69216 -5.69216 -7.5 -4.40105 -10.62485 -7.5 -5.65136 -9.78925 -7.5 -7.4374 -3.08074 -7.5

Line 217: 3 16 -5.65136 -9.78925 -7.5 -8.1894 -1.8692 -7.5 -7.4374 -3.08074 -7.5

Line 218: 4 16 -5.65136 -9.78925 -7.5 -6.18255 -8.13165 -5 -8.1894 -1.8692 -5 -8.1894 -1.8692 -7.5

Line 219: 3 16 -5.65136 -9.78925 -5 -6.18255 -8.13165 -5 -5.65136 -9.78925 -7.5

Line 220: 4 16 -8.1894 -1.8692 -5 -10.24946 -4.96275 -5 -10.24946 -4.96275 -7.5 -8.1894 -1.8692 -7.5

Line 221: 3 16 -8.1894 -1.8692 -7.5 -8.05 0 -7.5 -7.4374 -3.08074 -7.5

Line 222: 4 16 -8.1894 -1.8692 -7.5 -10.24946 -4.96275 -7.5 -10.62485 -4.40105 -7.5 -8.05 0 -7.5

Line 223: 4 16 -11.16771 -1.67105 -7.5 -7.4374 3.08074 -7.5 -8.05 0 -7.5 -10.62485 -4.40105 -7.5

Line 224: 4 16 -11.16771 -1.67105 -7.5 -6.5674 5.2373 -7.5 -5.69216 5.69216 -7.5 -7.4374 3.08074 -7.5

Line 225: 4 16 -11.16771 -1.67105 -7.5 -11.16771 -1.67105 -5 -6.5674 5.2373 -5 -6.5674 5.2373 -7.5

Line 226: 4 16 -6.5674 5.2373 -5 -10.27915 4.91833 -5 -10.27915 4.91833 -7.5 -6.5674 5.2373 -7.5

Line 227: 3 16 -6.5674 5.2373 -7.5 -10.27915 4.91833 -7.5 -8.43683 7.67501 -7.5

Line 228: 4 16 -5.69216 5.69216 -7.5 -6.5674 5.2373 -7.5 -8.43683 7.67501 -7.5 -3.08074 7.4374 -7.5

Line 229: 4 16 0 8.05 -7.5 -3.08074 7.4374 -7.5 -8.43683 7.67501 -7.5 0 8.4 -7.5

Line 230: 3 16 -8.43683 7.67501 -7.5 -8.43683 7.67501 -5 -3.12282 8.13165 -5

Line 231: 4 16 -8.43683 7.67501 -7.5 -3.12282 8.13165 -5 0 8.4 -5 0 8.4 -7.5

Line 232: 4 16 0 8.4 -7.5 0 8.4 -5 -2.47353 11.00814 -5 -2.47353 11.00814 -7.5

Line 233: 4 16 .77384 11.34612 -7.5 3.08074 7.4374 -7.5 0 8.05 -7.5 0 8.4 -7.5

Line 234: 4 16 .77384 11.34612 -7.5 0 8.4 -7.5 -2.47353 11.00814 -7.5 0 11.5 -7.5

Line 235: 4 16 6.5674 5.2373 -7.5 5.69216 5.69216 -7.5 3.08074 7.4374 -7.5 .77384 11.34612 -7.5

Line 236: 4 16 .77384 11.34612 -7.5 3.82242 8.13165 -5 6.5674 5.2373 -5 6.5674 5.2373 -7.5

Line 237: 3 16 .77384 11.34612 -7.5 .77384 11.34612 -5 3.82242 8.13165 -5

Line 238: 3 16 7.07039 8.8409 -7.5 6.9714 8.13165 -5 7.07039 8.8409 -5

Line 239: 4 16 7.07039 8.8409 -7.5 6.5674 5.2373 -7.5 6.5674 5.2373 -5 6.9714 8.13165 -5

Line 240: 3 16 6.5674 5.2373 -7.5 7.4374 3.08074 -7.5 5.69216 5.69216 -7.5

Line 241: 4 16 7.07039 8.8409 -7.5 8.13165 8.13165 -7.5 7.4374 3.08074 -7.5 6.5674 5.2373 -7.5

Line 242: 4 16 9.33414 6.33236 -7.5 8.05 0 -7.5 7.4374 3.08074 -7.5 8.13165 8.13165 -7.5

Line 243: 4 16 7.4374 -3.08074 -7.5 8.05 0 -7.5 9.33414 6.33236 -7.5 8.1894 -1.8692 -7.5

Line 244: 4 16 9.33414 6.33236 -7.5 9.33414 6.33236 -5 8.1894 -1.8692 -5 8.1894 -1.8692 -7.5

Line 245: 4 16 11.5 0 -5 11.48386 .08115 -5 8.1894 -1.8692 -5 7.3912 -3.0616 -5

Line 246: 4 16 11.5 0 -5 7.3912 -3.0616 -5 5.6568 -5.6568 -5 10.84214 -3.3083 -5

Line 247: 4 16 3.6556 -7.5681 -5 10.84214 -3.3083 -5 5.6568 -5.6568 -5 3.0616 -7.3912 -5

Line 248: 4 16 3.6556 -7.5681 -5 3.0616 -7.3912 -5 0 -8 -5 5.13536 -8.13165 -5

Line 249: 3 16 -2.1613 -8.13165 -5 5.13536 -8.13165 -5 0 -8 -5

Line 250: 4 16 -2.1613 -8.13165 -5 0 -8 -5 -3.0616 -7.3912 -5 -3.6446 -7.5681 -5

Line 251: 3 16 -6.18255 -8.13165 -5 -3.46401 -8.13165 -5 -3.6446 -7.5681 -5

Line 252: 4 16 -6.18255 -8.13165 -5 -3.6446 -7.5681 -5 -3.0616 -7.3912 -5 -5.6568 -5.6568 -5

Line 253: 3 16 -6.18255 -8.13165 -5 -5.6568 -5.6568 -5 -7.3912 -3.0616 -5

Line 254: 3 16 -6.18255 -8.13165 -5 -7.3912 -3.0616 -5 -8.1894 -1.8692 -5

Line 256: 4 16 -8 0 -5 -10.62485 -4.40105 -5 -10.24946 -4.96275 -5 -8.1894 -1.8692 -5

Line 257: 4 16 -8 0 -5 -7.3912 3.0616 -5 -11.16771 -1.67105 -5 -10.62485 -4.40105 -5

Line 258: 4 16 -6.5674 5.2373 -5 -11.16771 -1.67105 -5 -7.3912 3.0616 -5 -5.6568 5.6568 -5

Line 259: 4 16 -6.5674 5.2373 -5 -5.6568 5.6568 -5 -3.0616 7.3912 -5 -3.12282 8.13165 -5

Line 260: 4 16 -6.5674 5.2373 -5 -3.12282 8.13165 -5 -8.43683 7.67501 -5 -10.27915 4.91833 -5

Line 261: 3 16 0 8 -5 -3.12282 8.13165 -5 -3.0616 7.3912 -5

Line 262: 3 16 0 8 -5 3.82242 8.13165 -5 -3.12282 8.13165 -5

Line 263: 3 16 0 8 -5 3.0616 7.3912 -5 3.82242 8.13165 -5

Line 264: 4 16 6.5674 5.2373 -5 3.82242 8.13165 -5 3.0616 7.3912 -5 5.6568 5.6568 -5

Line 266: 4 16 6.5674 5.2373 -5 7.3912 3.0616 -5 9.33414 6.33236 -5 6.9714 8.13165 -5

Line 267: 3 16 8.13165 8.13165 -5 6.9714 8.13165 -5 9.33414 6.33236 -5

Line 268: 3 16 8 0 -5 9.33414 6.33236 -5 7.3912 3.0616 -5

Line 269: 4 16 8 0 -5 7.3912 -3.0616 -5 8.1894 -1.8692 -5 9.33414 6.33236 -5

Line 271: 2 24 10.84214 -3.3083 -5 3.6556 -7.5681 -5

Line 272: 2 24 3.6556 -7.5681 -5 5.13536 -8.13165 -5

Line 273: 2 24 -2.1613 -8.13165 -5 -3.6446 -7.5681 -5

Line 274: 2 24 -3.6446 -7.5681 -5 -3.46401 -8.13165 -5

Line 275: 2 24 -6.18255 -8.13165 -5 -8.1894 -1.8692 -5

Line 276: 2 24 -8.1894 -1.8692 -5 -10.24946 -4.96275 -5

Line 277: 2 24 -11.16771 -1.67105 -5 -6.5674 5.2373 -5

Line 278: 2 24 -6.5674 5.2373 -5 -10.27915 4.91833 -5

Line 279: 2 24 -8.43683 7.67501 -5 -3.12282 8.13165 -5

Line 280: 2 24 3.82242 8.13165 -5 6.5674 5.2373 -5

Line 281: 2 24 6.5674 5.2373 -5 6.9714 8.13165 -5

Line 282: 2 24 9.33414 6.33236 -5 8.1894 -1.8692 -5

Line 283: 2 24 8.1894 -1.8692 -5 11.48386 .08115 -5

Line 284: 2 24 10.84214 -3.3083 -5 10.84214 -3.3083 -7.5

Line 286: 2 24 7.044 -8.85854 -5 7.044 -8.85854 -7.5

Line 287: 2 24 4.40105 -10.62485 -5 4.40105 -10.62486 -7.5

Line 289: 2 24 -2.54689 -10.99355 -5 -2.54689 -10.99355 -7.5

Line 290: 2 24 -5.65136 -9.78925 -5 -5.65136 -9.78925 -7.5

Line 292: 2 24 -10.24946 -4.96275 -5 -10.24946 -4.96275 -7.5

Line 293: 2 24 -11.16771 -1.67105 -5 -11.16771 -1.67105 -7.5

Line 295: 2 24 -10.27915 4.91833 -5 -10.27915 4.91833 -7.5

Line 296: 2 24 -8.43683 7.67501 -5 -8.43683 7.67501 -7.5

Line 298: 2 24 -2.47353 11.00814 -5 -2.47353 11.00814 -7.5

Line 299: 2 24 .77384 11.34612 -5 .77384 11.34612 -7.5

Line 301: 2 24 7.07039 8.8409 -5 7.07039 8.8409 -7.5

Line 302: 2 24 9.33414 6.33236 -5 9.33414 6.33236 -7.5

Line 304: 2 24 11.48386 .08115 -5 11.48386 .08115 -7.5

Line 305: 2 24 11.5 0 -7.5 10.84214 -3.3083 -7.5

Line 306: 2 24 10.84214 -3.3083 -7.5 3.6556 -7.5681 -7.5

Line 307: 2 24 3.6556 -7.5681 -7.5 7.044 -8.85854 -7.5

Line 308: 2 24 7.044 -8.85854 -7.5 4.40105 -10.62485 -7.5

Line 309: 2 24 4.40105 -10.62485 -7.5 -3.6446 -7.5681 -7.5

Line 310: 2 24 -3.6446 -7.5681 -7.5 -2.54689 -10.99355 -7.5

Line 311: 2 24 -2.54689 -10.99355 -7.5 -4.40105 -10.62485 -7.5

Line 312: 2 24 -4.40105 -10.62485 -7.5 -5.65136 -9.78925 -7.5

Line 313: 2 24 -5.65136 -9.78925 -7.5 -8.1894 -1.8692 -7.5

Line 314: 2 24 -8.1894 -1.8692 -7.5 -10.24946 -4.96275 -7.5

Line 315: 2 24 -10.24946 -4.96275 -7.5 -10.62485 -4.40105 -7.5

Line 316: 2 24 -10.62485 -4.40105 -7.5 -11.16771 -1.67105 -7.5

Line 317: 2 24 -11.16771 -1.67105 -7.5 -6.5674 5.2373 -7.5

Line 318: 2 24 -6.5674 5.2373 -7.5 -10.27915 4.91833 -7.5

Line 319: 2 24 -10.27915 4.91833 -7.5 -8.43683 7.67501 -7.5

Line 320: 2 24 -8.43683 7.67501 -7.5 0 8.4 -7.5

Line 321: 2 24 0 8.4 -7.5 -2.47353 11.00814 -7.5

Line 322: 2 24 -2.47353 11.00814 -7.5 0 11.5 -7.5

Line 323: 2 24 0 11.5 -7.5 .77384 11.34612 -7.5

Line 324: 2 24 .77384 11.34612 -7.5 6.5674 5.2373 -7.5

Line 325: 2 24 6.5674 5.2373 -7.5 7.07039 8.8409 -7.5

Line 326: 2 24 7.07039 8.8409 -7.5 8.13165 8.13165 -7.5

Line 327: 2 24 8.13165 8.13165 -7.5 9.33414 6.33236 -7.5

Line 328: 2 24 9.33414 6.33236 -7.5 8.1894 -1.8692 -7.5

Line 329: 2 24 8.1894 -1.8692 -7.5 11.48386 .08115 -7.5

Line 330: 2 24 11.48386 .08115 -7.5 11.5 0 -7.5

Unofficial parents

Part Events:

Archived Part Events:

Creative Commons Attribution License information

Website copyright ©2003-2026 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor, endorse, or authorize this site. Visit the official Lego website at http://www.lego.com
