File Detail parts/s/31170s01.dat

Official File parts/s/31170s01.dat

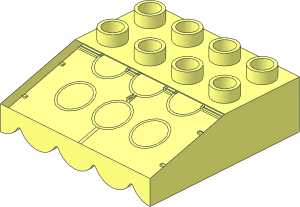

~Duplo Roof Sloped 33 4 x 4 with 9 Bottom Tubes with Awning Overhang without Patternable Surfaces

File Header:

0 ~Duplo Roof Sloped 33  4 x  4 with  9 Bottom Tubes with Awning Overhang without Patternable Surfaces
0 Name: s\31170s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\31170s02.dat

1 16 0 4 40 1 0 0 0 -10 0 0 0 1 stug8-1x3.dat
1 16 -40 9.875 0 1 0 0 0 -8.53125 0 0 0 1 stud8a.dat
1 16 40 9.875 0 1 0 0 0 -8.53125 0 0 0 1 stud8a.dat
1 16 0 21.625 -40 1 0 0 0 -5.59375 0 0 0 1 stud8a.dat

0 // Middle Row
0 BFC INVERTNEXT
1 16 40 9.2875 0 14 0 0 0 -5.2875 0 0 0 14 2-4cyli.dat
1 16 40 9.875 0 16 0 0 0 -5.875 0 0 0 16 2-4cyli.dat
0 BFC INVERTNEXT
1 16 40 9.875 0 14 0 0 0 -.5875 0 0 0 14 4-4cyli.dat
0 BFC INVERTNEXT
1 16 40 9.2875 0 0 0 14 0 -4.1125 0 -14 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 40 9.2875 0 0 0 -14 0 -4.1125 0 -14 0 0 1-4cyls.dat
1 16 40 5.175 0 -14 0 0 0 1 4.1125 0 0 -14 2-4edge.dat
1 16 40 9.875 0 0 0 16 0 -4.7 0 -16 0 0 1-4cyls.dat
1 16 40 9.875 0 0 0 -16 0 -4.7 0 -16 0 0 1-4cyls.dat
1 16 40 5.175 0 -16 0 0 0 1 4.7 0 0 -16 2-4edge.dat
1 16 40 4 0 -14 0 0 0 1 0 0 0 14 2-4edge.dat
1 16 40 4 0 -16 0 0 0 1 0 0 0 16 2-4edge.dat
2 24 24.795401 4 4 24 5.175 0
2 24 54 5.175 0 53.204599 4 4
2 24 26 5.175 0 26.795401 4 4
2 24 56 5.175 0 55.204599 4 4

0 BFC INVERTNEXT
1 16 -40 9.2875 0 14 0 0 0 -5.2875 0 0 0 14 2-4cyli.dat
1 16 -40 9.875 0 16 0 0 0 -5.875 0 0 0 16 2-4cyli.dat
0 BFC INVERTNEXT
1 16 -40 9.875 0 14 0 0 0 -.5875 0 0 0 14 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -40 9.2875 0 0 0 14 0 -4.1125 0 -14 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -40 9.2875 0 0 0 -14 0 -4.1125 0 -14 0 0 1-4cyls.dat
1 16 -40 5.175 0 -14 0 0 0 1 4.1125 0 0 -14 2-4edge.dat
1 16 -40 9.875 0 0 0 16 0 -4.7 0 -16 0 0 1-4cyls.dat
1 16 -40 9.875 0 0 0 -16 0 -4.7 0 -16 0 0 1-4cyls.dat
1 16 -40 5.175 0 -16 0 0 0 1 4.7 0 0 -16 2-4edge.dat
1 16 -40 4 0 -14 0 0 0 1 0 0 0 14 2-4edge.dat
1 16 -40 4 0 -16 0 0 0 1 0 0 0 16 2-4edge.dat
2 24 -55.204599 4 4 -56 5.175 0
2 24 -26 5.175 0 -26.795401 4 4
2 24 -54 5.175 0 -53.204599 4 4
2 24 -24 5.175 0 -24.795401 4 4

0 // Front Row
0 BFC INVERTNEXT
1 16 0 21.625 -40 14 0 0 0 -.5875 0 0 0 14 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 21.0375 -40 0 0 14 0 -4.1125 0 -14 0 0 2-4cyls.dat
0 BFC INVERTNEXT
1 16 0 21.0375 -40 0 0 -14 0 -4.1125 0 -14 0 0 2-4cyls.dat
1 16 0 16.925 -40 0 0 -14 -4.1125 1 0 14 0 0 4-4edge.dat
1 16 0 21.625 -40 0 0 16 0 -4.7 0 -16 0 0 2-4cyls.dat
1 16 0 21.625 -40 0 0 -16 0 -4.7 0 -16 0 0 2-4cyls.dat
1 16 0 16.925 -40 0 0 -16 -4.7 1 0 16 0 0 4-4edge.dat

1 16 -56 4 0 1.5 0 0 0 36 0 0 0 1.5 boxjcyl4.dat
1 16 -24 4 0 -1.5 0 0 0 36 0 0 0 1.5 boxjcyl4.dat
1 16 24 4 0 1.5 0 0 0 36 0 0 0 1.5 boxjcyl4.dat
1 16 56 4 0 -1.5 0 0 0 36 0 0 0 1.5 boxjcyl4.dat
1 16 -66 4 0 10 0 0 0 36 0 0 0 1.5 box3u5p.dat
1 16 -20 4 0 4 0 0 0 36 0 0 0 1.5 box3u8p.dat
1 16 20 4 0 4 0 0 0 36 0 0 0 1.5 box3u8p.dat
1 16 66 4 0 -10 0 0 0 36 0 0 0 1.5 box3u5p.dat
2 24 -24.2984 5.6156 -1.5 -15.7016 5.6156 -1.5
2 24 -24.2984 4.7344 1.5 -15.7016 4.7344 1.5
2 24 24.2984 5.6156 -1.5 15.7016 5.6156 -1.5
2 24 24.2984 4.7344 1.5 15.7016 4.7344 1.5
2 24 -55.7016 4.7344 1.5 -76 4.7344 1.5
2 24 -55.7016 5.6156 -1.5 -76 5.6156 -1.5
2 24 55.7016 4.7344 1.5 76 4.7344 1.5
2 24 55.7016 5.6156 -1.5 76 5.6156 -1.5

1 16 0 21 -56 0 0 -1.5 0 19 0 1.5 0 0 boxjcyl4.dat
1 16 0 40 -66 1.5 0 0 0 -1 0 0 0 -10 rect3.dat
2 24 -1.5 40 -76 -1.5 27.5 -76
2 24 1.5 27.5 -76 1.5 40 -76
2 24 1.5 21.625 -56 1.5 21.5374 -55.7016
2 24 -1.5 21.5374 -55.7016 -1.5 21.625 -56
4 16 -1.5 40 -56 -1.5 40 -76 -1.5 27.5 -76 -1.5 21.625 -56
4 16 1.5 40 -56 1.5 21.625 -56 1.5 27.5 -76 1.5 40 -76
2 24 1.5 21.625 -56 1.5 27.5 -76
2 24 -1.5 21.625 -56 -1.5 27.5 -76

1 16 0 4 66 0 0 1.5 0 36 0 -10 0 0 box3u5p.dat
1 16 0 4 56 0 0 -1.5 0 36 0 -1.5 0 0 boxjcyl4.dat

1 16 0 12 -24 0 0 -1.5 0 28 0 -1.5 0 0 boxjcyl4.dat
1 16 0 4 24 0 0 -1.5 0 36 0 1.5 0 0 boxjcyl4.dat
1 16 0 9 -20 0 0 -1.5 0 31 0 4 0 0 box3u8p.dat
1 16 0 4 20 0 0 -1.5 0 36 0 4 0 0 box3u8p.dat
2 24 1.5 9.7874 -15.7016 1.5 12.3126 -24.2984
2 24 -1.5 12.3126 -24.2984 -1.5 9.7874 -15.7016

Status:

Official

This part has the following errors

Decimal precision exceeds 5 significant places

Line text: 2 24 24.795401 4 4 24 5.175 0
Decimal precision exceeds 5 significant places

Line text: 2 24 54 5.175 0 53.204599 4 4
Decimal precision exceeds 5 significant places

Line text: 2 24 26 5.175 0 26.795401 4 4
Decimal precision exceeds 5 significant places

Line text: 2 24 56 5.175 0 55.204599 4 4
Decimal precision exceeds 5 significant places

Line text: 2 24 -55.204599 4 4 -56 5.175 0
Decimal precision exceeds 5 significant places

Line text: 2 24 -26 5.175 0 -26.795401 4 4
Decimal precision exceeds 5 significant places

Line text: 2 24 -54 5.175 0 -53.204599 4 4
Decimal precision exceeds 5 significant places

Line text: 2 24 -24 5.175 0 -24.795401 4 4

This part has the following warnings

5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 -40 9.875 0 1 0 0 0 -8.53125 0 0 0 1 stud8a.dat
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 40 9.875 0 1 0 0 0 -8.53125 0 0 0 1 stud8a.dat
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 0 21.625 -40 1 0 0 0 -5.59375 0 0 0 1 stud8a.dat
