File Detail parts/s/31170s02.dat

Official File parts/s/31170s02.dat

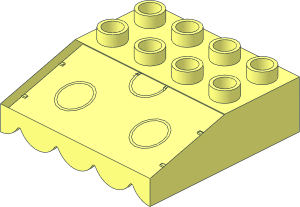

~Duplo Roof Sloped 33 4 x 4 with Awning Overhang without Patternable Surfaces

File Header:

0 ~Duplo Roof Sloped 33  4 x  4 with Awning Overhang without Patternable Surfaces
0 Name: s\31170s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
