Official File parts/s/33195s01.dat

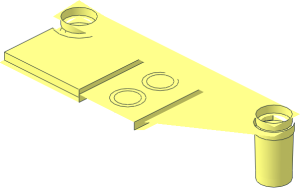

~Scala Platform 7 x 14 x 1.333 with 8 Legs, Quarter
File Header:
0 ~Scala Platform 7 x 14 x 1.333 with 8 Legs, Quarter 0 Name: s\33195s01.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Subpart UPDATE 2024-05 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
1 16 -70 0 0 1 0 0 0 1 0 0 0 1 s\6965s01.dat 2 24 -53 4 17 -53 8 17 4 16 -50 8 20 -53 8 17 -53 8 66 -50 8 66 4 16 -16.6071 8 66 -50 8 66 -64.5928 8 67.5 -10 8 68.5 3 16 -64.5928 8 67.5 -140 8 70 -10 8 68.5 3 16 -50 8 66 -53 8 66 -64.5928 8 67.5 1 16 -33.3036 6 66 0 0 16.69645 2 0 0 0 1 0 rect3.dat 3 16 -19 4 60 -50 4 66 -16.6071 4 66 4 16 -50 4 20 -50 4 66 -19 4 60 -19 4 51 3 16 -50 4 20 -19 4 51 -10 4 51 3 16 -50 4 20 -10 4 51 -1 4 51 1 16 -10 4 60 9 0 0 0 -1 0 0 0 -9 2-4ndis.dat 1 16 -10 8 60 8.314916 0 3.444151 0 -4 0 3.444151 0 -8.314916 5-8cylo.dat 1 16 -17.461 6 64.7221 0 1 .85385 -2 0 0 0 0 1.27795 rect3.dat 1 16 -2.539 6 64.7221 0 -1 -.8539 2 0 0 0 0 1.2779 rect3.dat 1 16 -10 8 60 8.314916 0 3.444151 0 -1 0 3.444151 0 -8.314916 5-8chrd.dat 5 24 -1.6851 8 63.4442 -1.6851 4 63.4442 -1 4 60 -3.3929 4 66 5 24 -18.3149 4 63.4442 -18.3149 8 63.4442 -16.6072 4 66 -19 4 60 4 16 -1.6851 8 63.4442 -18.3148 8 63.4441 -16.6071 8 66 -3.3929 8 66 3 16 -16.6071 8 66 -10 8 68.5 -3.3929 8 66 1 16 -10 8 60 1 0 0 0 20 0 0 0 1 s\6941s01.dat 1 16 -10 28 60 1 0 0 0 -1 0 0 0 1 stud4a.dat 0 // Top 1 16 -10 4 60 2 0 0 0 1 0 0 0 2 4-4ring3.dat 0 BFC INVERTNEXT 1 16 -10 4 60 8 0 0 0 -4 0 0 0 8 4-4cylo.dat 1 16 -10 0 60 8 0 0 0 1 0 0 0 8 4-4ndis.dat
Status:
Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 -10 8 60 8.314916 0 3.444151 0 -4 0 3.444151 0 -8.314916 5-8cylo.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 -10 8 60 8.314916 0 3.444151 0 -1 0 3.444151 0 -8.314916 5-8chrd.dat
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 -33.3036 6 66 0 0 16.69645 2 0 0 0 1 0 rect3.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 -17.461 6 64.7221 0 1 .85385 -2 0 0 0 0 1.27795 rect3.dat
  • Number in description may need a leading space
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
