Official File parts/s/3437pe1s01.dat
File Header:

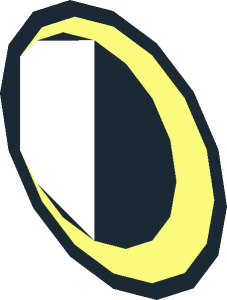

0 ~Duplo Brick 2 x 2 with Eye Pattern
0 Name: s\3437pe1s01.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Subpart UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03
Show contents
1 0 0 24 0 0 0 2 -2 0 0 0 1 0 2-4ring8.dat
1 0 0 24 0 0 0 -2 2 0 0 0 1 0 3-16ring8.dat
1 0 0 24 0 0 0 -2 -2 0 0 0 1 0 3-16ring8.dat
1 0 0 24 0 -18 0 0 0 0 18 0 1 0 1-16chrd.dat
1 0 0 24 0 -18 0 0 0 0 -18 0 1 0 1-16chrd.dat
1 0 -3 24 0 0 0 13 -13 0 0 0 1 0 2-4chrd.dat
1 0 -3 24 0 0 0 -13 13 0 0 0 1 0 1-8chrd.dat
1 0 -3 24 0 0 0 -13 -13 0 0 0 1 0 1-8chrd.dat
3 0 -16.6302 17.1114 0 -18 24 0 -16.6302 30.8886 0
4 0 -14.7824 17.8768 0 -16.6302 17.1114 0 -16.6302 30.8886 0 -14.7824 30.1232 0
1 16 0 24 0 16 0 0 0 0 16 0 1 0 1-8chrd.dat
1 16 0 24 0 16 0 0 0 0 -16 0 1 0 1-8chrd.dat
1 16 0 24 0 0 0 16 -16 0 0 0 1 0 1-8chrd.dat
1 16 0 24 0 0 0 -16 -16 0 0 0 1 0 1-8chrd.dat
1 16 0 24 0 0 0 16 16 0 0 0 1 0 1-8chrd.dat
1 16 0 24 0 0 0 -16 16 0 0 0 1 0 1-8chrd.dat
1 16 0 24 0 -11.313708 0 -11.313708 -11.313708 0 11.313708 0 1 0 1-16chrd.dat
1 16 0 24 0 -11.313708 0 -11.313708 11.313708 0 -11.313708 0 1 0 1-16chrd.dat
1 16 -3 24 0 0 0 13 -13 0 0 0 1 0 1-4tang.dat
1 16 -3 24 0 0 0 13 13 0 0 0 1 0 1-4tang.dat
1 16 -3 24 0 0 0 -13 13 0 0 0 1 0 1-8tang.dat
1 16 -3 24 0 0 0 -13 -13 0 0 0 1 0 1-8tang.dat
3 16 -11.3136 12.6864 0 -14.7824 17.8768 0 -12.1923 14.8077 0
3 16 -11.3136 12.6864 0 -12.1923 14.8077 0 -10.3645 12.9786 0
3 16 -11.3136 12.6864 0 -10.3645 12.9786 0 -7.9751 11.9893 0
4 16 -7.9751 11.9893 0 -5.5857 11 0 0 8 0 -11.3136 12.6864 0
3 16 0 8 0 -5.5857 11 0 -3 11 0
3 16 0 8 0 -3 11 0 -.4143 11 0
3 16 0 8 0 -.4143 11 0 1.9751 11.9893 0
4 16 11.3136 12.6864 0 0 8 0 1.9751 11.9893 0 4.3645 12.9786 0
3 16 11.3136 12.6864 0 4.3645 12.9786 0 6.1923 14.8077 0
3 16 11.3136 12.6864 0 6.1923 14.8077 0 8.0214 16.6355 0
3 16 11.3136 12.6864 0 8.0214 16.6355 0 9.0107 19.0249 0
4 16 9.0107 19.0249 0 10 21.4143 0 16 24 0 11.3136 12.6864 0
3 16 16 24 0 10 21.4143 0 10 24 0
3 16 -14.7824 30.1232 0 -11.3136 35.3136 0 -12.1923 33.1923 0
3 16 -12.1923 33.1923 0 -11.3136 35.3136 0 -10.3645 35.0214 0
3 16 -10.3645 35.0214 0 -11.3136 35.3136 0 -7.9751 36.0107 0
4 16 0 40 0 -5.5857 37 0 -7.9751 36.0107 0 -11.3136 35.3136 0
3 16 -5.5857 37 0 0 40 0 -3 37 0
3 16 -3 37 0 0 40 0 -.4143 37 0
3 16 -.4143 37 0 0 40 0 1.9751 36.0107 0
4 16 1.9751 36.0107 0 0 40 0 11.3136 35.3136 0 4.3645 35.0214 0
3 16 4.3645 35.0214 0 11.3136 35.3136 0 6.1923 33.1923 0
3 16 6.1923 33.1923 0 11.3136 35.3136 0 8.0214 31.3645 0
3 16 8.0214 31.3645 0 11.3136 35.3136 0 9.0107 28.9751 0
4 16 16 24 0 10 26.5857 0 9.0107 28.9751 0 11.3136 35.3136 0
3 16 10 26.5857 0 16 24 0 10 24 0
Status:
Official
This part has the following errors
-
Decimal precision exceeds 5 significant placesLine 29: 1 16 0 24 0 -11.313708 0 -11.313708 -11.313708 0 11.313708 0 1 0 1-16chrd.datLine 30: 1 16 0 24 0 -11.313708 0 -11.313708 11.313708 0 -11.313708 0 1 0 1-16chrd.dat
