Official File parts/s/39144s01.dat

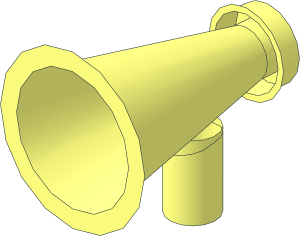

~Minifig Megaphone without Patternable Surfaces
File Header:
0 ~Minifig Megaphone without Patternable Surfaces 0 Name: s\39144s01.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Subpart UPDATE 2023-03 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03
Show contents
1 16 0 0 10 1 0 0 0 0 1 0 -1 0 stud2a.dat 1 16 0 0 10 6 0 0 0 0 6 0 -1 0 4-4edge.dat 1 16 0 0 10 4 0 0 0 0 4 0 -1 0 4-4edge.dat 1 16 0 0 10 1 0 0 0 0 1 0 -1 0 4-4ring6.dat 1 16 0 0 10 7 0 0 0 0 7 0 -1 0 4-4edge.dat 0 // Cones adjusted for R4 to R10.5 over 32.5 0 BFC INVERTNEXT 1 16 0 0 7.5 .5 0 0 0 0 .5 0 2.5 0 4-4con8.dat 0 BFC INVERTNEXT 1 16 0 0 -15 4.5 0 0 0 0 4.5 0 22.5 0 4-4con1.dat 0 BFC INVERTNEXT 1 16 0 0 -22.5 1.5 0 0 0 0 1.5 0 7.5 0 4-4con6.dat 1 16 0 0 -22.5 1.5 0 0 0 0 1.5 0 1 0 4-4ring7.dat 1 16 0 0 -22.5 1.5 0 0 0 0 1.5 0 1 0 4-4ring8.dat 1 16 0 0 -22.5 10.5 0 0 0 0 10.5 0 -1 0 4-4edge.dat 1 16 0 0 -22.5 13.5 0 0 0 0 13.5 0 -1 0 4-4edge.dat 0 // Cones adjusted for R7 to R13.5 over 32.5 1 16 0 20 0 4 0 0 0 -13 0 0 0 4 4-4cylc.dat 2 24 1.5308 9.43472 -3.6956 0 9.8 -4 2 24 -1.5308 9.43472 -3.6956 0 9.8 -4 2 24 2.8284 9.003252 -2.8284 3.575251 8.631236 -1.71088 2 24 3.6956 8.508319 -1.5308 3.575251 8.631236 -1.71088 2 24 1.5308 9.43472 -3.6956 2.8284 9.003252 -2.8284 2 24 4 7.94372 0 3.6956 8.508319 -1.5308 2 24 -3.279475 7.917185 2.153452 -3.6956 7.785988 1.5308 2 24 -4 7.94372 0 -3.6956 8.508319 -1.5308 2 24 -4 7.94372 0 -3.6956 7.785988 1.5308 2 24 -3.575251 8.631236 -1.71088 -3.6956 8.508319 -1.5308 2 24 0 8.2 4 -1.5308 7.95648 3.6956 2 24 -3.279475 7.917185 2.153452 -2.8284 7.871892 2.8284 2 24 -2.8284 7.871892 2.8284 -1.5308 7.95648 3.6956 2 24 -2.8284 9.003252 -2.8284 -1.5308 9.43472 -3.6956 2 24 -2.8284 9.003252 -2.8284 -3.575251 8.631236 -1.71088 2 24 2.8284 7.871892 2.8284 1.5308 7.95648 3.6956 2 24 2.8284 7.871892 2.8284 3.279475 7.917185 2.153452 2 24 1.5308 7.95648 3.6956 0 8.2 4 2 24 4 7.94372 0 3.6956 7.785988 1.5308 2 24 3.6956 7.785988 1.5308 3.279475 7.917185 2.153452
Status:
Official Official
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 33: 2 24 1.5308 9.43472 -3.6956 0 9.8 -4
    Line 34: 2 24 -1.5308 9.43472 -3.6956 0 9.8 -4
    Line 37: 2 24 1.5308 9.43472 -3.6956 2.8284 9.003252 -2.8284
    Line 38: 2 24 4 7.94372 0 3.6956 8.508319 -1.5308
    Line 40: 2 24 -4 7.94372 0 -3.6956 8.508319 -1.5308
    Line 41: 2 24 -4 7.94372 0 -3.6956 7.785988 1.5308
    Line 43: 2 24 0 8.2 4 -1.5308 7.95648 3.6956
    Line 50: 2 24 1.5308 7.95648 3.6956 0 8.2 4
    Line 51: 2 24 4 7.94372 0 3.6956 7.785988 1.5308
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line 35: 2 24 2.8284 9.003252 -2.8284 3.575251 8.631236 -1.71088
    Line 36: 2 24 3.6956 8.508319 -1.5308 3.575251 8.631236 -1.71088
    Line 39: 2 24 -3.279475 7.917185 2.153452 -3.6956 7.785988 1.5308
    Line 42: 2 24 -3.575251 8.631236 -1.71088 -3.6956 8.508319 -1.5308
    Line 44: 2 24 -3.279475 7.917185 2.153452 -2.8284 7.871892 2.8284
    Line 45: 2 24 -2.8284 7.871892 2.8284 -1.5308 7.95648 3.6956
    Line 46: 2 24 -2.8284 9.003252 -2.8284 -1.5308 9.43472 -3.6956
    Line 47: 2 24 -2.8284 9.003252 -2.8284 -3.575251 8.631236 -1.71088
    Line 48: 2 24 2.8284 7.871892 2.8284 1.5308 7.95648 3.6956
    Line 49: 2 24 2.8284 7.871892 2.8284 3.279475 7.917185 2.153452
    Line 52: 2 24 3.6956 7.785988 1.5308 3.279475 7.917185 2.153452
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
