Official File parts/s/40375s02.dat

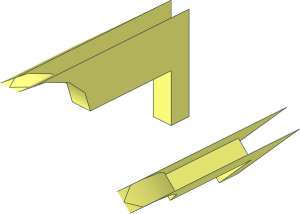

~Animal Tail Joint with Long Pin - Neck Connection
File Header:
0 ~Animal Tail Joint with Long Pin - Neck Connection 0 Name: s\40375s02.dat 0 Author: Massimo Maso [Sirio] 0 !LDRAW_ORG Subpart UPDATE 2024-08 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 !HELP Use only with rotation of 90 degrees or mirroring 0 BFC CERTIFY CCW 0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
0 // Orthogonal protrusion 0 BFC INVERTNEXT 1 16 0 -10.5 -46.5 1 0 0 0 -2.5 0 0 0 4.5 box2-5.dat 1 16 -1 -13 -59 0 1 0 0 0 -5 8 0 0 1-4ndis.dat 0 BFC INVERTNEXT 1 16 -1 -13 -59 0 2 0 0 0 -5 8 0 0 1-4cylo.dat 1 16 1 -13 -59 0 -1 0 0 0 -5 8 0 0 1-4ndis.dat 1 16 0 -8 -41 1 0 0 0 -1 0 0 0 1 rect3.dat 0 // Faces 4 16 -1 -17.8012 -40 -1 -8 -40 -1 -8 -42 -1 -13 -42 4 16 -1 -17.8012 -40 -1 -13 -42 -1 -13 -51 -1 -18 -51 4 16 1 -17.8012 -40 1 -13 -42 1 -8 -42 1 -8 -40 4 16 1 -17.8012 -40 1 -18 -51 1 -13 -51 1 -13 -42 0 // Edges 2 24 -1 -17.8012 -40 -1 -8 -40 2 24 1 -17.8012 -40 1 -8 -40 2 24 1 -17.8012 -57.4 1 -17.8012 -40 2 24 -1 -17.8012 -57.4 -1 -17.8012 -40 2 24 -1 -17.8012 -57.4 0 -18 -59 2 24 0 -18 -59 1 -17.8012 -57.4 0 // Inclined protrusion 0 // Primitives 0 BFC INVERTNEXT 1 16 7.425 -7.425 -46.5 .70711 1.76777 0 .70711 -1.76777 0 0 0 4.5 box2-5.dat 1 16 8.485 -9.899 -59 0 0 3.53553 0 1 -3.53553 8 0 0 1-4ndis.dat 0 BFC INVERTNEXT 1 16 8.485 -9.899 -59 0 1.41421 3.53553 0 1.41421 -3.53553 8 0 0 1-4cylo.dat 1 16 9.899 -8.485 -59 0 0 3.53553 0 -1 -3.53553 8 0 0 1-4ndis.dat 1 16 5.657 -5.657 -41 .70711 0 0 .70711 -1 0 0 0 1 rect3.dat 0 // Faces 4 16 11.8801 -13.2943 -40 4.94989 -6.36411 -40 4.94989 -6.36411 -42 8.48566 -9.89988 -42 4 16 13.2943 -11.8801 -40 9.89988 -8.48566 -42 6.36411 -4.94989 -42 6.36411 -4.94989 -40 4 16 11.8801 -13.2943 -40 8.48566 -9.89988 -42 8.48566 -9.89988 -51 12.02053 -13.43453 -51 4 16 13.2943 -11.8801 -40 13.43453 -12.02053 -51 9.89988 -8.48566 -51 9.89988 -8.48566 -42 0 // Edges 2 24 11.8801 -13.2943 -40 4.94989 -6.36411 -40 2 24 13.2943 -11.8801 -40 6.36411 -4.94989 -40 2 24 11.8801 -13.2943 -40 11.8801 -13.2943 -57.4 2 24 13.2943 -11.8801 -40 13.2943 -11.8801 -57.4 2 24 11.8801 -13.2943 -57.4 12.7278 -12.7278 -59 2 24 12.7278 -12.7278 -59 13.2943 -11.8801 -57.4
Status:
Official Official
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 7.425 -7.425 -46.5 .70711 1.76777 0 .70711 -1.76777 0 0 0 4.5 box2-5.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 8.485 -9.899 -59 0 0 3.53553 0 1 -3.53553 8 0 0 1-4ndis.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 8.485 -9.899 -59 0 1.41421 3.53553 0 1.41421 -3.53553 8 0 0 1-4cylo.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 9.899 -8.485 -59 0 0 3.53553 0 -1 -3.53553 8 0 0 1-4ndis.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 5.657 -5.657 -41 .70711 0 0 .70711 -1 0 0 0 1 rect3.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 11.8801 -13.2943 -40 4.94989 -6.36411 -40 4.94989 -6.36411 -42 8.48566 -9.89988 -42
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 13.2943 -11.8801 -40 9.89988 -8.48566 -42 6.36411 -4.94989 -42 6.36411 -4.94989 -40
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 11.8801 -13.2943 -40 8.48566 -9.89988 -42 8.48566 -9.89988 -51 12.02053 -13.43453 -51
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 13.2943 -11.8801 -40 13.43453 -12.02053 -51 9.89988 -8.48566 -51 9.89988 -8.48566 -42
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 11.8801 -13.2943 -40 4.94989 -6.36411 -40
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 13.2943 -11.8801 -40 6.36411 -4.94989 -40
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Massimo Maso
Licensed under CC BY 4.0
