Official File parts/s/40598as01.dat

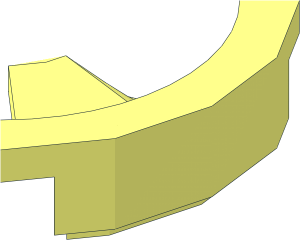

0 ~Minifig Weapon Disc Projectile - Quarter
0 Name: s\40598as01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05Show file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\40598as02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\40598as02.dat
0 // Common Parts Outside and Bottom
1 16 0 8 0 17.55371 0 7.27099 0 -1 0 -7.27099 0 17.55371 1-8chrd.dat
1 16 0 7 0 17.55371 0 7.27099 0 1 0 -7.27099 0 17.55371 1-8cylo.dat
1 16 0 7 0 .92388 0 .38268 0 -1 0 -.38268 0 .92388 1-8ring19.dat
1 16 0 0 0 18.47759 0 7.65367 0 7 0 -7.65367 0 18.47759 1-8cyli.dat
1 16 0 7 0 18.47759 0 7.65367 0 1 0 -7.65367 0 18.47759 1-8edge.dat
3 16 16 8 0 17.5535 8 7.271 17.5535 8 -7.271
1 16 0 0 0 14.14214 0 14.14214 0 1 0 -14.14214 0 14.14214 1-4edge.dat
0 // Inside Wall
0 BFC INVERTNEXT
1 16 0 .5 0 16 0 0 0 2 0 0 0 16 48\1-8cyli.dat
0 BFC INVERTNEXT
1 16 0 .5 0 16 0 0 0 2 0 0 0 -16 48\1-24cyli.dat
0 // Vent Blade Bottom
4 16 7.4941 7.5 2.5439 15.1184 7.5 5.132 15.4544 7.5 4.1408 7.6909 7.5 1.5546
2 24 7.4941 7.5 2.5439 15.1184 7.5 5.132
2 24 15.4544 7.5 4.1408 15.1184 7.5 5.132
2 24 15.4544 7.5 4.1408 7.6909 7.5 1.5546
2 24 7.4941 7.5 2.5439 7.6909 7.5 1.5546
4 16 7.4941 7.5 2.5439 7.4941 5 2.5439 15.1184 5 5.132 15.1184 7.5 5.132
2 24 15.1184 5 5.132 15.1184 7.5 5.132
2 24 7.4941 5 2.5439 15.1184 5 5.132
2 24 7.4941 5 2.5439 7.4941 7.5 2.5439
3 16 11.5219 5 3.103 15.4544 5 4.1408 15.11841 5 5.131971
3 16 7.4941 5 2.5439 11.5219 5 3.103 15.11841 5 5.131971
3 16 7.5893 5 2.0652 11.5219 5 3.103 7.4941 5 2.5439
2 24 15.4544 5 4.1408 15.11841 5 5.131971
2 24 7.4941 5 2.5439 7.5893 5 2.0652
2 24 11.5219 5 3.103 7.5893 5 2.0652
2 24 15.4544 5 4.1408 11.5219 5 3.103
0 // Vent Blade Slanted Section
3 16 12 2.50155 0 16 2.5 0 11.828525 3.775775 1.5603
3 16 8 2.5031 0 12 2.50155 0 7.79465 3.75155 1.0326
3 16 15.8624 3.8 2.088 15.4544 5 4.1408 11.5219 5 3.103
3 16 7.79465 3.75155 1.0326 11.828525 3.775775 1.5603 7.5893 5 2.0652
3 16 11.5219 5 3.103 7.5893 5 2.0652 11.828525 3.775775 1.5603
3 16 11.5219 5 3.103 11.828525 3.775775 1.5603 15.8624 3.8 2.088
3 16 11.828525 3.775775 1.5603 7.79465 3.75155 1.0326 12 2.50155 0
3 16 15.8624 3.8 2.088 11.828525 3.775775 1.5603 16 2.5 0
4 16 15.8624 1.15 -2.088 11.779 .825 -1.8094 11.6773 .5 -2.3228 15.659 .5 -3.1148
3 16 7.6956 .5 -1.5308 11.6773 .5 -2.3228 11.779 .825 -1.8094
3 16 8 2.5031 0 7.6956 .5 -1.5308 11.779 .825 -1.8094
3 16 12 2.50155 0 11.779 .825 -1.8094 15.8624 1.15 -2.088
3 16 15.8624 1.15 -2.088 16 2.5 0 12 2.50155 0
3 16 11.779 .825 -1.8094 12 2.50155 0 8 2.5031 0
2 24 7.79465 3.75155 1.0326 7.5893 5 2.0652
2 24 8 2.5031 0 7.79465 3.75155 1.0326
2 24 7.6956 .5 -1.5308 8 2.5031 0
2 24 15.4544 5 4.1408 15.8624 3.8 2.088
2 24 15.8624 3.8 2.088 16 2.5 0
2 24 16 2.5 0 15.8624 1.15 -2.088
2 24 15.8624 1.15 -2.088 15.659 .5 -3.1148
2 24 11.6773 .5 -2.3228 15.659 .5 -3.1148
2 24 7.6956 .5 -1.5308 11.6773 .5 -2.3228
5 24 7.6956 .5 -1.5308 11.779 .825 -1.8094 11.6773 .5 -2.3228 8 2.5031 0
5 24 8 2.5031 0 12 2.50155 0 7.79465 3.75155 1.0326 11.779 .825 -1.8094
5 24 12 2.50155 0 11.779 .825 -1.8094 15.8624 1.15 -2.088 8 2.5031 0
5 24 11.5219 5 3.103 11.828525 3.775775 1.5603 7.5893 5 2.0652 15.8624 3.8 2.088
5 24 7.5893 5 2.0652 11.828525 3.775775 1.5603 7.79465 3.75155 1.0326 11.5219 5 3.103
5 24 12 2.50155 0 7.79465 3.75155 1.0326 8 2.5031 0 11.828525 3.775775 1.5603
5 24 11.828525 3.775775 1.5603 12 2.50155 0 16 2.5 0 7.79465 3.75155 1.0326
5 24 11.779 .825 -1.8094 15.8624 1.15 -2.088 12 2.50155 0 11.6773 .5 -2.3228
5 24 11.828525 3.775775 1.5603 15.8624 3.8 2.088 16 2.5 0 11.5219 5 3.103
5 24 7.79465 3.75155 1.0326 11.828525 3.775775 1.5603 12 2.50155 0 7.5893 5 2.0652
5 24 12 2.50155 0 15.8624 1.15 -2.088 11.779 .825 -1.8094 16 2.5 0
5 24 15.8624 3.8 2.088 11.5219 5 3.103 15.4544 5 4.1408 11.828525 3.775775 1.5603
5 24 11.779 .825 -1.8094 8 2.5031 0 12 2.50155 0 7.6956 .5 -1.5308
5 24 16 2.5 0 11.828525 3.775775 1.5603 15.8624 3.8 2.088 12 2.50155 0
5 24 12 2.50155 0 16 2.5 0 15.8624 1.15 -2.088 11.828525 3.775775 1.5603
3 16 15.8624 6.1194 2.088 8 5.3 0 7.8455 6.3 .7773
3 16 7.8455 6.3 .7773 7.6909 7.5 1.5546 15.4544 7.5 4.1408
3 16 7.8455 6.3 .7773 15.4544 7.5 4.1408 15.8624 6.1194 2.088
3 16 16 4.9494 0 7.7503 3.6 -1.2558 8 5.3 0
3 16 8 5.3 0 15.8624 6.1194 2.088 16 4.9494 0
3 16 16 4.9494 0 15.8624 3.7464 -2.088 7.7503 3.6 -1.2558
3 16 15.4544 2.5 -4.1408 7.5005 2.5 -2.5116 7.7503 3.6 -1.2558
3 16 7.7503 3.6 -1.2558 15.8624 3.7464 -2.088 15.4544 2.5 -4.1408
2 24 7.5005 2.5 -2.5116 15.4544 2.5 -4.1408
2 24 7.7503 3.6 -1.2558 7.5006 2.5 -2.5115
2 24 8 5.3 0 7.7503 3.6 -1.2558
2 24 7.8455 6.3 .7773 7.6909 7.5 1.5546
2 24 8 5.3 0 7.8455 6.3 .7773
2 24 16 4.9494 0 15.8624 6.1194 2.088
2 24 16 4.9494 0 15.8624 3.7464 -2.088
2 24 15.4544 2.5 -4.1408 15.8624 3.7464 -2.088
2 24 15.4544 7.5 4.1408 15.8624 6.1194 2.088
5 24 15.8624 3.7464 -2.088 7.7503 3.6 -1.2558 15.4544 2.5 -4.1408 16 4.9494 0
5 24 16 4.9494 0 8 5.3 0 7.7503 3.6 -1.2558 15.8624 6.1194 2.088
5 24 15.8624 6.1194 2.088 7.8455 6.3 .7773 8 5.3 0 15.4544 7.5 4.1408
5 24 7.7503 3.6 -1.2558 16 4.9494 0 15.8624 3.7464 -2.088 8 5.3 0
5 24 8 5.3 0 15.8624 6.1194 2.088 16 4.9494 0 7.8455 6.3 .7773
5 24 15.4544 2.5 -4.1408 7.7503 3.6 -1.2558 7.5005 2.5 -2.5116 15.8624 3.7464 -2.088
5 24 15.4544 7.5 4.1408 7.8455 6.3 .7773 7.6909 7.5 1.5546 15.8624 6.1194 2.088
0 // Vent Blade Top
4 16 15.4544 2.5 -4.1408 14.7824 2.5 -6.1232 14.6569 2.5 -6.3774 7.5005 2.5 -2.5116
4 16 7.5005 2.5 -2.5116 14.6569 2.5 -6.3774 12.0037 2.5 -10.527 5.95 2.5 -5.218
3 16 15.8491 2.5 -10.7591 12.0037 2.5 -10.527 14.6569 2.5 -6.3774
3 16 15.8491 2.5 -10.7591 11.3136 2.5 -11.3136 12.0037 2.5 -10.527
2 24 7.3912 2.5 -3.0616 5.950035 2.5 -5.21803
2 24 7.3912 2.5 -3.0616 7.500562 2.5 -2.511631
2 24 14.6569 2.5 -6.3774 14.7824 2.5 -6.1232
2 24 14.7824 2.5 -6.1232 15.4544 2.5 -4.1408
1 16 8.97685 1.5 -7.8725 0 1 -3.02685 -1 0 0 0 0 2.6545 rect3.dat
1 16 11.65865 1.5 -10.9203 .34505 1 0 0 0 1 .3933 0 0 rect2a.dat
4 16 15.4544 .5 -4.1408 15.659 .5 -3.1148 11.6773 .5 -2.3228 14.7824 .5 -6.1232
3 16 11.6773 .5 -2.3228 7.6956 .5 -1.5308 14.7824 .5 -6.1232
4 16 14.7824 .5 -6.1232 7.6956 .5 -1.5308 5.95 .5 -5.218 13.856 .5 -8
4 16 13.856 .5 -8 5.95 .5 -5.218 12.0037 .5 -10.527 12.6944 .5 -9.7408
2 24 12.0037 .5 -10.527 12.6944 .5 -9.7408
2 24 12.6944 .5 -9.7408 13.856 .5 -8
2 24 13.856 .5 -8 14.7824 .5 -6.1232
2 24 14.7824 .5 -6.1232 15.4544 .5 -4.1408
2 24 15.4544 .5 -4.1408 15.659 .5 -3.1148
2 24 7.3912 .5 -3.0616 5.95 .5 -5.218
2 24 7.3912 .5 -3.0616 7.6956 .5 -1.5308
3 16 14.6569 2.5 6.3774 13.856 2.5 8 15.8491 2.5 10.7591
3 16 13.856 2.5 8 12.6944 2.5 9.7408 15.8491 2.5 10.7591
3 16 11.3136 2.5 11.3136 15.8491 2.5 10.7591 12.6944 2.5 9.7408
2 24 11.3136 2.5 11.3136 12.6944 2.5 9.7408
2 24 12.6944 2.5 9.7408 13.856 2.5 8
2 24 13.856 2.5 8 14.6569 2.5 6.3774Status
Official
This part has the following errors
-
Decimal precision exceeds 5 significant placesLine 55: 3 16 11.5219 5 3.103 7.5893 5 2.0652 11.828525 3.775775 1.5603Line 56: 3 16 11.5219 5 3.103 11.828525 3.775775 1.5603 15.8624 3.8 2.088Line 57: 3 16 11.828525 3.775775 1.5603 7.79465 3.75155 1.0326 12 2.50155 0Line 58: 3 16 15.8624 3.8 2.088 11.828525 3.775775 1.5603 16 2.5 0Line 78: 5 24 11.5219 5 3.103 11.828525 3.775775 1.5603 7.5893 5 2.0652 15.8624 3.8 2.088Line 79: 5 24 7.5893 5 2.0652 11.828525 3.775775 1.5603 7.79465 3.75155 1.0326 11.5219 5 3.103Line 81: 5 24 11.828525 3.775775 1.5603 12 2.50155 0 16 2.5 0 7.79465 3.75155 1.0326Line 83: 5 24 11.828525 3.775775 1.5603 15.8624 3.8 2.088 16 2.5 0 11.5219 5 3.103Line 86: 5 24 15.8624 3.8 2.088 11.5219 5 3.103 15.4544 5 4.1408 11.828525 3.775775 1.5603Line 88: 5 24 16 2.5 0 11.828525 3.775775 1.5603 15.8624 3.8 2.088 12 2.50155 0Line 122: 2 24 7.3912 2.5 -3.0616 5.950035 2.5 -5.21803Line 123: 2 24 7.3912 2.5 -3.0616 7.500562 2.5 -2.511631
