File Detail parts/s/41532s01.dat

Official File parts/s/41532s01.dat

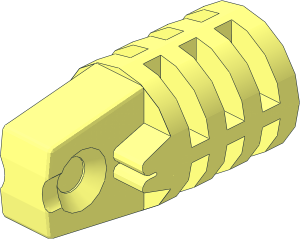

~Hinge Arm Locking with Single Finger and Friction Pin Common Geometry

File Header:

0 ~Hinge Arm Locking with Single Finger and Friction Pin Common Geometry
0 Name: s\41532s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2025-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2022-01-02 [Philo] Subparted from 41532
0 !HISTORY 2025-03-30 [OrionP] Official Update 2025-03

Show contents

1 16 0 0 -10 1 0 0 0 1 0 0 0 1 clh3.dat
1 16 0 0 -10 8.316 0 -3.444 -3.444 0 -8.315 0 1 0 3-8edge.dat
1 16 0 0 -10 -8.316 0 3.444 3.444 0 8.315 0 1 0 3-8edge.dat
1 16 0 0 10 8 0 0 0 0 8 0 -1 0 4-4edge.dat
1 16 0 0 -0.025 1 0 0 0 1 0 0 0 1 s\483s01.dat
1 16 0 0 -5.725 1 0 0 0 1 0 0 0 1 s\483s01.dat
1 16 0 0 5.675 1 0 0 0 1 0 0 0 1 s\483s01.dat
4 16 -8.8011 -0.9989 4.25 -8.8011 -0.9989 1.4 -8.3149 -3.4442 1.4 -8.3149 -3.4442 4.25
4 16 -8.8011 -0.9989 -1.45 -8.8011 -0.9989 -4.3 -8.3149 -3.4442 -4.3 -8.3149 -3.4442 -1.45
4 16 -9 0 -1.45 -9 0 -4.3 -8.8011 -0.9989 -4.3 -8.8011 -0.9989 -1.45
4 16 -9 0 4.25 -9 0 1.4 -8.8011 -0.9989 1.4 -8.8011 -0.9989 4.25
5 24 -9 0 -1.45 -9 0 -4.3 -8.8011 0.9989 -4.3 -8.8011 -0.9989 -4.3
5 24 -9 0 4.25 -9 0 1.4 -8.8011 0.9989 1.4 -8.8011 -0.9989 1.4
4 16 -0.9989 -8.8011 4.25 -0.9989 -8.8011 1.4 0 -9 1.4 0 -9 4.25
4 16 -0.9989 -8.8011 -1.45 -0.9989 -8.8011 -4.3 0 -9 -4.3 0 -9 -1.45
4 16 -3.4441 -8.3148 -1.45 -3.4441 -8.3148 -4.3 -0.9989 -8.8011 -4.3 -0.9989 -8.8011 -1.45
4 16 -3.4441 -8.3148 4.25 -3.4441 -8.3148 1.4 -0.9989 -8.8011 1.4 -0.9989 -8.8011 4.25
1 16 0 0 -0.025 0 -1 0 1 0 0 0 0 1 s\483s01.dat
1 16 0 0 -5.725 0 -1 0 1 0 0 0 0 1 s\483s01.dat
1 16 0 0 5.675 0 -1 0 1 0 0 0 0 1 s\483s01.dat
4 16 0.9989 -8.8011 4.25 0.9989 -8.8011 1.4 3.4442 -8.3149 1.4 3.4442 -8.3149 4.25
4 16 0.9989 -8.8011 -1.45 0.9989 -8.8011 -4.3 3.4442 -8.3149 -4.3 3.4442 -8.3149 -1.45
4 16 0 -9 -1.45 0 -9 -4.3 0.9989 -8.8011 -4.3 0.9989 -8.8011 -1.45
4 16 0 -9 4.25 0 -9 1.4 0.9989 -8.8011 1.4 0.9989 -8.8011 4.25
5 24 0 -9 -1.45 0 -9 -4.3 -0.9989 -8.8011 -4.3 0.9989 -8.8011 -4.3
5 24 0 -9 4.25 0 -9 1.4 -0.9989 -8.8011 1.4 0.9989 -8.8011 1.4
4 16 8.8011 -0.9989 4.25 8.8011 -0.9989 1.4 9 0 1.4 9 0 4.25
4 16 8.8011 -0.9989 -1.45 8.8011 -0.9989 -4.3 9 0 -4.3 9 0 -1.45
4 16 8.3148 -3.4441 -1.45 8.3148 -3.4441 -4.3 8.8011 -0.9989 -4.3 8.8011 -0.9989 -1.45
4 16 8.3148 -3.4441 4.25 8.3148 -3.4441 1.4 8.8011 -0.9989 1.4 8.8011 -0.9989 4.25
1 16 0 0 -0.025 -1 0 0 0 -1 0 0 0 1 s\483s01.dat
1 16 0 0 -5.725 -1 0 0 0 -1 0 0 0 1 s\483s01.dat
1 16 0 0 5.675 -1 0 0 0 -1 0 0 0 1 s\483s01.dat
4 16 8.8011 0.9989 4.25 8.8011 0.9989 1.4 8.3149 3.4442 1.4 8.3149 3.4442 4.25
4 16 8.8011 0.9989 -1.45 8.8011 0.9989 -4.3 8.3149 3.4442 -4.3 8.3149 3.4442 -1.45
4 16 9 0 -1.45 9 0 -4.3 8.8011 0.9989 -4.3 8.8011 0.9989 -1.45
4 16 9 0 4.25 9 0 1.4 8.8011 0.9989 1.4 8.8011 0.9989 4.25
5 24 9 0 -1.45 9 0 -4.3 8.8011 -0.9989 -4.3 8.8011 0.9989 -4.3
5 24 9 0 4.25 9 0 1.4 8.8011 -0.9989 1.4 8.8011 0.9989 1.4
4 16 0.9989 8.8011 4.25 0.9989 8.8011 1.4 0 9 1.4 0 9 4.25
4 16 0.9989 8.8011 -1.45 0.9989 8.8011 -4.3 0 9 -4.3 0 9 -1.45
4 16 3.4441 8.3148 -1.45 3.4441 8.3148 -4.3 0.9989 8.8011 -4.3 0.9989 8.8011 -1.45
4 16 3.4441 8.3148 4.25 3.4441 8.3148 1.4 0.9989 8.8011 1.4 0.9989 8.8011 4.25
1 16 0 0 -0.025 0 1 0 -1 0 0 0 0 1 s\483s01.dat
1 16 0 0 -5.725 0 1 0 -1 0 0 0 0 1 s\483s01.dat
1 16 0 0 5.675 0 1 0 -1 0 0 0 0 1 s\483s01.dat
4 16 -0.9989 8.8011 4.25 -0.9989 8.8011 1.4 -3.4442 8.3149 1.4 -3.4442 8.3149 4.25
4 16 -0.9989 8.8011 -1.45 -0.9989 8.8011 -4.3 -3.4442 8.3149 -4.3 -3.4442 8.3149 -1.45
4 16 0 9 -1.45 0 9 -4.3 -0.9989 8.8011 -4.3 -0.9989 8.8011 -1.45
4 16 0 9 4.25 0 9 1.4 -0.9989 8.8011 1.4 -0.9989 8.8011 4.25
5 24 0 9 -1.45 0 9 -4.3 0.9989 8.8011 -4.3 -0.9989 8.8011 -4.3
5 24 0 9 4.25 0 9 1.4 0.9989 8.8011 1.4 -0.9989 8.8011 1.4
4 16 -8.8011 0.9989 4.25 -8.8011 0.9989 1.4 -9 0 1.4 -9 0 4.25
4 16 -8.8011 0.9989 -1.45 -8.8011 0.9989 -4.3 -9 0 -4.3 -9 0 -1.45
4 16 -8.3148 3.4441 -1.45 -8.3148 3.4441 -4.3 -8.8011 0.9989 -4.3 -8.8011 0.9989 -1.45
4 16 -8.3148 3.4441 4.25 -8.3148 3.4441 1.4 -8.8011 0.9989 1.4 -8.8011 0.9989 4.25
4 16 -8.3155 -3.4443 -10 -8.3149 -3.4442 -7.15 -8.8011 -0.9989 -7.15 -9 0 -10
4 16 -8.3148 3.4441 -7.15 -8.3148 3.4441 -10 -9 0 -10 -8.8011 0.9989 -7.15
3 16 -9 0 -10 -9 0 -7.15 -8.8011 0.9989 -7.15
3 16 -9 0 -7.15 -9 0 -10 -8.8011 -0.9989 -7.15
5 24 -9 0 -7.15 -9 0 -10 -8.8011 -0.9989 -7.15 -8.8011 0.9989 -7.15
4 16 3.4443 -8.3155 -10 3.4442 -8.3149 -7.15 0.9989 -8.8011 -7.15 0 -9 -10
4 16 -3.4441 -8.3148 -7.15 -3.444 -8.316 -10 0 -9 -10 -0.9989 -8.8011 -7.15
3 16 0 -9 -10 0 -9 -7.15 -0.9989 -8.8011 -7.15
3 16 0 -9 -7.15 0 -9 -10 0.9989 -8.8011 -7.15
5 24 0 -9 -7.15 0 -9 -10 0.9989 -8.8011 -7.15 -0.9989 -8.8011 -7.15
4 16 8.3155 3.4443 -10 8.3149 3.4442 -7.15 8.8011 0.9989 -7.15 9 0 -10
4 16 8.3148 -3.4441 -7.15 8.316 -3.444 -10 9 0 -10 8.8011 -0.9989 -7.15
3 16 9 0 -10 9 0 -7.15 8.8011 -0.9989 -7.15
3 16 9 0 -7.15 9 0 -10 8.8011 0.9989 -7.15
5 24 9 0 -7.15 9 0 -10 8.8011 0.9989 -7.15 8.8011 -0.9989 -7.15
4 16 -3.4443 8.3155 -10 -3.4442 8.3149 -7.15 -0.9989 8.8011 -7.15 0 9 -10
4 16 3.4441 8.3148 -7.15 3.444 8.316 -10 0 9 -10 0.9989 8.8011 -7.15
3 16 0 9 -10 0 9 -7.15 0.9989 8.8011 -7.15
3 16 0 9 -7.15 0 9 -10 -0.9989 8.8011 -7.15
5 24 0 9 -7.15 0 9 -10 -0.9989 8.8011 -7.15 0.9989 8.8011 -7.15
1 16 0 0 -10 -8.31492 0 3.44415 -3.44415 0 -8.31492 0 1 0 1-8chrd.dat
3 16 -8.3155 -3.4443 -10 -4 -3.444 -10.001 -3.4441 -8.3148 -10
1 16 0 0 -10 8.31492 0 -3.44415 -3.44415 0 -8.31492 0 1 0 1-8chrd.dat
3 16 0 -9 -10 -3.4441 -8.3148 -10 3.4441 -8.3148 -10
4 16 8.316 -3.444 -10 3.4441 -8.3148 -10 -3.4441 -8.3148 -10 -4 -3.444 -10.001
1 16 0 0 -10 -8.31492 0 3.44415 3.44415 0 8.31492 0 1 0 1-8chrd.dat
1 16 0 0 -10 8.31492 0 -3.44415 3.44415 0 8.31492 0 1 0 1-8chrd.dat
3 16 8.3155 3.4443 -10 4 3.444 -10.001 3.4441 8.3148 -10
3 16 -3.4441 8.3148 -10 0 9 -10 3.4441 8.3148 -10
4 16 -3.4441 8.3148 -10 3.4441 8.3148 -10 4 3.444 -10.001 -8.3148 3.4441 -10
1 16 0 0 10 8.31492 0 -3.44415 -3.44415 0 -8.31492 0 -1 0 1-8chrd.dat
1 16 0 0 10 8.31492 0 -3.44415 -3.44415 0 -8.31492 0 -2.9 0 1-8cylo.dat
2 24 8.3148 -3.4441 10 9 0 10
2 24 0 -9 10 3.4442 -8.3149 10
4 16 8.3148 -3.4441 7.1 8.8011 -0.9989 7.1 9 0 10 8.3148 -3.4441 10
4 16 0 -9 10 0.9989 -8.8011 7.1 3.4441 -8.3148 7.1 3.4441 -8.3148 10
3 16 8.8011 -0.9989 7.1 9 0 7.1 9 0 10
3 16 0 -9 10 0 -9 7.1 0.9989 -8.8011 7.1
5 24 0 -9 10 0 -9 7.1 0.9989 -8.8011 7.1 -0.9989 -8.8011 7.1
4 16 3.4441 -8.3148 10 8.3148 -3.4441 10 9 0 10 0 -9 10
1 16 0 0 10 3.44415 0 8.31492 8.31492 0 -3.44415 0 -1 0 1-8chrd.dat
1 16 0 0 10 3.44415 0 8.31492 8.31492 0 -3.44415 0 -2.9 0 1-8cylo.dat
2 24 3.4441 8.3148 10 0 9 10
2 24 9 0 10 8.3149 3.4442 10
4 16 3.4441 8.3148 7.1 0.9989 8.8011 7.1 0 9 10 3.4441 8.3148 10
4 16 9 0 10 8.8011 0.9989 7.1 8.3148 3.4441 7.1 8.3148 3.4441 10
3 16 0.9989 8.8011 7.1 0 9 7.1 0 9 10
3 16 9 0 10 9 0 7.1 8.8011 0.9989 7.1
5 24 9 0 10 9 0 7.1 8.8011 0.9989 7.1 8.8011 -0.9989 7.1
4 16 8.3148 3.4441 10 3.4441 8.3148 10 0 9 10 9 0 10
1 16 0 0 10 -8.31492 0 3.44415 3.44415 0 8.31492 0 -1 0 1-8chrd.dat
1 16 0 0 10 -8.31492 0 3.44415 3.44415 0 8.31492 0 -2.9 0 1-8cylo.dat
2 24 -8.3148 3.4441 10 -9 0 10
2 24 0 9 10 -3.4442 8.3149 10
4 16 -8.3148 3.4441 7.1 -8.8011 0.9989 7.1 -9 0 10 -8.3148 3.4441 10
4 16 0 9 10 -0.9989 8.8011 7.1 -3.4441 8.3148 7.1 -3.4441 8.3148 10
3 16 -8.8011 0.9989 7.1 -9 0 7.1 -9 0 10
3 16 0 9 10 0 9 7.1 -0.9989 8.8011 7.1
5 24 0 9 10 0 9 7.1 -0.9989 8.8011 7.1 0.9989 8.8011 7.1
4 16 -3.4441 8.3148 10 -8.3148 3.4441 10 -9 0 10 0 9 10
1 16 0 0 10 -3.44415 0 -8.31492 -8.31492 0 3.44415 0 -1 0 1-8chrd.dat
1 16 0 0 10 -3.44415 0 -8.31492 -8.31492 0 3.44415 0 -2.9 0 1-8cylo.dat
2 24 -3.4441 -8.3148 10 0 -9 10
2 24 -9 0 10 -8.3149 -3.4442 10
4 16 -3.4441 -8.3148 7.1 -0.9989 -8.8011 7.1 0 -9 10 -3.4441 -8.3148 10
4 16 -9 0 10 -8.8011 -0.9989 7.1 -8.3148 -3.4441 7.1 -8.3148 -3.4441 10
3 16 -0.9989 -8.8011 7.1 0 -9 7.1 0 -9 10
3 16 -9 0 10 -9 0 7.1 -8.8011 -0.9989 7.1
5 24 -9 0 10 -9 0 7.1 -8.8011 -0.9989 7.1 -8.8011 0.9989 7.1
4 16 -8.3148 -3.4441 10 -3.4441 -8.3148 10 0 -9 10 -9 0 10
4 16 -9 0 10 0 -9 10 9 0 10 0 9 10

Status:

Official

This part has the following warnings

Decimal precision exceeds library recommendation

Line 88: 1 16 0 0 -10 -8.31492 0 3.44415 -3.44415 0 -8.31492 0 1 0 1-8chrd.dat

Line 90: 1 16 0 0 -10 8.31492 0 -3.44415 -3.44415 0 -8.31492 0 1 0 1-8chrd.dat

Line 93: 1 16 0 0 -10 -8.31492 0 3.44415 3.44415 0 8.31492 0 1 0 1-8chrd.dat

Line 94: 1 16 0 0 -10 8.31492 0 -3.44415 3.44415 0 8.31492 0 1 0 1-8chrd.dat

Line 98: 1 16 0 0 10 8.31492 0 -3.44415 -3.44415 0 -8.31492 0 -1 0 1-8chrd.dat

Line 99: 1 16 0 0 10 8.31492 0 -3.44415 -3.44415 0 -8.31492 0 -2.9 0 1-8cylo.dat

Line 108: 1 16 0 0 10 3.44415 0 8.31492 8.31492 0 -3.44415 0 -1 0 1-8chrd.dat

Line 109: 1 16 0 0 10 3.44415 0 8.31492 8.31492 0 -3.44415 0 -2.9 0 1-8cylo.dat

Line 118: 1 16 0 0 10 -8.31492 0 3.44415 3.44415 0 8.31492 0 -1 0 1-8chrd.dat

Line 119: 1 16 0 0 10 -8.31492 0 3.44415 3.44415 0 8.31492 0 -2.9 0 1-8cylo.dat

Line 128: 1 16 0 0 10 -3.44415 0 -8.31492 -8.31492 0 3.44415 0 -1 0 1-8chrd.dat

Line 129: 1 16 0 0 10 -3.44415 0 -8.31492 -8.31492 0 3.44415 0 -2.9 0 1-8cylo.dat
