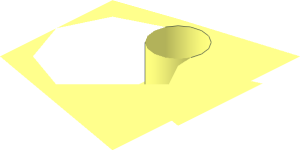

~Corner Stud for Window/Door, Hole for Bump
0 ~Corner Stud for Window/Door, Hole for Bump
0 Name: s\42205s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-01-10 [GeraldLasser] removed stud from subfile due the possible presence of the LEGO Logo
0 !HISTORY 2025-01-20 [OrionP] Official Update 2025-01
Show file code
0 // Area Around Stud
3 16 10 0 10 4.5 0 5 4.5 0 2.5
3 16 6 0 0 0 0 -6 10 0 -10
3 16 10 0 10 6 0 0 10 0 -10
3 16 10 0 10 4.5 0 7.5 4.5 0 5
3 16 0 0 -6 -6 0 -6 10 0 -10
3 16 4.5 0 7.5 10 0 10 2 0 7.5
3 16 2 0 7.5 10 0 10 -.5 0 7.5
3 16 4.5 0 2.5 6 0 0 10 0 10

4 16 -4.2426 0 4.2426 -.30975 0 5.95675 -.5 0 7.5 -6 0 6
3 16 -4.2426 0 4.2426 -6 0 6 -6 0 0
3 16 -4.2426 0 -4.2426 -6 0 0 -6 0 -6
3 16 -4.2426 0 -4.2426 -6 0 -6 0 0 -6
1 16 2 0 5 0 0 -2.5 0 1 0 2.5 0 0 3-16ndis.dat
1 16 2 0 5 0 0 2.5 0 1 0 2.5 0 0 1-4ndis.dat
1 16 2 0 5 2.5 0 0 0 1 0 0 0 -2.5 1-16ndis.dat
1 16 2 0 5 2.309699 0 .956709 0 1 0 -.956709 0 2.309699 2-4edge.dat

0 // Throughhole
0 BFC INVERTNEXT
1 16 2 4 5 2.5 0 0 0 -4 0 0 0 2.5 4-4cyli.dat
1 16 2 4 5 2.5 0 0 0 1 0 0 0 2.5 4-4edge.dat
1 16 2 4 5 2.5 0 0 0 -1 0 0 0 2.5 4-4ndis.dat
4 16 4.5 4 7.5 6 4 10 6 4 1 4.5 4 5
3 16 4.5 4 2.5 4.5 4 5 6 4 1
3 16 6 4 10 4.5 4 7.5 2 4 7.5
3 16 6 4 10 2 4 7.5 -.5 4 7.5
3 16 4.5 4 2.5 6 4 1 2 4 2.5
3 16 2 4 2.5 6 4 1 -.5 4 2.5
