File Detail parts/4353.dat

Official File parts/4353.dat

Part Attributes:

~Electric 4.5V 3 C-Cell Battery Box Polarity Switch 2 x 4 Connector Side

File Header:

0 ~Electric 4.5V 3 C-Cell Battery Box Polarity Switch 2 x 4 Connector Side
0 Name: 4353.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4353s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4353s02.dat

1 16 0 32.7724 -2 0 0 -9.3168 0 -1 0 -2 0 0 rect.dat
1 16 0 0 8 3.5 0 0 0 0 3.5 0 -8 0 4-4cylc.dat
1 16 0 0 0 3.5 0 0 0 0 3.5 0 -1 0 4-4ndis.dat

4 16 9.3168 32.7724 0 -9.3168 32.7724 0 -4 30 0 4 30 0
4 16 -4 18 0 4 18 0 4 24 0 -4 24 0
4 16 -4 24 0 4 24 0 4 30 0 -4 30 0
3 16 0 3.5 0 3.5 3.5 0 4 18 0
4 16 -3.5 3.5 0 0 3.5 0 4 18 0 -4 18 0
3 16 3.5 -3.5 0 0 -3.5 0 4 -18 0
4 16 0 -3.5 0 -3.5 -3.5 0 -4 -18 0 4 -18 0
4 16 4 -18 0 -4 -18 0 -4 -24 0 4 -24 0
4 16 4 -24 0 -4 -24 0 -4 -30 0 4 -30 0
3 16 4 -30 0 -4 -30 0 0 -40 0

1 16 0 -17 -4 20 0 0 0 0 2 0 -12 0 box5.dat
3 16 -20 -19 -4 20 -19 -4 0 -36 -4
4 16 20 -15 -4 -20 -15 -4 -6.5 -3.5 -4 6.5 -3.5 -4
4 16 6.5 0 -4 6.5 -3.5 -4 -6.5 -3.5 -4 -6.5 0 -4
4 16 6.5 0 -4 -6.5 0 -4 -6.5 3.5 -4 6.5 3.5 -4
4 16 9.3168 32.7724 -4 6.5 3.5 -4 -6.5 3.5 -4 -9.3168 32.7724 -4

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Rene Rechthaler [Blechtaler]

initially submitted the part.

2022-12-31 20:20:01

didnt want to open the part, so some internals are guessed.

Orion Pobursky [OrionP]

renamed the part.

2023-03-22 00:28:21

"s\4352s02.dat" to "4353.dat"

Orion Pobursky [OrionP]

submitted a new version of the part.

2023-03-22 00:32:51

Merge changes from u9602

Rene Rechthaler [Blechtaler]

submitted a new version of the part.

2023-10-02 08:54:39

added edges to the base of the plugs (they got changed) and fixed the t-junk at the ndis.
its quite complex now, should I cut it in half and mirror it?

Rene Rechthaler [Blechtaler]

made the following comment.

2023-10-15 12:12:53

just found out why there are these special pins: to fit a type 4 plug (70423.dat) flat on it...
then the pins fit into the holes of the plug and the pins and cables of the plug fit in these recessed pins.

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-04-13 12:36:01

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2024-05-26 11:21:20

* Missing complementaries:

5 31 -21.9168 -30.5624 0 -21.9168 -30.5624 -4 -20 -31.841 -4 -25.4556 -27.4556 -4
5 31 21.9168 -30.5624 0 21.9168 -30.5624 -4 20 -31.841 -4 25.4556 -27.4556 -4

* Split in half?

Willy Tschager [Holly-Wood]

submitted a new version of the part.

2024-08-20 14:25:21

Unrotated plug34 and adjusted the parent parts accordingly

Magnus Forsberg [MagFors]

posted a vote of Hold.

2024-08-20 15:27:50

We need to subfile 1 of the plugs, and reuse it, and the edgelines around thier base, to get correct colour on the edge lines.

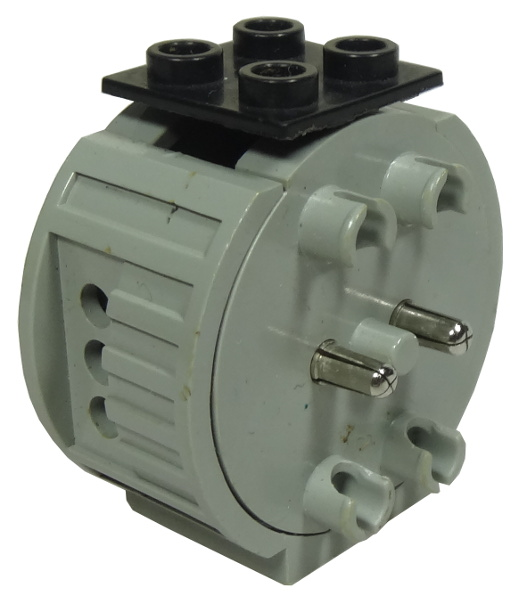

https://img.bricklink.com/ItemImage/PN/9/4352.original.png
Maybe punch a hole in the plastic?

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2024-08-20 16:32:03

please revert the changes, these plugs ARE rotated...
should the internals then also get modeled? should the plugs become another part instead of a subfile?

Rene Rechthaler [Blechtaler]

submitted a new version of the part.

2024-08-30 12:27:46

cut in half and subfiled, made holes for the electric plugs

Magnus Forsberg [MagFors]

posted a vote of Certify.

2024-09-01 07:51:42

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-09-01 11:12:04

Orion Pobursky [OrionP]

posted a vote of Admin Review.
