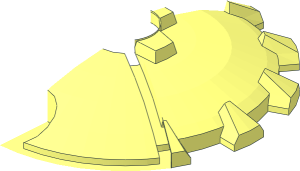

~Constraction Shield 5 x 5 with Circular Grinder Half

File Header:

0 ~Constraction Shield  5 x  5 with Circular Grinder Half
0 Name: s\45275s01.dat
0 Author: Santeri Piippo [arezey]
0 !LDRAW_ORG Subpart UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
