Unofficial File parts/s/46103s01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

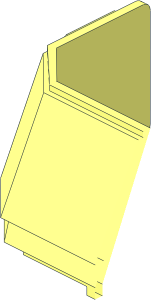

0 ~Glass for Windscreen 4 x 6 x 4 Cab with Hinge - Half
0 Name: s\46103s01.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2017-05-28 [MagFors] Adjusted shape of windows
0 !HISTORY 2026-09-13 [MagFors] Complete rework, original by Joerg SommererShow file code:
0 // side window
2 24 56 56 -31 56 25 -21
2 24 59 25 -21 59 56 -31
2 24 56 25.5 2.5 56 57.5 2.5
2 24 59 57.5 2.5 59 25.5 2.5
2 24 56 24 -19 56 24 1
2 24 59 24 1 59 24 -19
2 24 56 59.25 1 56 59.25 -29.5
2 24 59 59.25 -29.5 59 59.25 1
2 24 56 25 -21 56 24 -19
2 24 59 24 -19 59 25 -21
2 24 56 57.5 2.5 56 59.25 1
2 24 59 59.25 1 59 57.5 2.5
2 24 56 24 1 56 25.5 2.5
2 24 59 25.5 2.5 59 24 1
2 24 59 56 -31 59 58.125 -30.75
2 24 59 58.125 -30.75 59 59.25 -29.5
2 24 56 56 -31 56 58.125 -30.75
2 24 56 58.125 -30.75 56 59.25 -29.5
3 16 59 57.5 2.5 59 56 -31 59 58.125 -30.75
4 16 56 25 -21 56 56 -31 59 56 -31 59 25 -21
4 16 56 57.5 2.5 56 25.5 2.5 59 25.5 2.5 59 57.5 2.5
4 16 56 24 1 56 24 -19 59 24 -19 59 24 1
4 16 56 59.25 -29.5 56 59.25 1 59 59.25 1 59 59.25 -29.5
4 16 56 24 -19 56 25 -21 59 25 -21 59 24 -19
4 16 56 59.25 1 56 57.5 2.5 59 57.5 2.5 59 59.25 1
4 16 56 25.5 2.5 56 24 1 59 24 1 59 25.5 2.5
4 16 59 58.125 -30.75 56 58.125 -30.75 56 59.25 -29.5 59 59.25 -29.5
4 16 59 56 -31 56 56 -31 56 58.125 -30.75 59 58.125 -30.75
4 16 59 56 -31 59 57.5 2.5 59 25.5 2.5 59 25 -21
4 16 59 25.5 2.5 59 24 1 59 24 -19 59 25 -21
4 16 59 57.5 2.5 59 58.125 -30.75 59 59.25 -29.5 59 59.25 1
5 24 56 25 -21 59 25 -21 56 24 -19 56 56 -31
5 24 59 56 -31 56 56 -31 56 25 -21 56 58.125 -30.75
5 24 56 57.5 2.5 59 57.5 2.5 56 25.5 2.5 56 59.25 1
5 24 59 25.5 2.5 56 25.5 2.5 56 24 1 56 57.5 2.5
5 24 56 24 1 59 24 1 56 25.5 2.5 56 24 -19
5 24 59 24 -19 56 24 -19 56 24 1 56 25 -21
5 24 56 59.25 -29.5 59 59.25 -29.5 56 58.125 -30.75 56 59.25 1
5 24 59 59.25 1 56 59.25 1 56 59.25 -29.5 56 57.5 2.5
5 24 56 58.125 -30.75 59 58.125 -30.75 59 56 -31 59 59.25 -29.5
0 // rear end
1 16 56 64 7 0 -1 0 0 0 3 3 0 0 1-4chrd.dat
1 16 53 25 7 0 1 0 0 0 -3 3 0 0 1-4chrd.dat
1 16 56 25 7 0 -1 0 -3 0 0 0 0 3 1-4chrd.dat
1 16 53 64 7 0 1 0 3 0 0 0 0 3 1-4chrd.dat
1 16 56 64 7 0 -3 0 0 0 3 3 0 0 1-4cylo.dat
1 16 56 25 7 0 -3 0 -3 0 0 0 0 3 1-4cylo.dat
1 16 54.5 44.5 10 0 0 1.5 19.5 0 0 0 -1 0 rect2p.dat
4 16 53 22 7 53 25 10 53 64 10 53 67 7
4 16 56 22 7 56 67 7 56 64 10 56 25 10
0 // corner
1 16 54.5 67 -20.5 0 0 -1.5 0 -1 0 27.5 0 0 rect2p.dat
1 16 47.5 23 -38 0 0 -8.5 1 0 0 0 1 -8 rect.dat
1 16 34 67 -64.5 -4 0 0 0 -1 0 0 0 -1.5 rect2p.dat
1 16 16.75 67.5 -64.5 0 13.25 0 0 0 .5 -1.5 0 0 box2-5.dat
2 24 56 22 7 56 22 -30
2 24 39 22 -43 53 22 -29.25
2 24 53 22 7 53 22 -29.25
2 24 38 67 -66 39 59.25 -62.5
2 24 56 59.25 -46 39 59.25 -62.5
2 24 56 59.25 -47.5 39.5 59.25 -64
2 24 56 67 -48 38 67 -66
2 24 38 67 -63 53 67 -48
2 24 38 67 -63 39 22 -43
2 24 53 67 -48 53 22 -29.25
2 24 56 59.25 -47.5 56 24 -31.75
2 24 56 24 -30 56 24 -31.75
2 24 56 59.25 -46 56 67 -48
2 24 56 59.25 -46 56 59.25 -47.5
2 24 56 24 -31.75 39.5 24 -48
2 24 39.5 59.25 -64 39.5 24 -48
3 16 56 22 7 56 24 1 56 25.5 2.5
3 16 56 57.5 2.5 56 59.25 1 56 67 7
3 16 56 58.125 -30.75 56 56 -31 56 59.25 -46
3 16 38 67 -63 30 67 -63 39 22 -43
3 16 38 67 -66 56 67 -48 56 59.25 -46
3 16 56 59.25 -46 39 59.25 -62.5 38 67 -66
3 16 38 67 -66 39 59.25 -62.5 30 67 -66
3 16 30 68 -66 30 67 -66 3.5 68 -66
3 16 30 68 -63 3.5 68 -63 30 67 -63
4 16 56 67 7 56 22 7 56 25.5 2.5 56 57.5 2.5
4 16 56 22 -30 56 24 -19 56 24 1 56 22 7
4 16 56 25 -21 56 24 -19 56 22 -30 56 24 -30
4 16 56 59.25 -46 56 56 -31 56 25 -21 56 24 -30
4 16 56 24 -31.75 56 59.25 -47.5 56 59.25 -46 56 24 -30
4 16 56 59.25 -29.5 56 67 -48 56 67 7 56 59.25 1
4 16 56 67 -48 56 59.25 -29.5 56 58.125 -30.75 56 59.25 -46
4 16 53 22 -29.25 56 22 -30 56 22 7 53 22 7
4 16 39.5 59.25 -64 39 59.25 -62.5 56 59.25 -46 56 59.25 -47.5
4 16 38 67 -66 38 67 -63 53 67 -48 56 67 -48
4 16 39 22 -43 39 22 -46 56 22 -30 53 22 -29.25
4 16 39 24 -46 39.5 24 -48 56 24 -31.75 56 24 -30
4 16 38 67 -63 39 22 -43 53 22 -29.25 53 67 -48
4 16 53 67 7 53 67 -48 53 22 -29.25 53 22 7
4 16 56 24 -31.75 39.5 24 -48 39.5 59.25 -64 56 59.25 -47.5
5 24 56 59.25 -46 38 67 -66 39 59.25 -62.5 56 67 -48Status
Needs 2 More Votes (F)
Current Votes:
No recorded votesPart Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Magnus Forsberg [MagFors]
initially submitted the part.
2017-05-30 18:00:01
Steffen [Steffen]
made the following comment.
2018-02-07 20:50:00
Franklin W. Cain [fwcain]
posted a vote of Certify
2021-10-24 18:10:01
Rene Rechthaler [Blechtaler]
made the following comment.
2025-09-02 16:59:52
should this be edited to avoid the central seam vertices? means remove them here and add rects+faces+lines in the main part...
Magnus Forsberg [MagFors]
submitted a new version of the part (all votes reset).
2026-09-13 21:12:25
Magnus Forsberg [MagFors]
submitted a new version of the part (all votes reset).
2026-09-14 15:14:30
where the window is placed inside something should be submitted to the PT to be able to check the correctness of this file
