Official File parts/s/47299s02.dat

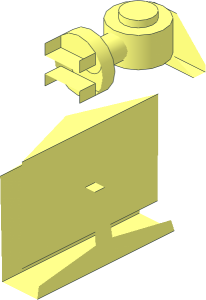

~Constraction Shell 2 x 3 x 1.5 with Peghole - Half
File Header:
0 ~Constraction Shell 2 x 3 x 1.5 with Peghole - Half 0 Name: s\47299s02.dat 0 Author: Magnus Forsberg [MagFors] 0 !LDRAW_ORG Subpart UPDATE 2023-04 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
0 // middle 4 16 13.938 12.712 13.745 13.938 -5 13.897 13.938 -5 -13.897 13.937 12.712 -13.845 4 16 16.955 14.575 13.475 16.955 14.575 -13.475 17.147 16.463 -13.983 17.147 16.463 13.983 4 16 16.762 12.712 1.722 16.762 12.712 -1.722 16.955 14.575 -13.475 16.955 14.575 13.475 4 16 10 -1.25 -14.389 10 -1.25 14.389 10 16.463 13.983 10 16.463 -13.983 4 16 17.147 16.463 13.983 17.147 16.463 -13.983 10 16.463 -13.983 10 16.463 13.983 3 16 13.938 -5 -13.897 13.938 -5 13.897 9 -5 0 3 16 10 -1.25 -14.389 9 -1.25 0 10 -1.25 14.389 4 16 13.938 4.462 1 13.938 4.462 -1 15.915 4.462 -1 15.915 4.462 1 4 16 16.762 12.712 -1.722 16.762 12.712 1.722 15.915 4.462 1 15.915 4.462 -1 2 24 13.938 -5 13.897 13.938 -5 -13.897 2 24 17.147 16.463 -13.983 17.147 16.463 13.983 2 24 10 16.463 13.983 10 16.463 -13.983 2 24 10 -1.25 -14.389 10 -1.25 14.389 2 24 13.938 12.712 13.745 13.937 12.712 -13.845 2 24 13.938 4.462 1 13.938 4.462 -1 2 24 15.915 4.462 -1 15.915 4.462 1 0 // side 1 16 0 -9.125 23.775 0 0 -2.875 0 1.25 0 2.875 0 0 4-4cylc.dat 1 16 0 -7.875 23.775 0 0 -5 0 5.75 0 5 0 0 4-4cylc.dat 0 BFC INVERTNEXT 1 16 0 -5.125 23.775 0 0 -2.5 0 3 0 2.5 0 0 4-4cylc.dat 1 16 0 -2.125 23.775 0 0 -2.5 0 -1 0 2.5 0 0 4-4ring1.dat 1 16 0 -5 14 0 0 5 5 0 0 0 -1 0 4-4disc.dat 1 16 0 -5 14 0 0 5 5 0 0 0 -1 0 4-4edge.dat 1 16 0 -5 14 0 0 5 5 0 0 0 -2.5 0 4-4cyli.dat 1 16 0 -5 11.5 3.535534 0 -3.535534 -3.535534 0 -3.535534 0 1 0 1-4chrd.dat 1 16 0 -5 11.5 3.535534 0 -3.535534 -3.535534 0 -3.535534 0 -1 0 1-4edge.dat 0 BFC INVERTNEXT 1 16 0 -8.5355 9.877 3.5355 0 0 0 2 0 0 0 1.62295 box4-3p.dat 1 16 0 -5 11.5 -3.535534 0 3.535534 3.535534 0 3.535534 0 1 0 1-4chrd.dat 1 16 0 -5 11.5 -3.535534 0 3.535534 3.535534 0 3.535534 0 -1 0 1-4edge.dat 0 BFC INVERTNEXT 1 16 0 -1.4645 9.877 -3.5355 0 0 0 -2 0 0 0 1.62295 box4-3p.dat 1 16 0 -5 14 0 0 2.25 2.25 0 0 0 6 0 4-4cyli.dat 1 16 0 -5 14 0 0 2.25 2.25 0 0 0 1 0 4-4edge.dat 4 16 8.188 0 26.871 -8.188 0 26.871 -8.188 0 29.25 8.188 0 29.25 4 16 -8.188 0 26.871 8.188 0 26.871 3.8307 -2.125 26.8688 -3.8307 -2.125 26.8688 3 16 2.349 -7.341 29.25 -2.349 -7.341 29.25 0 -7.418 28.775 4 16 8.188 0 29.25 -8.188 0 29.25 -8.188 -1.25 29.25 8.188 -1.25 29.25 4 16 8.188 -1.25 29.25 -8.188 -1.25 29.25 -2.349 -7.341 29.25 2.349 -7.341 29.25 2 24 -8.188 0 29.25 8.188 0 29.25 2 24 8.188 0 26.871 -8.188 0 26.871 2 24 3.8307 -2.125 26.8688 -3.8307 -2.125 26.8688 2 24 2.349 -7.341 29.25 -2.349 -7.341 29.25
Status:
Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 -5 11.5 3.535534 0 -3.535534 -3.535534 0 -3.535534 0 1 0 1-4chrd.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 -5 11.5 3.535534 0 -3.535534 -3.535534 0 -3.535534 0 -1 0 1-4edge.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 -5 11.5 -3.535534 0 3.535534 3.535534 0 3.535534 0 1 0 1-4chrd.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 -5 11.5 -3.535534 0 3.535534 3.535534 0 3.535534 0 -1 0 1-4edge.dat
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 0 -8.5355 9.877 3.5355 0 0 0 2 0 0 0 1.62295 box4-3p.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 0 -1.4645 9.877 -3.5355 0 0 0 -2 0 0 0 1.62295 box4-3p.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0

Edits:
LDraw.org Parts Tracker, Orion Pobursky,
