File Detail parts/s/47311s02.dat

Unofficial File parts/s/47311s02.dat

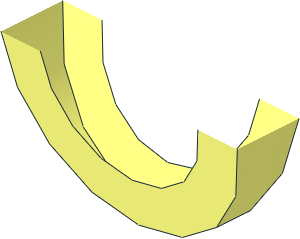

~Constraction Limb 5 Lower Section with 2 Ball Joints and Pinhole - Truncated Curved Wedge

File Header:

0 ~Constraction Limb  5 Lower Section with 2 Ball Joints and Pinhole - Truncated Curved Wedge
0 Name: s\47311s02.dat
0 Author: Max Murtazin [SwampKryakwa]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 4.7 9 0 0 0 0 9 0 1 -1.5 2-4edge.dat
1 16 0 0 4.7 3 0 0 0 0 3 0 -1 -.5 2-4ring2.dat
1 16 0 0 4.7 6 0 0 0 0 6 0 1 -1 2-4edge.dat
1 16 0 0 3.2 0 0 -9 9 0 0 0 1.5 0 1-4cyls.dat
1 16 0 0 3.2 0 0 9 9 0 0 0 1.5 0 1-4cyls.dat
1 16 0 0 3.2 9 0 0 0 0 9 0 -1.7 0 2-4cyli.dat
1 16 0 0 1.5 0 0 -9 9 0 0 0 -1.5 0 1-4cyls.dat
1 16 0 0 1.5 0 0 9 9 0 0 0 -1.5 0 1-4cyls.dat
1 16 0 0 0 9 0 0 0 0 9 0 1 1.5 2-4edge.dat
1 16 0 0 0 3 0 0 0 0 3 0 1 .5 2-4ring2.dat
1 16 0 0 0 6 0 0 0 0 6 0 1 1 2-4edge.dat

Status:

Needs More Votes (CN)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

User	Vote
Holly-Wood	Certify

Official parents and subparts

Part Events:

Max Murtazin [SwampKryakwa]

initially submitted the part.

2022-03-18 15:30:02

Subpart for 47311

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2022-04-02 09:45:01

* Flat prim scaled in y direction

* We don't have a specific rule for but the description should be:

Technic Bionicle Toa Metru Arm Lower Section with 2 Ball Joint - Curved Wedge Half

* Some spacing above and below the BFC command wouldn't hurt to structure the header a little bit. See examples in:

https://www.ldraw.org/article/398.html

Max Murtazin [SwampKryakwa]

submitted a new version of the part.

2022-04-16 15:05:02

Fixed flat primitive Y scaling, removed unnecessary comments, changed description to match the standards

Existing certification-votes were deleted.

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2022-04-16 21:10:01

Line 11: subfile unnecessarily scaled in the y dimension (x = 9.0, y = 2.9, z = 9.0)
1 16 0 0 4.1 9 0 0 0 0 9 0 -2.9 0 2-4edge.dat

Max Murtazin [SwampKryakwa]

submitted a new version of the part.

2022-07-10 20:55:01

Fixed edge bleeding, old s02 not used anymore, s03 renumerated to s02

Existing certification-votes were deleted.
