Official File parts/s/50015s01.dat
File Header:

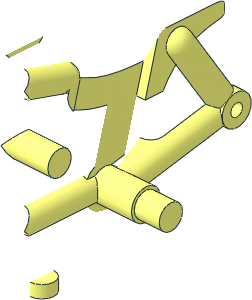

0 ~Tricycle Frame, Half
0 Name: s\50015s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP place rear wheel 92851.dat at 0 48 68
0 BFC CERTIFY CCW
0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02
