Official File parts/s/50335s01.dat
File Header:

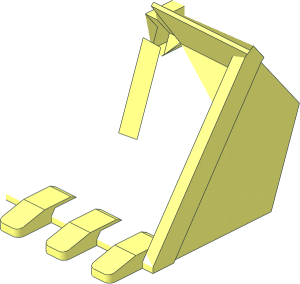

0 ~Excavator Bucket 6 x 3 Reinforced with Click Hinge 2-Finger - Half
0 Name: s\50335s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
4 16 59 0.755 -10.753 59 -18.985 -26.225 59 30 -59.6 59 30 -21.5
4 16 60 -22.6777 -32.5628 60 28.095 -67.5 60 30 -59.6 60 -18.985 -26.225
3 16 60 30 -67.5 60 30 -59.6 60 28.095 -67.5
4 16 56 1.102 -15.5317 56 26 -24.5557 56 26 -66.0648 56 -21.8251 -33.1499
2 24 59 30 -59.6 59 30 -21.5
2 24 59 30 -21.5 59 0.755 -10.753
2 24 56 26 -66.0648 56 -21.8251 -33.1499
2 24 56 1.102 -15.5317 56 26 -24.5557
2 24 60 30 -67.5 60 30 -59.6
2 24 56 26 -24.5557 56 26 -66.0648
2 24 59 -18.985 -26.225 59 30 -59.6
2 24 60 30 -59.6 60 -18.985 -26.225
2 24 59 0.755 -10.753 59 -18.985 -26.225
2 24 60 -22.6777 -32.5628 60 28.095 -67.5
2 24 56 -21.8251 -33.1499 56 1.102 -15.5317
4 16 56 -21.8251 -33.1499 56 26 -66.0648 60 28.095 -67.5 60 -22.6777 -32.5628
3 16 60 30 -67.5 59 30 -59.6 60 30 -59.6
2 24 59 30 -59.6 60 30 -59.6
1 16 17.3333 30 -66 1 0 0 0 1 0 0 0 1 s\30394s02.dat
1 16 34.6667 30 -66 1 0 0 0 1 0 0 0 1 s\30394s02.dat
1 16 52 30 -66 1 0 0 0 1 0 0 0 1 s\30394s02.dat
1 16 58 29.0475 -67.5 0 0 2 0.9525 0 0 0 1 0 rect2a.dat
1 16 43.3334 29.0475 -67.5 0 0 4.66665 0.9525 0 0 0 1 0 rect1.dat
1 16 26 29.0475 -67.5 0 0 4.6667 0.9525 0 0 0 1 0 rect1.dat
1 16 8.6667 29.0475 -67.5 0 0 4.66665 0.9525 0 0 0 1 0 rect1.dat
2 24 4 6 -4 4 6 -11.896
1 16 6.25 -6 -9.2124 -2.25 0 0 0 1 0 0 0 -5.21235 rect3.dat
4 16 4 -6 -14.4247 4 -6 -4 4 6 -4 4 6 -11.896
2 24 59 0.755 -10.753 13.9164 0.748 -10.7091
3 16 13.9164 0.748 -10.7091 59 0.755 -10.753 59 30 -21.5
2 24 60 -24.987 -29.296 60 -22.6777 -32.5628
2 24 60 -18.985 -26.225 60 -19.751 -25.237
2 24 60 -19.751 -25.237 60 -24.987 -29.296
4 16 60 -19.751 -25.237 60 -24.987 -29.296 60 -22.6777 -32.5628 60 -18.985 -26.225
5 24 59 -18.985 -26.225 60 -18.985 -26.225 60 -19.751 -25.237 59 30 -59.6
3 16 59 -18.985 -26.225 60 -19.751 -25.237 60 -18.985 -26.225
4 16 59 30 -59.6 59 -18.985 -26.225 60 -18.985 -26.225 60 30 -59.6
1 16 15.9582 -9.5015 -17.9731 2.0418 -1 0 -9.8665 0 0.383 -7.75795 0 -0.494 rect.dat
2 24 13.9164 -0.018 -9.7211 8.5 6 -11.896
3 16 8.5 6 -11.896 13.9164 0.748 -10.7091 8.5 6 -12.6465
3 16 13.9164 -0.018 -9.7211 13.9164 0.748 -10.7091 8.5 6 -11.896
4 16 8.5 6 -4 8.5 6 -12.6465 4 6 -11.896 4 6 -4
2 24 8.5 6 -4 8.5 6 -12.6465
2 24 8.5 -0.018 -9.7211 8.5 6 -11.896
2 24 13.9164 0.748 -10.7091 8.5 6 -12.6465
2 24 8.5 -0.018 -9.7211 13.9164 -0.018 -9.7211
3 16 8.5 -0.018 -9.7211 13.9164 -0.018 -9.7211 8.5 6 -11.896
3 16 8.5 -0.018 -9.7211 8.5 6 -11.896 8.5 6 -4
4 16 8.5 6 -4 8.5 -6 -4 8.5 -6 -14.4247 8.5 -0.018 -9.7211
2 24 8.5 -6 -14.4247 8.5 -0.018 -9.7211
4 16 8.5 -0.018 -9.7211 8.5 -6 -14.4247 18 -19.751 -25.237 13.9164 -0.018 -9.7211
4 16 60 -19.751 -25.237 59 -18.985 -26.225 18 -18.985 -26.225 18 -19.751 -25.237
4 16 18 -18.985 -26.225 59 -18.985 -26.225 59 0.755 -10.753 13.9164 0.748 -10.7091
2 24 59 -18.985 -26.225 18 -18.985 -26.225
2 24 60 -19.751 -25.237 18 -19.751 -25.237
3 16 60 -24.987 -29.296 60 -19.751 -25.237 18 -19.751 -25.237
2 24 4 -0.018 -9.7211 4 6 -11.896
2 24 4 -6 -14.4247 4 -0.018 -9.7211
2 24 11 1.102 -15.5317 11 26 -24.5557
2 24 5 0.2177 -16.2112 5 26 -25.5557
4 16 11 1.102 -15.5317 5 0.2177 -16.2112 5 26 -25.5557 11 26 -24.5557
2 24 5 26 -25.5557 11 26 -24.5557
2 24 5 0.2177 -16.2112 11 1.102 -15.5317
5 24 13.9164 0.748 -10.7091 8.5 6 -11.896 13.9164 -0.018 -9.7211 8.5 6 -12.6465
Status:
Official
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 43.3334 29.0475 -67.5 0 0 4.66665 0.9525 0 0 0 1 0 rect1.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 8.6667 29.0475 -67.5 0 0 4.66665 0.9525 0 0 0 1 0 rect1.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 6.25 -6 -9.2124 -2.25 0 0 0 1 0 0 0 -5.21235 rect3.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 15.9582 -9.5015 -17.9731 2.0418 -1 0 -9.8665 0 0.383 -7.75795 0 -0.494 rect.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
