File Detail parts/s/50820s01.dat

Official File parts/s/50820s01.dat

File Header:

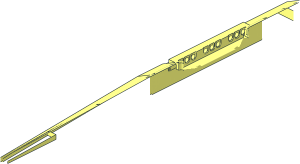

0 ~Boat Hull 48 x  6 x  5 Top - Half
0 Name: s\50820s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\50820s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\50820s02.dat

0 // Centre Peghole - and Technic Beam Underside
1 16 -36 10 0 0 12 0 0 0 8 8 0 0 2-4cylo.dat
1 16 -24 10 0 0 1 0 0 0 8 8 0 0 2-4ndis.dat
1 16 -36 10 0 0 -1 0 0 0 8 8 0 0 2-4ndis.dat
1 16 -40 10 0 0 1 0 0 0 8 8 0 0 4-4ndis.dat
1 16 -40 10 0 0 1 0 0 0 1 1 0 0 peghole.dat
0 BFC INVERTNEXT
1 16 -38 10 0 0 16 0 0 0 6 6 0 0 4-4cyli.dat
1 16 -20 10 0 0 -1 0 0 0 1 1 0 0 peghole5.dat
1 16 -20 10 0 0 -1 0 0 0 8 8 0 0 2-4ndis.dat
1 16 -30 7 -8 -6 0 0 0 0 -3 0 1 0 rect3.dat
1 16 -30 7 8 -6 0 0 0 0 -3 0 -1 0 rect3.dat

3 16 -24 28 -104 -24 18 0 -24 28 104
3 16 -36 28 -124 -36 28 124 -36 18 0
2 24 -24 28 -104 -24 28 104
1 16 -46 28 0 -10 0 0 0 -1 0 0 0 -124 rect.dat

0 // Pocket
4 16 -6 28 -54 -6 28 54 0 28 54 0 28 -54

4 16 -6 28 54 -6 28 -54 -24 28 -104 -24 28 104
4 16 -6 24 54 -6 24 -54 0 24 -54 0 24 54
4 16 -6 24 -54 -6 24 54 -20 24 100 -20 24 -100
2 24 -20 24 100 -20 24 -100
3 16 -20 24 100 -20 18 0 -20 24 -100

0 // Technic Beam Outside
4 16 -40 0 -120 -22 0 -8 -22 0 8 -40 0 120
2 24 -40 0 120 -40 0 -120
3 16 -40 2 0 -40 0 -120 -40 0 120
3 16 -40 18 0 -40 24 120 -40 24 -120
1 16 -50 24 0 -10 0 0 0 1 0 0 0 -120 rect.dat

0 // Box
4 16 -40 28 -124 -40 28 124 -40 68 180 -40 68 -180
4 16 -40 68 -180 -40 68 180 -37 68 177 -37 68 -177
4 16 -37 28 124 -37 28 -124 -37 68 -177 -37 68 177
2 24 -37 68 177 -37 68 -177
2 24 -40 68 180 -40 68 -180
2 24 -40 28 124 -40 28 -124
2 24 -37 28 124 -37 28 -124

0 // Aft and Centre Section
4 16 -36 12.4721 124 -56 22.4721 124 -56 22.4721 276 -19.0557 4 276
3 16 -19.0557 4 276 -19.0557 4 117 -36 12.4721 124
4 16 -56 22.4721 276 -56 22.4721 124 -56 28 124 -56 32 276
4 16 -56 32 276 -56 28 124 -56 28 -124 -56 32 -199.8336
2 24 -56 22.4721 124 -56 22.4721 276
2 24 -19.0557 4 117 -19.0557 4 276
2 24 -19.0557 4 276 -56 22.4721 276
3 16 -19.0557 4 -117 -19.0557 4 -199.8336 -36 12.4721 -124
4 16 -36 12.4721 -124 -19.0557 4 -199.8336 -56 22.4721 -199.8336 -56 22.4721 -124
4 16 -56 22.4721 -199.8336 -56 32 -199.8336 -56 28 -124 -56 22.4721 -124
2 24 -56 22.4721 -199.8336 -56 22.4721 -124
2 24 -19.0557 4 -199.8336 -19.0557 4 -117
2 24 -19.0557 4 -199.8336 -56 22.4721 -199.8336
2 24 -56 32 -199.8336 -56 32 276
2 24 -56 22.4721 -199.8336 -56 32 -199.8336

4 16 -60 32 280 -56 32 276 -56 32 -199.8336 -60 32 -200
2 24 -60 32 -200 -60 32 280

0 // Aft and Centre Fillet
3 16 -56 30 241 -56 22.4721 241 -19.0557 4 241
4 16 -19.0557 4 241 -1 4 241 -1 30 241 -56 30 241
3 16 -56 30 239 -56 30 241 -1 30 241
2 24 -56 22.4721 239 -19.0557 4 239
2 24 -56 22.4721 239 -56 30 239
2 24 -19.0557 4 241 -56 22.4721 241
2 24 -56 30 241 -56 22.4721 241
2 24 -56 30 239 -56 30 241
2 24 -56 30 241 -1 30 241
2 24 -19.0557 4 241 -1 4 241

1 16 -48 28 0 8 0 0 0 2 0 0 0 1 box3u2p.dat

0 // Bow and Fillets
3 16 -19.0557 4 -199.8336 -19.3313 22.4721 -643.248 -56 22.4721 -199.8336
2 24 -16.6228 23.8368 -676 -19.3313 22.4721 -643.248
2 24 -19.3313 22.4721 -643.248 -19.0557 4 -199.8336
2 24 -19.3313 22.4721 -643.248 -56 22.4721 -199.8336

3 16 -16.6228 23.8368 -676 -16.6228 32 -676 -19.3313 22.4721 -643.248
4 16 -56 32 -199.8336 -56 22.4721 -199.8336 -19.3313 22.4721 -643.248 -16.6228 32 -676
2 24 -16.6228 32 -676 -56 32 -199.8336

4 16 -60 32 -200 -56 32 -199.8336 -16.6228 32 -676 -20 32 -680

2 24 -55.9035 22.4721 -201 -19.0564 4.0486 -201
2 24 -55.9035 30 -201 -55.9035 22.4721 -201
2 24 -56 22.4721 -199 -19.0557 4 -199
2 24 -56 22.4721 -199 -56 30 -199
2 24 -56 30 -199.8336 -55.9035 30 -201
2 24 -56 30 -199.8336 -56 30 -199

2 24 -42.8375 22.4721 -359 -19.1546 10.6307 -359
2 24 -42.6721 22.4721 -361 -19.1559 10.714 -361
2 24 -42.8375 30 -359 -42.8375 22.4721 -359
2 24 -42.6721 30 -361 -42.6721 22.4721 -361
2 24 -42.8375 30 -359 -42.6721 30 -361

3 16 -29.4407 22.4721 -521 -29.4407 30 -521 -19.2553 17.3794 -521
4 16 -29.4407 30 -521 -1 30 -521 -1 17.3785 -521 -19.2553 17.3794 -521
4 16 -1 23.8368 -676 -1 17.3785 -521 -1 30 -521 -1 30 -676
3 16 -29.4407 30 -521 -29.6061 30 -519 -1 30 -521
2 24 -1 17.3785 -521 -19.2553 17.3794 -521
2 24 -19.2541 17.2961 -519 -29.6061 22.4721 -519
2 24 -29.4407 22.4721 -521 -19.2553 17.3794 -521
2 24 -29.6061 22.4721 -519 -29.6061 30 -519
2 24 -29.4407 30 -521 -29.4407 22.4721 -521
2 24 -29.6061 30 -519 -29.4407 30 -521
2 24 -1 23.8368 -676 -1 17.3785 -521
2 24 -1 30 -521 -1 17.3785 -521
2 24 -1 23.8368 -676 -1 30 -676
2 24 -29.4407 30 -521 -1 30 -521
2 24 -1 30 -521 -1 30 -676

0 // Outside
4 16 -60 32 -200 -60 20 -200 -60 20 -120 -60 24 -120
4 16 -60 32 -200 -60 24 -120 -60 24 120 -60 32 280
4 16 -60 32 280 -60 24 120 -60 20 120 -60 20 280
1 16 -40 26 -440 0 1 -20 -6 0 0 0 0 240 rect3.dat

4 16 -60 20 280 -60 20 120 -40 10 120 -20 0 280
3 16 -40 10 120 -20 0 120 -20 0 280
3 16 -20 0 -200 -20 0 -120 -40 10 -120
4 16 -60 20 -120 -60 20 -200 -20 0 -200 -40 10 -120
2 24 -60 20 280 -60 20 120
2 24 -60 20 -200 -60 20 -120
2 24 -20 0 280 -60 20 280
2 24 -20 0 -200 -60 20 -200

3 16 -20 0 -200 -60 20 -200 -20 20 -680

Status:

Official
